3 Ton Electric Chain Hoist Mni Crane 220V 1m/Min Lifting
3 Ton Electric Chain Hoist Mni Crane 220V 1m/Min Lifting
Specifications
Brand Name :
SEAGULL
Model Number :
HHXG2
Certification :
CE
Place of Origin :
China,Jiangsu
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 sets per year
Delivery Time :
30 days
Packaging Details :
carton and pallet
Condition :
New
Usage :
Construction Hoist
Power Source :
Electric
Sling Type :
Chain
Maximum Lifting Weight :
5t
Maximum Lifting Height :
12m
Warranty :
One Year
Color :
Optional
Description

3ton / 3 Tonne / 3t Electric Chain Hoist , Electric Mni Crane 220 V

HHXG Electric Chain Hoist

Capacity:0.5-5ton
Lifting speed:1m/min-6.3m/min
Voltage:110-440V
Frequence:50/60Hz

3 Ton Electric Chain Hoist Mni Crane 220V 1m/Min Lifting

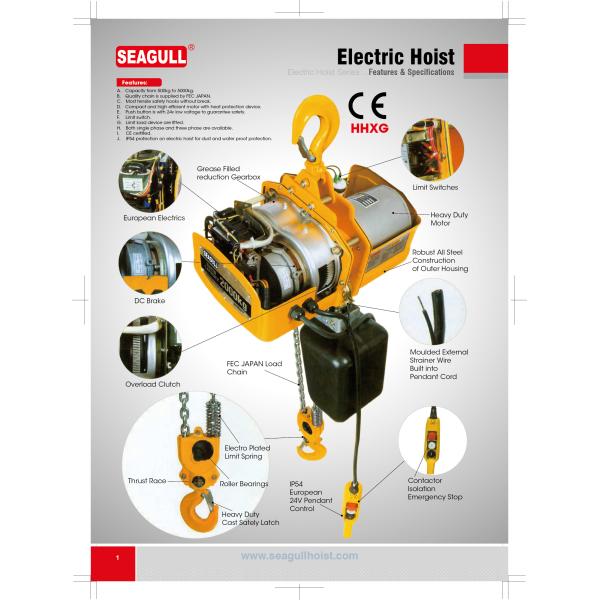

Feafures:
A. Capacity from 500kg to5000kg
B. Quality chain is supplied by FEC JAPAN.
C. Most tensile safety hooks without break.
D. Compact and high efficient motor with heat protection device.
E. Push button is with 24v low voltage to guarantee safety.
F. Limit switch.
G. Limit load device are fitted.
H. CE certified.
I. IP54 protection on electric hoist for dust and water proof protection.

Technical Parameters & Specifications:

HHXG2 SUSPENDED TYPE SINGLE PHASE

ELECTRIC CHAIN HOIST
Model HHXG205 HHXG210 HHXG220 HHXG230 HHXG250
Rated Load(Ton) 0.5 1 2 3 5
Lift(m) 3 3 3 3 3
Lifting Speed(m/min) 5.2 5.2 2.6 1.7 1
Hoist Motor Output(kw) 0.8 1.2 1.2 1.2 1.2
1-phase Ins Class F F F F F
%ED 40 40 40 40 40
Load Dia(mm) 7.1 7.1 7.1 7.1 7.1
Chain Number of falls 1 1 2 3 5
Dynamical Test(KN) 5.5 11 22 33 55
Min. Headroom 545 580 740 790 950
MaxG(mm)
Net Weight 64 65 72 80 135
(kg)

HHXG3 SUSPENDED TYPE THREE PHASE

ELECTRIC CHAIN HOIST
Model HHXG305 HHXG310 HHXG320 HHXG330 HHXG350
Rated Load(Ton) 0.5 1 2 3 5
Lift(m) 3 3 3 3 3
Lifting Speed(m/min) 6.3 6.3 3.2 2.1 1.3
Hoist Motor Output(kw) 0.8 1.6 1.6 1.6 1.6
3-phase Ins Class F F F F F
%ED 40 40 40 40 40
Load Dia(mm) 7.1 7.1 7.1 7.1 7.1
Chain Number of falls 1 1 2 3 5
Dynamical Test(KN) 5.5 11 22 33 55
Min. Headroom 545 580 740 790 950
MaxG(mm)
Net Weight 64 65 72 80 135
(kg)

HHXG3 DOUBLE SPEED SUSPENDED TYPE THREE PHASE

ELECTRIC CHAIN HOIST
Model HHXG305B HHXG310B HHXG320B HHXG330B HHXG350B
Rated Load(Ton) 0.5 1 2 3 5
Lift(m) 3 3 3 3 3
Lifting Speed(m/min) 5.2/1.7 5.2/1.7 2.6/0.85 1.7/0.58 1.0/0.35
Hoist Motor Output(kw) 0.8/0.25 1.2/0.4 1.2/0.4 1.2/0.4 1.2/0.4
1-phase Ins Class F F F F F
%ED 40 40 40 40 40
Load Dia(mm) 7.1 7.1 7.1 7.1 7.1
Chain Number of falls 1 1 2 3 5
Dynamical Test(KN) 5.5 11 22 33 55
Min. Headroom 545 580 740 790 950
MaxG(mm)
Net Weight 64 65 72 80 135
(kg)
