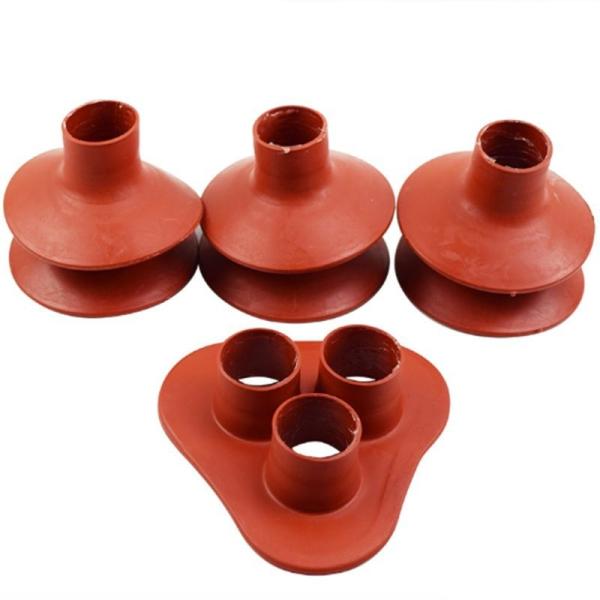

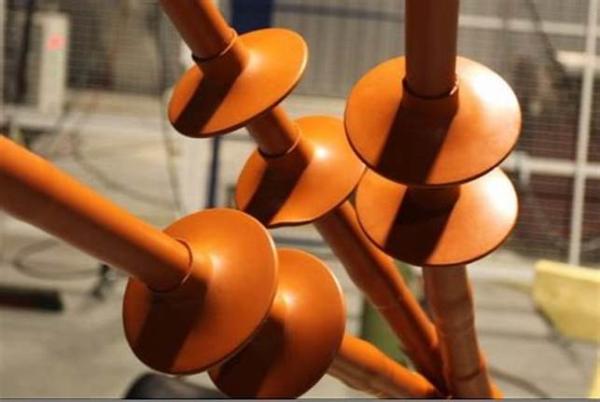

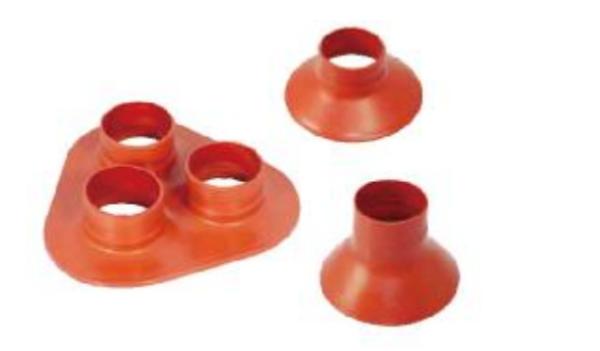

Heat Shrink Anti-tracking Rain Shed RoHS compliant
Heat Shrink Anti-tracking Rain Shed RoHS compliant
Heat Shrink Anti-tracking Rain Shed RoHS compliant
Heat Shrink Anti-tracking Rain Shed RoHS compliant
Heat Shrink Anti-tracking Rain Shed RoHS compliant
Heat Shrink Anti-tracking Rain Shed RoHS compliant
Specifications
Brand Name :
KORE
Model Number :
KR-WRSSQ
Certification :
ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1 piece
Price :
USD 0.1/pcs
Payment Terms :
T/T
Supply Ability :
10000pcs / day
Delivery Time :
1-7 days
Packaging Details :
Bag
Material :
Polyolefin
Insulator Type :
Heat Shrink Anti-Tracking Rain Shed
Mix Order :
Yes
Origin :
CN(Origin)
Custom Pack :
Can Do
Lead Time :
3-7Days
Support :
Dropshipping
Environmental Standards :
RoHS
Description

Heat Shrink Anti-tracking Rain Shed RoHS compliant

Product Description:

Manufactured from polyolefin, coated with anti-tracking adhesive.

Features:

• Manufactured from polyolefin, coated with anti-tracking adhesive.

• High creep resistance and anti-tracking property

• Shaped components to meet a range of requirements

Applications:

Used to Sealing and protecting the critical connection between lead wire and anode

Technical Parameters:

Property Test Method Standard Value
Cold Bend ASTM-D-2671 No cracking
Tensile Strengtt ASTM-D-638 ≥8MPa
Elongation at Break ASTM-D-638 ≥300%
Tensile Strength after Aging ASTM-D-638 ≥6MPa(130℃,168 hrs)
Elongation at Break after Aging ACTM-D-638 ≥240%(130℃,168 hrs)
Dielectric Strengt IEC 60243 ≥20kV/mm
Tracking Resistance IEC 60587 1A 3.5
Volume Resistivity EC 60093 ≥1×10^14Ω·cm
Dielectric Constant IEC 60250 ≤5.0
Water Absorption SO 62 ≤0.5%
Fccentricity ASTM-D-2671 ≤35%

Select Table:

1-core Rain Shed

Product No As Supplied
d(Min)(±3)/mm		 After Recovered
d/mm(Max)		 D/mm W/mm(±0.2)
WRSSQ-35/17 35 17 105 2.8
WRSSQ-40/24 40 24 105 2.6
WRSSQ-50/24 50 24 105 2.6
WRSSQ-60/32 60 32 140 4
WRSSQ-70/32 70 32 140 4
WRSSQ-80/32 80 32 140 4

3-core Rain Shed

Product No As Supplied
d(Min)(±3)/mm		 After Recovered
d/mm(Max)		 W/mm(±0.2)
WRSSQ-35/15 35 16 2.8
WRSSQ-45/21 45 22 3
WRSSQ-50/21 50 22 3

Heat Shrink Anti-tracking Rain Shed RoHS compliant

Customization:

Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
For more customization details, message supplier
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China

FAQ:

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
