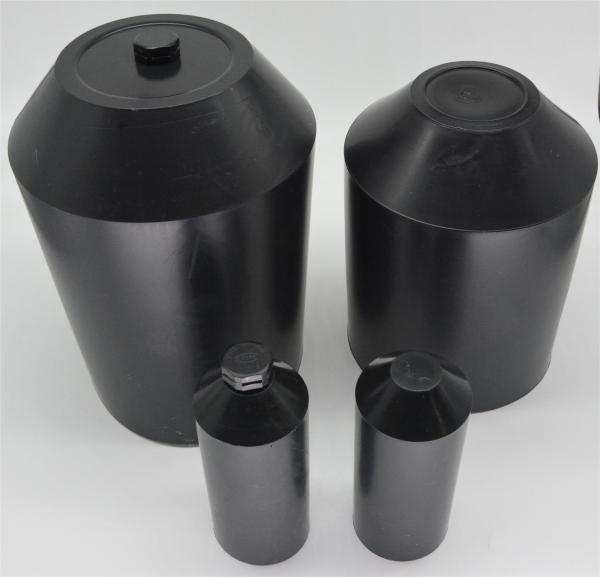

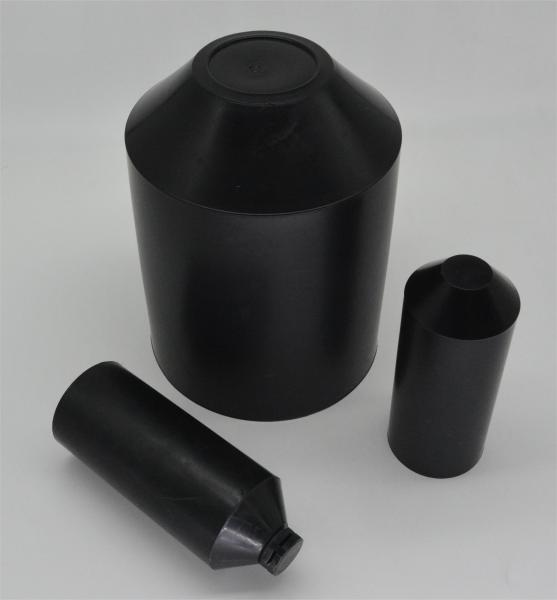

Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps
Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps
Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps
Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps
Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps
Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps
Specifications
Brand Name :
LOGN
Model Number :
WRSFM
Certification :
ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1 piece
Price :
USD 0.1/pcs
Payment Terms :
T/T
Supply Ability :
10000pcs / day
Delivery Time :
1-7 days
Packaging Details :
Bag
Material :
Cross Linked Polyolefin
Insulator Type :
Heat Shrink Cable End Caps
Mix Order :
Yes
Origin :
CN(Origin)
Custom Pack :
Can Do
Lead Time :
3-7Days
Support :
Dropshipping
Environmental Standards :
RoHS
Product Name :
End Caps
Description

Anti-UV RoHS Insulated Heat Shrinkable Cable End Caps Flame-retardant Wire End Caps

Product Description:

Heat shrink cable end caps manufactured from polyolefin,applied as insulation of power and telecommunication cable ends.

Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps

Features:

• Manufactured from cross-linked polyolefin

• Used to seal cable ends during installation or storage, protecting cable ends against oxidation,ozone,UV,etc


• Coated with hot-melt adhesive to ensure reliable seal of cable ends


• Flame-retardant end caps are available upon customer request ,Available with valve if required


• Shrink temperature: start at 90°C, and fully recovered at 130°C.

Applications:

Used to seal cable ends during installation or storage, protecting cable ends against oxidation,ozone,UV,et

Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps

Technical Parameters:

Property Test Method Standard Value
Tensile Strength ASTM-D-638 ≥12MPa
Elongation at Break ASTM-D-638 ≥300%
Tensile Strength after Aging ASTM-D-638 ≥10MPa(130℃,168 hrs)
Elongation at Break after Aging ASTM-D-638 230%(130℃,168 hrs)
Dielectric Strength IEC 60243 ≥15 kV/mm
Volume Resistivity IEC 60093 ≥1×10^13Ω·cm
Longitudinal Shrinkage ASTM-D-2671 ≤10%
Water Absorption S062 ≤0.50
Eccentricity ASTM-D-2671 ≤30%


Select Table:

Product No Diameter/mm Length(±5)/mm Wall Thickness/mm
As Supplied(Min) After Recovered(Max)
After Recovered(±0.1)
WRSFM-12/5 12 5 45 2.5
WRSFM-16/8.5 16 8.5 70 2.5
WRSFM-20/8.5 20 8.5 72 2.5
WRSFM-25/11 25 11 84 2.5
WRSFM-30/16 30 16 94 3
WRSFM-35/17 35 17 94 2.6
WRSFM-40/15 40 15 94 2.6
WRSFM-55/26 55 26 25 2.5
WRSFM-74/31 74 31 145 3.2
WRSFM-97/40 97 40 140 5
WRSFM-120/57 120 57 150 4.4
WRSFM-140/63 140 63 84 4
WRSFM-200/95 200 95 270 4
WRSFM-245/95 245 95 270 4


Remark:The end cap coated with hot-melt adhesive comes in two forms:flat adhesive and spiral adhesive.which can meet different customer needs.

Customization:

Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
For more customization details, message supplier
Anti UV RoHS Insulated Heat Shrinkable Cable End Caps Flame Retardant Wire End Caps
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China

FAQ:


Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
