Cross-linked Polyolefin Sealing Protection Y-type Heat Shrink Tube
Cross-linked Polyolefin Sealing Protection Y-type Heat Shrink Tube
Cross-linked Polyolefin Sealing Protection Y-type Heat Shrink Tube
Cross-linked Polyolefin Sealing Protection Y-type Heat Shrink Tube
Cross-linked Polyolefin Sealing Protection Y-type Heat Shrink Tube
Cross-linked Polyolefin Sealing Protection Y-type Heat Shrink Tube
Specifications
Brand Name :
WOER
Model Number :
WRSY
Certification :
ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1 piece
Price :
USD 0.1/pcs
Payment Terms :
T/T
Supply Ability :
10000pcs / day
Delivery Time :
1-7 days
Packaging Details :
Bag
Material :
Polyolefin
Insulator Type :
Heat Shrink Tube
Mix Order :
Yes
Origin :
CN(Origin)
Custom Pack :
Can Do
Lead Time :
3-7Days
Support :
Dropshipping
Environmental Standards :
RoHS
Description

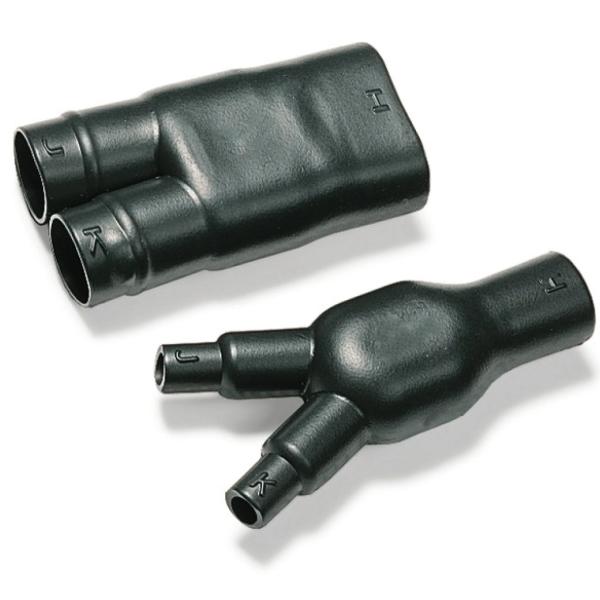

Cross-linked Polyolefin Sealing Protection Y-type Heat Shrink Tube

Product Description:

Mostly used to provide sealing and protection for bifurcated cable,especially for the branch cable lapping on the main cable

Features:

• Made of cross-linked polyolefin
• Mostly used to provide sealing and protection for bifurcated cable,especially for the branch cable lapping on the main cable

• Shrink temperature:start at 90℃,and fully recovered at 130℃

Applications:

Mostly used to provide sealing and protection for bifurcated cable,especially for the branch cable lapping on the main cable

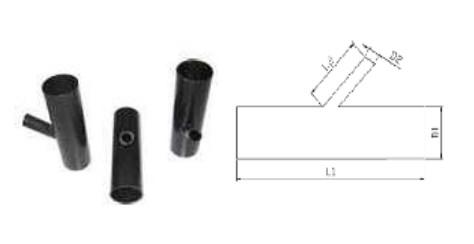

Select Table:

Product No. Body Branch Body Diameter(mm) Branch Diameter(mm)
Length(L1)(mm) Length(L2)(mm) As Supplied After Recovered As Supplied After Recovered
WRSY-28/13 120±2 38±2 ≥28 ≤13 ≥9 ≤3.5

Technical Data

Property Test Method Standard Value
Tensile Strength ASTM-D-638 ≥10.8MPa
Elongation at Break ASTM-D-638 ≥300%
Dielectric Strength IEC 60243 ≥20 kV/mm
Volume Resistivity IEC 60093

≥1×10^15Ω·cm
Property Test Method Standard Value
Physical properties Tensile Strength ASTM-D-638 ≥15MPa
Elongation at Break ASTM-D-638 ≥500%
Tensile Strength after Aging ISO 868 90±2
Elongation at Break after Aging ASTM-D-2671 ≥400%(130℃,168 hrs)
Heat shock(200℃,4hrs) UL 224 No dripping,flowing or cracking
Low temperature flexibility IS0 974 -55℃
Oxygen index S04589 ≥28
Dielectric Strength IEC 60243 ≥20 kV/mm
Solvent resistance(230℃,24hrs) Gasoline Tensile Strength ASTM-D-638 ≥11MPa
Elongation at Break ASTM-D-638 ≥400%
Diesel oil Tensile Strength ASTM-D-638 ≥10MPa
Elongation at Break ASTM-D-638 ≥350%
Acid & alkali Tensile Strength ASTM-D-638 ≥12MPa
Elongation at Break ASTM-D-638 ≥400%

Customization:

Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
For more customization details, message supplier
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
Port: Any port in China

FAQ:

Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
