Three-Pin Test Plug for Testing Socket-Outlet Against Full Insertion Test and Test Finger as Per AS/NZS3112 figure C1
Three-Pin Test Plug for Testing Socket-Outlet Against Full Insertion Test and Test Finger as Per AS/NZS3112 figure C1
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-ASNZSFC1
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15-20 business days
Packaging Details :
protection box+carton
normative standard :
AS/NZS3112 figure C1
Material :
hardened steel
Application :
for testing the AS/NZS socket-outlets against Abnormal Insertion
Quantity :
10A, 15A, 20A
Description

Three-Pin Test Plugs with Flat Pins

1. Introduction

The three-pin test plugs with flat pins are designed according to AS/NZS3112 figure C1 and clauses 3.3.4&3.8.1, for checking three-pin flat pin socket-outlets (250V max.) against full insertion test and the finger test during normal insertion test.

2. Specification

Material

Hardened steel

Quantity

3 (10A*1, 15A*1, 20A*1)

Dimension

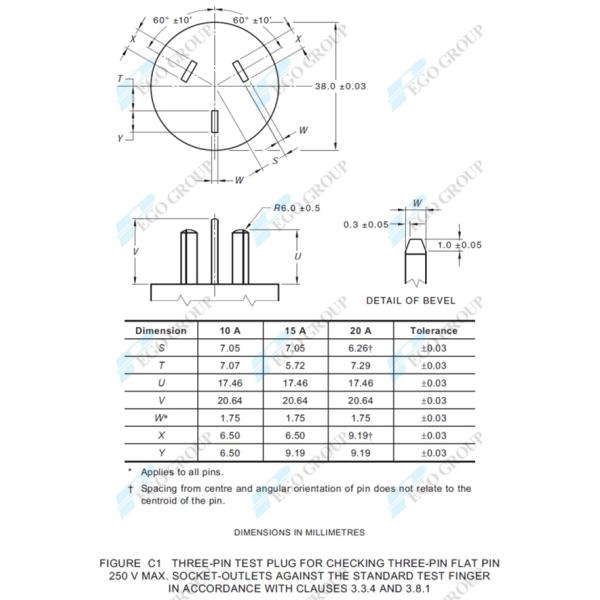

As per AS/NZS3112 figure C.1


AS/NZS3112 figure C1

Three-Pin Test Plug for Testing Socket-Outlet Against Full Insertion Test and Test Finger as Per AS/NZS3112 figure C1
