Dimension Verification Tool Plug Socket Tester for AS/NZS 3112 Figure A1 Three-Pin Flat-Pin Plugs
Dimension Verification Tool Plug Socket Tester for AS/NZS 3112 Figure A1 Three-Pin Flat-Pin Plugs
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-ASNZSFA1
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Delivery Time :
15-20 working days
Packaging Details :
protective box + carton
Supply Ability :
100 set/month
Normative standard :
AS/NZS 3112 figure A1
Material :
hardened steel
Description

Gauges for Three-Pin Flat-Pin Plugs for Dimension Verification as Per AS/NZS 3112 figure A1

1. Introduction

The gauges for three-pin flat pin plugs are designed according to AS/NZS 3112 figure A1 and clauses 2.8.1 & 2.8.4 &2.13.7.1 & 2.13.7, for routine inspection of three-pin flat-pin plugs and two-pin flat-pin plugs, and dimension inspection of the pins before performing bending test and after free-fall test.

The disposition of pins in flat-pin plugs of types shown in figure 2.1 (a) and figure 2.1(c) shall be checked with this gauge, the plug pins shall pass easily through the gauge at all depths of insertion.

2. Specification

Material of gauge

Hardened steel

Quantity

3 (Gauge for three pin flat pin plugs 250Vmax./10A *1, Gauge for three pin flat pin plugs 250Vmax./15A*1, Gauge for three pin flat pin plugs 250Vmax./20A*1)

Dimension

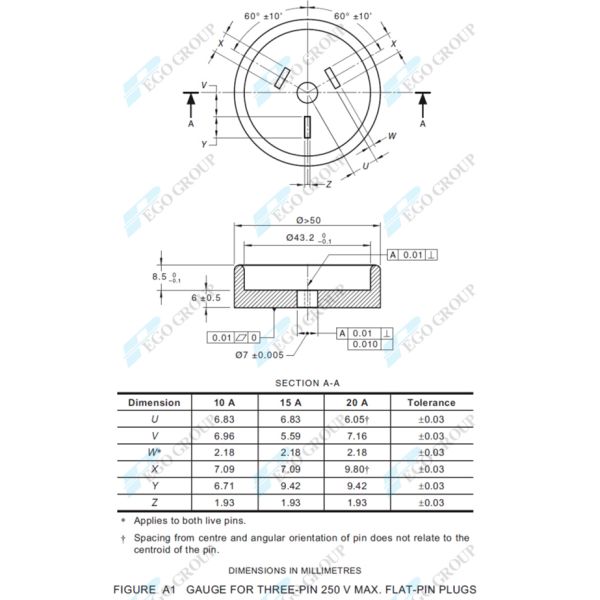

As per AS/NZS 3112 figure A1


AS/NZS 3112 figure A1
