AS/NZS 3112 Figure 2.10 and Clause 2.13.8 Compliant Pin Clamping Units for Temperature Rise Test
AS/NZS 3112 Figure 2.10 and Clause 2.13.8 Compliant Pin Clamping Units for Temperature Rise Test
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-ASNZSF2.10
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15-20 working days
Packaging Details :
protective box + carton
Normative standard :
AS/NZS 3112 figure 2.10 and clause 2.13.8
Material :
brass
Application :
for plugs temperature rising test
Quantity :
Pin clamping unit for 10A and 15A flat pin plugs*1, Pin clamping unit for 10A round pin plugs *1, pin clamping unit for 20A flat pin plugs*1
Description

Pin Clamping Units for Temperature Rise Test

1. Introduction

The pin clamping units are designed according to AS/NZS 3112 figure 2.10 and clause 2.13.8 for plugs temperature rise test.

2. Specification

Material of clamping unit and clamping screw

Brass with at least 52% copper

Quantity

3 (Pin clamping unit for 10A and 15A flat pin plugs*1, Pin clamping unit for 10A round pin plugs *1, pin clamping unit for 20A flat pin plugs*1)

Dimension

As per AS/NZS 3112 figure 2.10

Clamping screw

M3.5

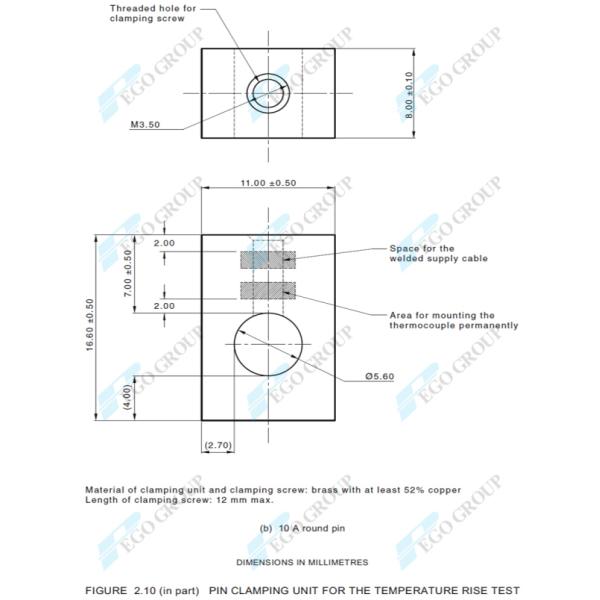

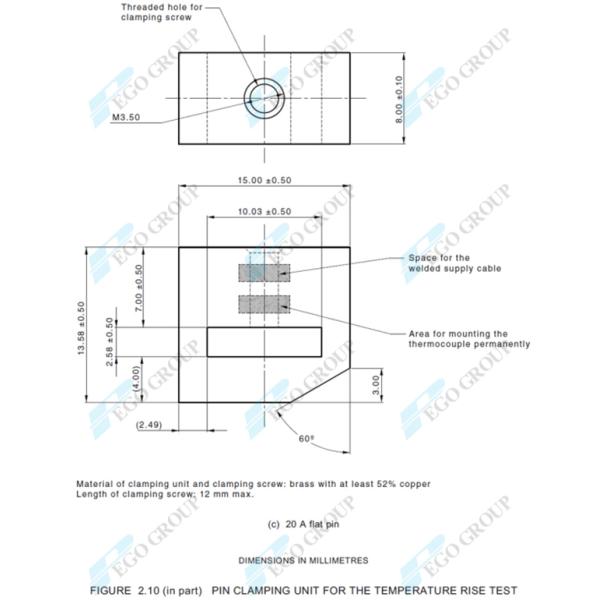

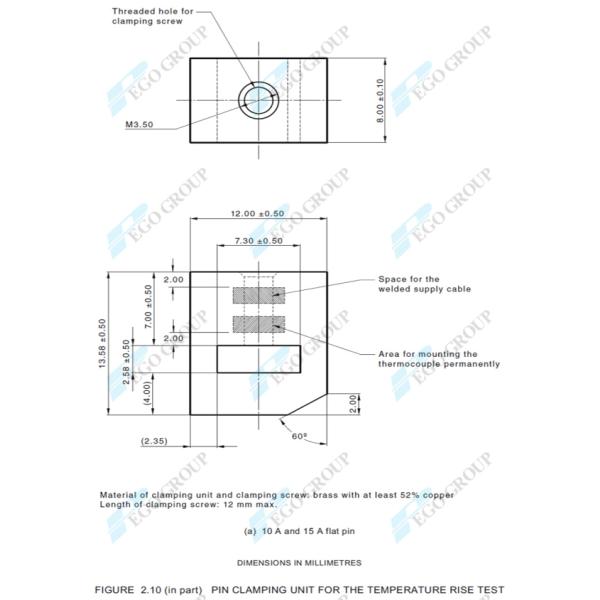

AS/NZS3112 Figure 2.10

AS/NZS 3112 Figure 2.10 and Clause 2.13.8 Compliant Pin Clamping Units for Temperature Rise Test

AS/NZS 3112 Figure 2.10 and Clause 2.13.8 Compliant Pin Clamping Units for Temperature Rise Test

AS/NZS 3112 Figure 2.10 and Clause 2.13.8 Compliant Pin Clamping Units for Temperature Rise Test
