Flat and Round Pin Test Plugs for AS/NZS 3112 Figure G1 Three-Pin Socket-Outlets with Full Insertion and Finger Test
Flat and Round Pin Test Plugs for AS/NZS 3112 Figure G1 Three-Pin Socket-Outlets with Full Insertion and Finger Test
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-ASNZSFF1
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15-20 working days
Packaging Details :
protective box + carton
Normative standard :
AS/NZS 3112 figure F1
Material :
hardened steel
Application :
for dimension checking of socket-outlet
Quantity :
Gauge for two flat live pins and a round earth pin plug*1, gauge for two round live pins and a flat earth pin plug *1
Description

Figure G1 Three-Pin Test plugs with Flat and Round Pins

1. Introduction

Three-pin test plugs with flat and round pins are designed according to AS/NZS 3112 figure G1 and clauses 3.3.4&3.8.1, for checking two flat live pins and a round earth pin socket-outlets and two round live pins and a flat earth pin socket-outlets against full insertion test and the finger test during normal insertion test.

2. Specification

Material

Hardened steel

Quantity

2 (three-pin test plug with two flat live pins and a round earth pin *1, three-pin test plug with two round live pins and a flat earth pin*1 )

Dimension

As per AS/NZS3112 figure G1

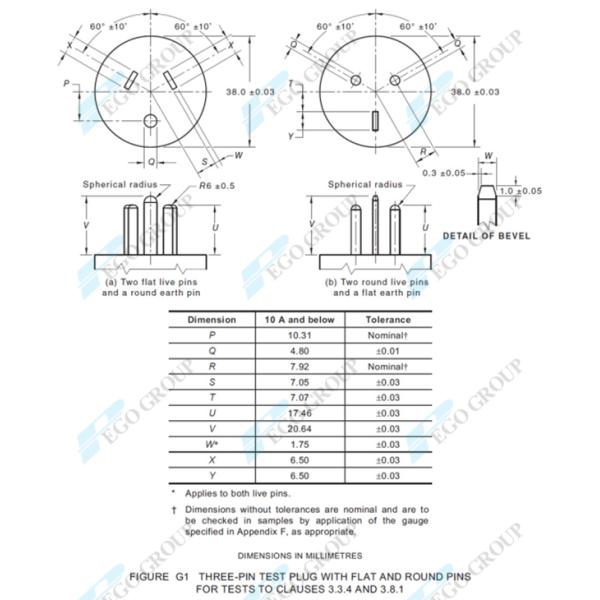

AS/NZS 3112 figure G1

Flat and Round Pin Test Plugs for AS/NZS 3112 Figure G1 Three-Pin Socket-Outlets with Full Insertion and Finger Test
