Current-Carrying Hoses Torsion Test Apparatus for Torsion Resistance Testing with Electrical Safety Test Equipment
Current-Carrying Hoses Torsion Test Apparatus for Torsion Resistance Testing with Electrical Safety Test Equipment
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-CHTA
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
30 working days
Packaging Details :
woodencase
Normative standard :
IEC60335-2-2 clause 21.104
Application :
for verifying current-carrying hoses resistance to torsion
Torque speed :
10r/min
Test cycle :
2000
Control mode :
PLC+touch screen
Working power :
AC220V/50Hz
Description

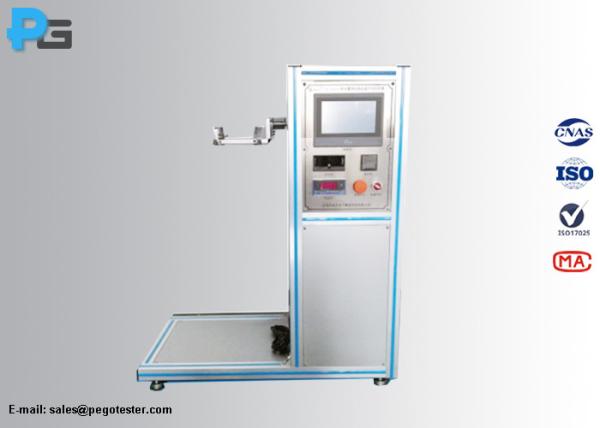

Current-Carrying Hoses Torsion Test Apparatus IEC60335-2-2

1. Introduction

The current-carrying hoses torsion test apparatus is designed to meet the test requirements of IEC60335-2-2 clause 21.104, for verifying torsion Resistance of Current-Carrying hoses.

One end of the hose is held in a horizontal position with the remainder of the hose freely suspended. The free end is rotated in cycles, each cycle consisting of five turns in one direction and the five turns in the opposite direction, at a rate of 10 turns per minute. The test is carried out for 2000 cycles. After the test, the hose shall withstand the electric strength test.


2. Specification

Control units

PLC+touch screen

Drive mode

Servo gear motor

Torque speed

10r/min (settable)

Test cycles

0-999999 (settable)

Working power

AC 220V/50Hz (φ1)
