Test Fixture With Three-Pointed Metallic Supports For Heating Test Of Electrical Irons
Test Fixture With Three-Pointed Metallic Supports For Heating Test Of Electrical Irons
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-TF1005
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD500~USD1000
Payment Terms :
T/T, PayPal
Delivery Time :
15 business days
Packaging Details :
carton
Reference standard :
IEC60335-2-3 clause 11.2 and UL1005 clause 26.6&figure 26.1
Metallic supports :
φ6mm-H100mm
Silver disc :
φ10mm-THK1mm
Material of supporting base :
Insulation Bakelite
Application :
for heating test of electrical irons
Shipment :
by DHL or Fedex
Description

Test Fixture with Three-Pointed Metallic Supports

1. Introduction

The test fixture with three-pointed metallic supports is designed to meet the test requirement of IEC60335-2-3 clause 11.2 and UL1005 clause 26.6&figure 26.1 for heating test of electrical irons. The supports have a height of 100mm. The soleplate of the irons in the horizontal position placed on three pointed metallic supports to tightly contact with silver disc, then transfer heat to the thermocouple through the silver disc for testing.

2. Specification

Material of supporting base Insulation Bakelite
Metallic supports

Height: 100mm

Diameter: 6mm

Radius at the point: 1.6mm
Silver disc

1). 10mm in diameter, 1mm in thickness

2). A K type thermocouple is to be soldered at the center of the silver disc. The disc is to be fixed to the end of the ceramic pipe
Structure The position of the metallic supports and thermocouple can be adjusted

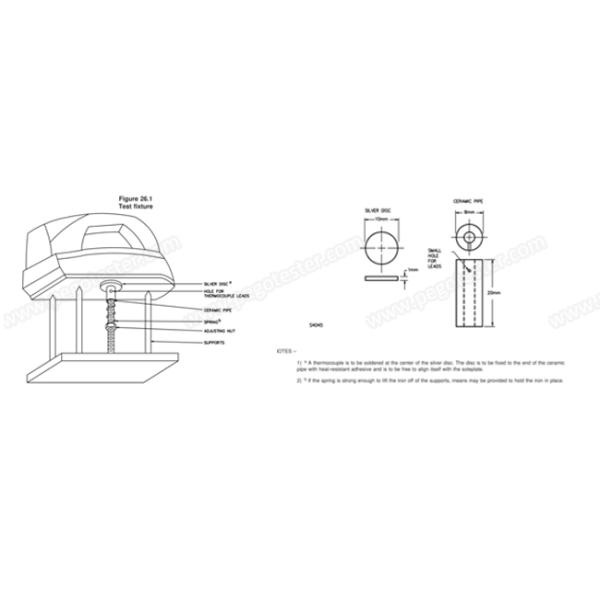

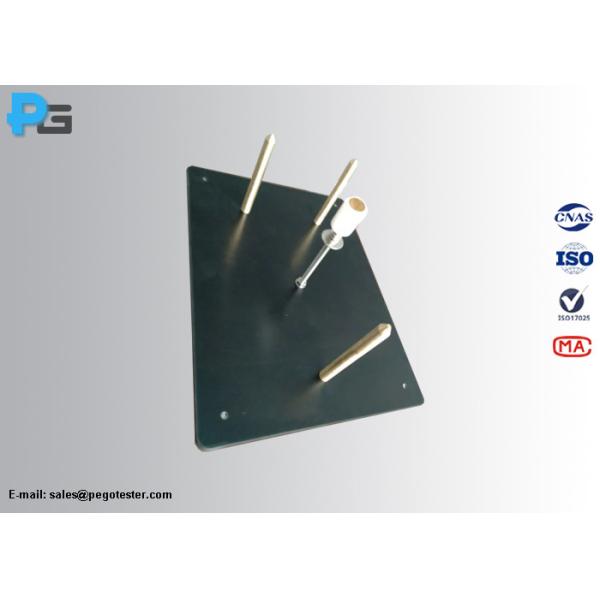

3. Figures
