IEC62196-1 Electric Vehicle Environment Test Equipment Ball Pressure Test Apparatus
IEC62196-1 Electric Vehicle Environment Test Equipment Ball Pressure Test Apparatus
IEC62196-1 Electric Vehicle Environment Test Equipment Ball Pressure Test Apparatus
IEC62196-1 Electric Vehicle Environment Test Equipment Ball Pressure Test Apparatus
Specifications
Brand Name :
Pego Group
Model Number :
PG-BPA
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
USD300~USD500
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
15 working days
Packaging Details :
carton
Material :
Stainless Steel
Applied Standard :
IEC62196-1 clause 29.3, IEC60695-10-2
Ball diameter :
R2.5mm
Test Pressure :
20N±0.2N
Warranty :
12 months
Description

IEC60695-10-2 Ball Pressure Test Apparatus Made by Stainless Steel

1. Introduction

The ball pressure tester is an instrument designed to test the heat resistance of household plugs and sockets. It is designed and manufactured according to the requirements of IEC60695-10-2, and it's required by the many standard requirements such as IEC 62196-1 clause 29.3, IEC60335, IEC60601, GB4706.1 and etc. It can simulate pulling out the plug and plugging it back in, applying pressure, and detecting the characteristics of the product's temperature resistance.The ball pressure tester is equipped with a 5mm stainless steel ball, with a maximum applied pressure of 20N±0.2N; the sample supportor is 50mm in diameter and 100mm long, with a temperature measurement hole inside for analysis of heat resistance.

2. Test principle:

The surface of the part to be tested is placed in the horizontal position and a steel ball of 5 mm diameter is pressed against the surface with a force of 20 N. The test is performed in a heating cabinet at a temperature of 75°C ± 2°C. The ball is withdrawn after 1 h and the diameter of the impression made by the ball is measured. An impression greater than 2 mm in diameter constitutes a failure.

3. Parameters:

Ball diameter 5mm (R2.5mm)
Test Pressure 20N±0.2N
Material Stainless Steel
Sample supportor Φ50mm-length 100mm, cylinder sharp

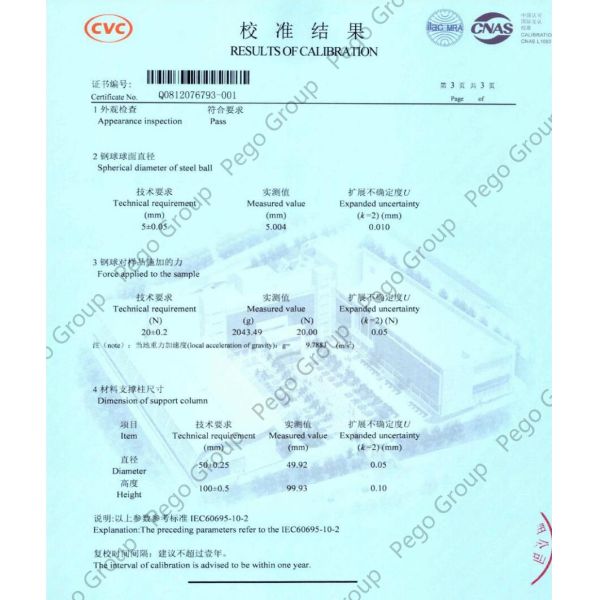

4. Certificate:

IEC62196-1 Electric Vehicle Environment Test Equipment Ball Pressure Test Apparatus
