 IEC60335-2-24 Scratching Tool With R1mm Tip For Testing Scratch Resistance Of Cooling System
 IEC60335-2-24 Scratching Tool With R1mm Tip For Testing Scratch Resistance Of Cooling System
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-STP24
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
Reference standard :
IEC60335-2-24 figure 102, GB4706-13 figure 102
Material :
hard-soldered carbide tip K10
Application :
for verifying the scratch resistance of accessible component sufaces of all protected cooling system in appliances
Radius of tip :
1mm
Diameter of the pin :
6mm
Description

IEC60335-2-24 Scratching Tool with R1mm Tip for Testing the Scratch Resistance of Cooling System

1. Introduction

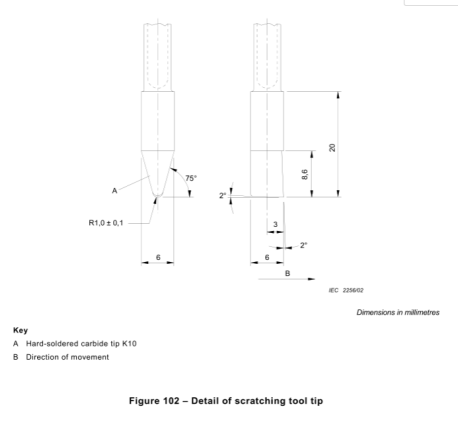

The scratch test pin is designed according to IEC60335-2-24 fig. 102 and GB4706.13 Fig 102. It’s used to perform scratch tests on the accessible component surfaces of all protected cooling systems in appliances, including accessible surfaces that are in close contact with the protected cooling system.

2. Specification

Radius of Tip 1mm
Diameter of Tip 6mm
Length of Tip 8.6mm
Length of Pin 20mm

 IEC60335-2-24 Scratching Tool With R1mm Tip For Testing Scratch Resistance Of Cooling System

3. Frequently asked questions

1) How to store and maintain the test probes in daily life?

Pego: The probes will come with a protective case, When not in use, place it in the case.

 IEC60335-2-24 Scratching Tool With R1mm Tip For Testing Scratch Resistance Of Cooling System


2). How do you prove that the probes meet the relative standards?

Pego: User can ask for the calibration certificate issued by ISO17025 authorized lab, but the price of the calibation certificate will be charged additionally.

3). How can we get the goods?

Pego: We will ship the probe by DHL and Fedex. It is a door to door service, normally, it will spend 5-7 working days to reach at the customers' hand after delivery out.
