Hardwood Test Surface for Drop Impact Test with 600mm x 600mm Oak and Plywood Construction Compliant with GB4943.1, UL1993, UL1017
Hardwood Test Surface for Drop Impact Test with 600mm x 600mm Oak and Plywood Construction Compliant with GB4943.1, UL1993, UL1017
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-HS
Certification :
Calibration certificate (cnas logo)
Place of Origin :
China
MOQ :
1 pc
Price :
USD300~USD1000
Payment Terms :
T/T
Supply Ability :
100 pc/month
Delivery Time :
5-10 working days
Packaging Details :
carton
Reference standard :
GB4943.1, UL1993, UL1017
Construction :
Oak board*1, plywood board *2
Surface dimension :
L600mm * W600mm (customizable)
Application :
drop impact test
Description

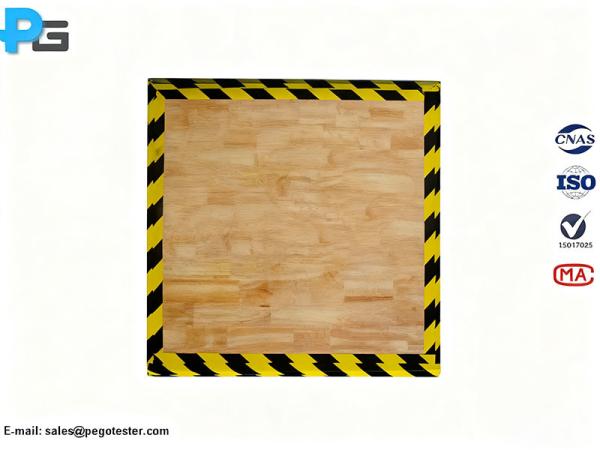

Hardwood Test Surface for Drop Impact Test (Oak + Plywood)

  1. Introduction

The hardwood surface comply with the specifications outlined in GB4943.1-2011 Clause 4.2.6, UL1993 Clause 8.8.2, and UL1017 Clause 5.19.2. They are used in drop impact tests to evaluate the impact resistance of test samples. Throughout the test, the hardwood surface must be placed on a concrete floor or an equivalent non-resilient flooring material.


2. Specification

Item

GB hardwood surface

UL Hardwood surface

Size

600*600*52m (customized)

600*600*63mm (customized)

First Layer

Oak board*1 with thickness 13mm above

Oak board*1 with thickness 25mm above

Second Layer

Plywood*2 with thickness 19~20mm

Plywood*2 with thickness 19~20mm

structure

The oak board is installed on two layers of plywood to ensure that the overall horizontal plane is flat and there is no gap in the fastening

The oak board is installed on two layers of plywood to ensure that the overall horizontal plane is flat and there is no gap in the fastening

Standard

GB4943.1-2011

UL1993, UL1017
