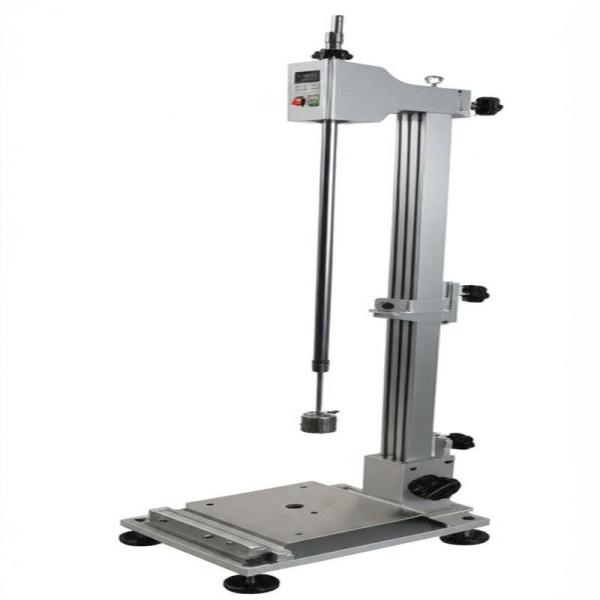

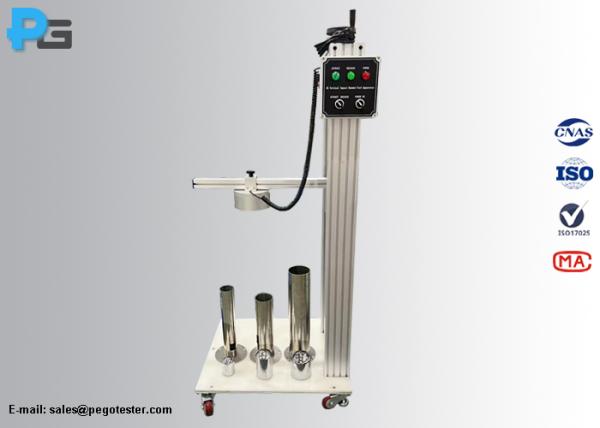

Vertical Impact Hammer Test Apparatus with Customizable Travel Height and Rigid Plane Support for Luminaire Testing
Vertical Impact Hammer Test Apparatus with Customizable Travel Height and Rigid Plane Support for Luminaire Testing
Vertical Impact Hammer Test Apparatus with Customizable Travel Height and Rigid Plane Support for Luminaire Testing
Vertical Impact Hammer Test Apparatus with Customizable Travel Height and Rigid Plane Support for Luminaire Testing
Specifications
Brand Name :
Pego Electronics
Model Number :
PG-VTXX
Certification :
Calibration Certificate (CNAS)
Place of Origin :
China
MOQ :
1 set
Price :
USD1000-USD4000
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
10-20 working days
Packaging Details :
woodencase
Reference standards :
IEC60068-2-75, IEC62262, IEC60598-1, IEC60335-1, IEC62196-1
Test IK level :
IK07, IK08, IK09, IK10, IK11
Impact energy :
2J, 5J, 10J, 20J, 50J
Configuration :
striking elements, guideways, test rig
Material of striking element :
steel
Release mode :
Electromagnetic
Working power :
220V, 50/60Hz
Application :
luminaire, electrical appliance, EVCS
Description

Vertical Impact Hammer Test Appratus for IK07 to IK11 Mechanical Strength Tests as Per IEC60068-2-75


  1. Introduction

IK Vertical hammer is a professional tool designed according to IEC60068-2-75 test Ehc for high energy mechanical impact tests, it can perform the IK07 to IK11 tests as per IEC62262. The vertical hammer can only be used on accessible horizontal surfaces. The vertical hammer is basically consists of a striking element and a guideway.

Vertical hammers are widely used in mechanical hammer impact tests to assess the mechanical impact strength of products such as luminaires, household appliances, EVCS (Electric Vehicle Charging Stations), and more. By performing these tests, manufacturers can ensure that their products meet the requirements of standards like IEC60598-1, IEC62196-1, and others, enhancing the safety and reliability of their products


2. Specification

Travel height

0~1000mm (manual adjustable)

Dimension of rigid plane support

600mm*600mm (customizable)

Impact hammers

0.5kg, 1.7kg, 5kg, 5kg steel hammers for IK07 to IK10 vertical impact

Impact energy

2J, 5J, 10J, 20J

Size of guideway

(diameter*height)

Φ40mm*471mm, Φ68mm*385mm, Φ89mm*337mm, Φ108mm*520mm, Φ129mm*650mm

Release mode

Electromagnetic release

Working power

220V/50Hz


3. What are the Advantages of Your Design?

1). The vertical impact test apparatus offers the flexibility to customize the travel height. With a regular height range of 0 - 1000mm, it can be adjusted to fit different heights of impact points.

2). The test apparatus is equipped with a rigid plane support for placing the specimens. This stable support ensures accurate and reliable results during the mechanical impact tests.
