Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness
Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness
Specifications
MOQ :
1 set
Price :
USD300-USD1500
Payment Terms :
T/T
Supply Ability :
50 sets/month
Delivery Time :
5-10 days
Packaging Details :
carton
Normative standard :
GB 21456
Material :
Q235 steel with maximum carbon content less than 0.08%
Application :
for evaluating the energy efficiency and energy efficiency grade of household induction cookers
Wall thickness :
1.5mm and 2mm
Description

Standard Pan with Lid for Testing Energy Efficiency and Energy Efficiency Grade of Induction Cookers Compliant to GB21456


  1. Introduction

The standard pans with lids is designed according to GB21456 Annex A, for testing the energy efficiency and energy efficiency of household induction cookers. The pan and lid are made of Q235 steel, wich has a maximum carbon content of 0.08%,

The surface of the pan and the lid is smooth and polished to prevent rust. The thickness of the lid (t) is 1mm, the bottom of the pan can not convex outward, and the maximum concavity at the bottom is 0.6% times the effective diameter.


2. Specification

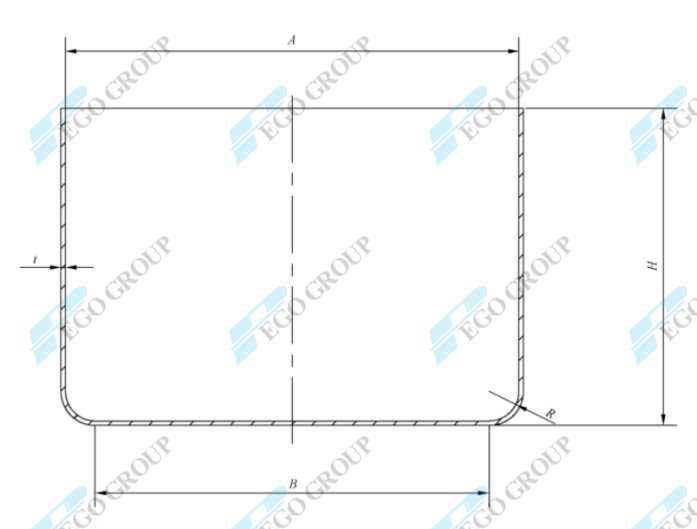

Size of vessels

Figure No.

A/mm

B/mm

H/mm

t/mm

Volume/L

B1

Φ140

Φ120

75

1.5

1

B2

Φ200

Φ180

95

1.5

3

B3

Φ220

Φ200

110

1.5

4

B4

Φ280

Φ260

105

2.0

6

Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness

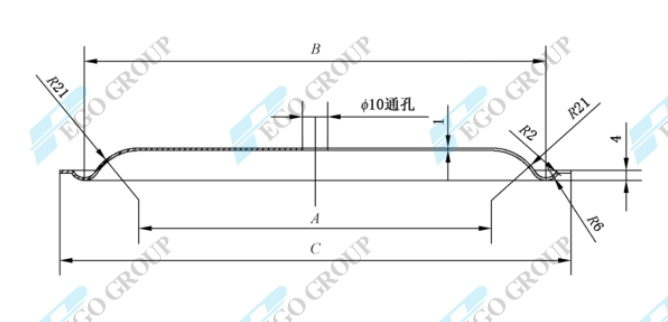

Size of lids

Figure No.

A/mm

B/mm

C/mm

t/mm

B1

Φ82

Φ126

Φ146

1.0

B2

Φ142

Φ186

Φ206

1.0

B3

Φ162

Φ206

Φ226

1.0

B4

Φ222

Φ266

Φ286

1.0

Standard Pan with Lid Compliant to GB21456 for Testing Energy Efficiency of Induction Cookers Made of Q235 Steel with 1.5mm and 2mm Wall Thickness
