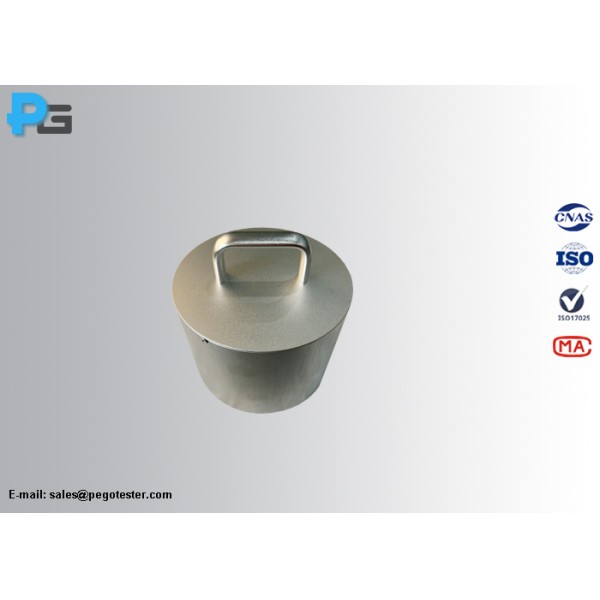

Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface
Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface
Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface
Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface
Specifications
Model Number :
PG-AV1.8
Supply Ability :
50 sets/month
Normative standard :
IEC60335-2-6, IEC60335-2-9
Material :
aluminum
Payment Terms :
T/T
Application :
For verifyint the ability of hob surface to withstand the stresses
Price :
USD500~USD1000
Weight :
1.8KG (loaded with shot ≥1.3kg)
MOQ :
1 set
Delivery Time :
7-15 working days
Place of Origin :
China
Packaging Details :
carton
Certification :
CNAS Calibration Certificate
Brand Name :
Pego Electronics
Description
Standard Impact Test Vessel 1.8KG Loaded with Shot for Impact Test to Hob Surface
1. Introduction

The standard impact test vessel is designed to meet the requirement of IEC60335-2-6 clause 21.102 and IEC60335-2-9 clause 20.101 to verify the ability of hob surface to withstand the stresses.The vessel is made of aluminum, and the flat base has a diameter of 120mm±10mm, its edges being rounded with a radius of at least 10mm. the vessel should be uniformly filled with a least 1.3kg of sand or shot so that the total mass is 1.8kg±0.01KG.

The loaded vessel is dropped flat 10 times from a height of 150mm onto the cooking zone of hob element, and the hob surface shall not crack and the appliance shall withstand the electric strength.

2. Specification
Diameter of the vessel 20mm±10mm
Height 113mm
Wall thickness 2.5mm
Edge radius ≥10mm
Weight 1.8KG (loaded with shot ≥1.3kg)
Material of the vessel aluminum
