IEC60851-3 Standard Enamelled Round Wire Abrasion Resistance Test Apparatus with DC (6.5±0.5)V Test Voltage and Automatically Rotating Sample
IEC60851-3 Standard Enamelled Round Wire Abrasion Resistance Test Apparatus with DC (6.5±0.5)V Test Voltage and Automatically Rotating Sample
Specifications
MOQ :
1
Packaging Details :
Wooden Case
Short-circuit current :
(20±0.5)mA
Payment Terms :
T/T
Power supply :
AC 220V±10%, 50Hz
Model Number :
PGW-WART
Scraper diameter :
(0.23±0.01)mm
Supply Ability :
100sets/month
Delivery Time :
15 working days
Certification :
Third-lab Calibration Certificate
Scrape speed of scraping device :
(400±40)mm/min
Place of Origin :
China
Test voltage :
DC (6.5±0.5)V
Brand Name :
Pego
Standard :
IEC60851-3
Description
IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus

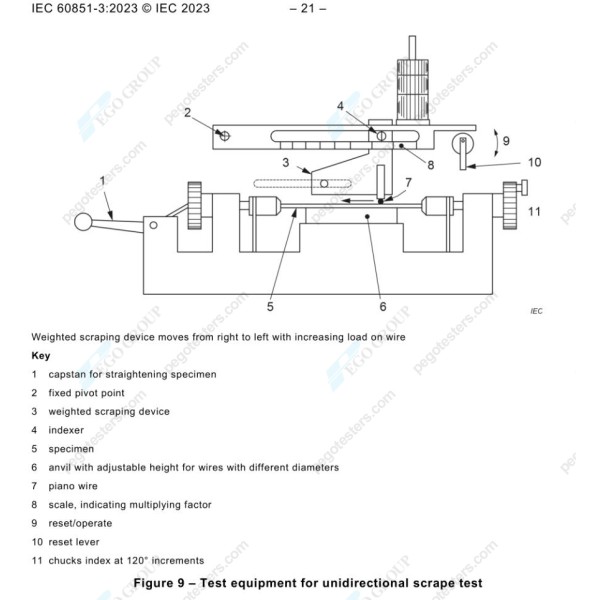

The enamelled round wire abrasion resistance test apparatus is designed according to IEC60851-3 clause 7 figure 1 and figure 2 and GB/T4074.3 clause 5.2. This equipment is used to test the abrasion resistance of the enamel film on round enameled wires with a nominal conductor diameter over 0.250 mm.

Test Principle

A straight piece of wire is subjected to a unidirectional scrape test by a needle to which a progressively increasing load is applied and which scrapes along the wire surface. The load that causes an electrical contact of the needle with the conductor is called the load-to-failure.

Technical Specifications
Parameter Specification
Moveable distance of scraping device >100mm
Scrape speed of scraping device (400±40)mm/min
Scraper diameter (0.23±0.01)mm
Sample rotation way Automatically
Test voltage DC (6.5±0.5)V
Short-circuit current (20±0.5)mA
Scratch resistance error <±5%
Weight 5N*3, 2N*2, 1N*1, 0.5N*1, 0.2N*2, 0.1N*1
Power supply AC 220V±10%, 50Hz
Power consumption <150W
Operating environment Temperature: 0-40℃, relative humidity: ≤85%
Dimension and weight L600*W350*375mm/35KG
