Loading Device Environment Test Equipment IEC60695-10-2 For Indentation Distance
Loading Device Environment Test Equipment IEC60695-10-2 For Indentation Distance
Specifications
Brand Name :
PEGO Group
Model Number :
PG-BPT
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets/months
Delivery Time :
7 working days
Packaging Details :
carton
Standard :
IEC60695-10-2
Name :
ball pressure test apparatus
Material :
stainless steel
Function :
for testing indentation distance
Configuration :
pressure ball, weight, test specimen support
Warranty :
12 months
Description

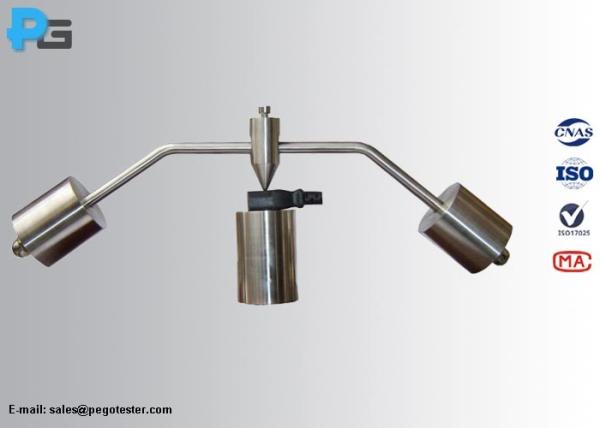

IEC60695-10-2 Loading Device for Testing indentation Distance

1. Introduction

The load device is consisted of a 5mm±0.05mm diameter pressure ball attached to a system of weights designed to apply a downward force equivalent to a 20N±0.2N load including the mass of the pressure ball. The loading device shall work with a heating oven.

2. Standard conforms to: IEC60695-10-2, IEC60335, IEC60601

3. Test methord

To measure and to verify the dimension "d" of the indentation left by a steel ball applied on a test specimen with a specified force and at a specifified temperature. Dimension "d" is the largest distance that can be measured across the indentation from one clearly defined edge of the indentation to another. The result is presented as a pass if dimension "d" does not exceed 2.0mm.

4. Parameters

Ball diameter 5mm (R2.5mm)
Test Pressure 20N±0.2N
Material Stainless Steel
Test specimen support

a. sizes: Φ50mm-length 100mm,

b. Sharp: cylinder sharp, with a smooth flat surface

c. rigidly and has sufficient strength, with temperature measuring hole

5. Drawings

Loading Device Environment Test Equipment IEC60695-10-2 For Indentation Distance
