Spring Hammer Calibration Device Calibration As Per IEC 60068-2-75 Annex B.3 And Figure B.5
Spring Hammer Calibration Device Calibration As Per IEC 60068-2-75 Annex B.3 And Figure B.5
Specifications
Brand Name :
PEGO Electronics
Model Number :
PG-SHCC
Certification :
Third-Lab Calibration Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10 sets/month
Delivery Time :
30 working days
Packaging Details :
woodencase
Standard :
IEC60068-2-75 annex B.3 and figure B.5
Material :
stainless steel
Accuracy :
0.01J
Calibration striking element :
250g
Description

Spring Hammer Calibration Device Calibrator as per IEC60068-2-75 Annex B.3 and figure B.5

1. Introduction

The spring hammer calibration device calibrator is designed according to IEC60068-2-75 Annex B.3 and figure B.5 for checking the impact energy accuracy of spring hammer calibration device. The calibation is made with an impact energy of 1J, which is achieved with a height of fall of 408±1mm, with a calibation striking element of 250g.

2. Parameter

Accuracy 0.01J
Repeated Accuracy ±0.01J
Max measuring range 0-2J
Calibration striking element 250g
Reference point An impact energy of 1J is achieved with a height of 408±1mm
Pendulum rope center distance 2m

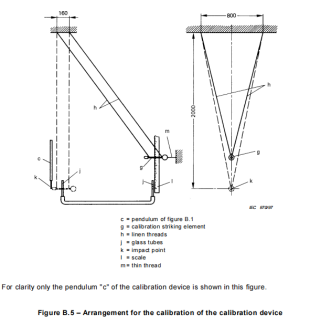

3. Figures

Spring Hammer Calibration Device Calibration As Per IEC 60068-2-75 Annex B.3 And Figure B.5
