IEC61032 Finger Probe Test 12.5 Millimeter Steel Sphere CNAS Certification
IEC61032 Finger Probe Test 12.5 Millimeter Steel Sphere CNAS Certification
IEC61032 Finger Probe Test 12.5 Millimeter Steel Sphere CNAS Certification
IEC61032 Finger Probe Test 12.5 Millimeter Steel Sphere CNAS Certification
Specifications
Brand Name :
PEGO
Model Number :
PG-TP2
Certification :
Third-lab Calibration Certificate
Place of Origin :
China
MOQ :
1set
Price :
USD450-600/set
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
15 working days
Packaging Details :
carton box
Standard :
IEC61032, IEC60529
Material :
metal and insluating material
Application :
accessible probe for IP2X Testing
Shippment :
by DHL, TNT, UPS or FedEx etx.
Sphere diameter :
12.5mm
Quality :
High grade quality guarantee
Description

IEC61032 Test Finger Probe 2 Diameter 12.5mm Steel Sphere with CNAS Certificate Handle Available

1. Introduction of 12.5mm Steel Sphere:

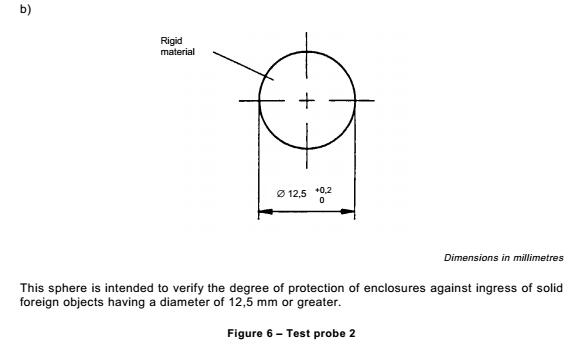

The 12.5mm steel sphere is designed according to IEC61032 figure 6, meet the requirement of IEC60529-IP2. The diameter of sphere is 12.5+0.2, this sphere is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having diameter of 12.5mm or greater.

2. Specification of 12.5mm Steel Sphere:

1). diameter of the sphere: 12.5mm (50.8mm, 63.5mm, 38.1mm choosable)

2). weight of the sphere: 15g

3). Material: steel sphere

4) Handle for optional

3. Picture of 12.5mm Steel Sphere:

IEC61032 Finger Probe Test 12.5 Millimeter Steel Sphere CNAS Certification

Probe List:

Probes and application Probe code Short description Force to be applied
Access probes of IEC60529 (IP code) Probe A Sphere:Φ50 with handle 50
Probe B Jointed test finger 10
Probe C Rod: Φ2.5-length 100 3
Probe D Wire: Φ1.0-length 100 1
Object probes of IEC60529 (IP code) Probe 1 Sphere: Φ50 50
Probe 2 Sphere: Φ12.5 30

Other access probes

Persons against access to hazardous live parts or hazardous mechanical parts

 Probe 11 Unjointed test finger 50
Probe 12 Cylindrical pin: Φ4-length 50
Probe 13 Conincal pin: Φ3 to 4-length 15
Probe 14 Bar: 3*1 20
Probe 15 Deleted
Probe 16 Deleted
Probe 17 Wire: Φ0.5
Probe 18 Small finger probe: Φ8.6-length 57.9 10
Probe 19 Small finger probe: Φ5.6-length 44 10

Other access probes

Persons against access to hazardous mechanical parts

 Probe 31 Cone: Φ110/60 50
Probe 32 Rod: Φ 25 30
Probe 33 Delected

Other access probes

Persons against access to hot or glowing parts

 Probe 41 Probe: Φ 30
Probe 42 Deleted
Probe 43 Bar: 50*5
