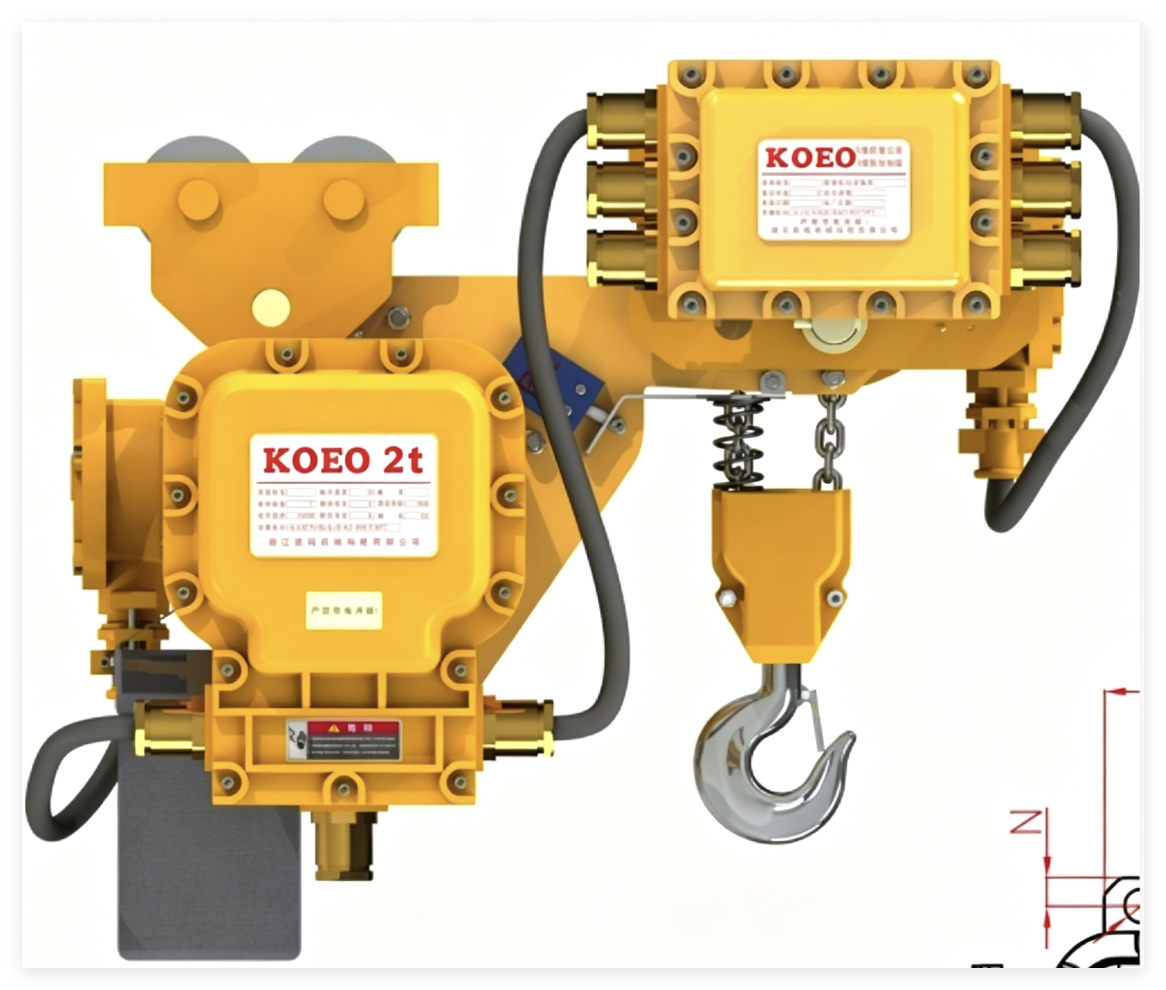

6m Lift Height 2T Hoist G80 Chain Explosion Proof Hoists Dual Speed
6m Lift Height 2T Hoist G80 Chain Explosion Proof Hoists Dual Speed
Specifications
Lifting Height :
4 m
Model Number :
EQFC02-01
Motor Power :
3.0 kW
Brand Name :
KOEO
Supply Ability :
400 Sets per Month
Chain Falls :
1
Working Class :
M5
Explosion Proof Grade :
Exd II CT4
Place of Origin :
Zhejiang, China
Protection Class :
IP55
Packaging Details :
Export-grade plywood case with vacuum sealed anti-rust wrapping and shock-proof foam insert
Price :
USD 1500-2200 / Set
Payment Terms :
T/T,L/C
MOQ :
1 Set
Lifting Speed :
7/2.4 m/min (dual speed)
Delivery Time :
5-7 working days for stock, 15-25 days for production
Chain Specifications :
G80 Alloy Chain, 10mm
Mounting Type :
Fixed Hook Suspension
Lifting Capacity :
2 Ton
Certification :
ISO 9001:2015, Exd II CT4, CE
Description

2 Ton Explosion Proof Electric Chain Hoist HB Series Exd II CT4 Dual Speed 6m Lift Height G80 Chain

Product Overview

The KOEO EQFC02-01 explosion proof electric chain hoist delivers 2 ton lifting capacity with Exd II CT4 certification, the highest standard for Group IIC gas environments including hydrogen, acetylene, and carbon disulfide. This dual speed hoist offers precise load positioning at 7 m/min fast speed and 2.4 m/min slow speed. Designed with a 1-fall G80 alloy chain configuration, it provides exceptional stability and safety for critical lifting tasks.

Key Features
  • Exd II CT4 flameproof certification suitable for all gas groups including hydrogen and acetylene
  • Dual speed lifting with ratio control for precise load positioning and efficient operation
  • G80 alloy chain with 1-fall configuration distributes load evenly reducing chain wear
  • 3.0kW copper wound explosion proof motor with Class H insulation (180°C rating)
  • Electromagnetic spring-applied fail-safe brake holds load securely on power loss
  • IP55 rated enclosure protects internal components from dust and water jets
  • Forged alloy steel load hook with safety latch rotates 360 degrees
  • Upper and lower geared limit switches provide redundant over-travel protection
Technical Specifications
Lifting Capacity 2 Ton (2000 kg)
Lifting Height 4 m (customizable)
Lifting Speed 7 / 2.4 m/min (dual speed)
Chain Specifications G80 Alloy Chain, 10 mm diameter
Chain Falls 1
Motor Power 3.0 kW
Explosion Proof Grade Exd II CT4
Protection Class IP55
Working Class M5 (ISO/FEM 2m)
Voltage 380V / 400V / 415V 3-Phase 50Hz/60Hz
Applications

Specifically engineered for hydrogen production and storage facilities, acetylene manufacturing plants, petrochemical reactors, offshore oil and gas platforms, and any Zone 1 classified areas where Group IIC explosive gas atmospheres may be present.

Certifications & Compliance

ISO 9001:2015 certified manufacturing. Exd II CT4 flameproof certification. CE marked. Proudly manufactured by KOEO.
