Three Chain Trolley Hoist 7.5T Electric Trolley Hoists With 3.6KW Lifting Power
Three Chain Trolley Hoist 7.5T Electric Trolley Hoists With 3.6KW Lifting Power
Specifications
Model Number :
EQ7.5-03
Lifting speed :
2.3m/min
Certification :
CE, ISO 9001:2015
Running speed :
11m/min
MOQ :
1 Set
Delivery Time :
10-15 working days for stock, 25-30 days for production
Operating motor power :
0.75KW
Payment Terms :
L/C,T/T
Price :
USD,250-500/SET
Voltage :
380V
Supply Ability :
200 Sets per Month
Place of Origin :
Zhejiang, China
Lifting power :
3.6KW
Packaging Details :
KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Brand Name :
KOEO
Lifting weight :
7.5T
Description
7.5T Three Chain Trolley Electric Crane Hoist with 3.6KW Lifting Power and 11m/min Running Speed
Product parameters
Model Name Lifting weight Lifting speed running speed Lifting power running speed work duty Insulation class Order quantity Price (USD)
EQ 7.5-03 EQ Series Running type single speed 7.5T three chain 5T 2.3m/min 10m/min 3.6KW 0.75KW M5 F 1 1770
Logistics information
Gourd size is long*width*height (CM) Gourd Mao (KG) Delivery period
76*55*60 270 7

Three Chain Trolley Hoist 7.5T Electric Trolley Hoists With 3.6KW Lifting Power

Technical Parameters
Type Capacity (Ton) Standard Hoist Height (m) Hoist Speed (m/min) Lifting Motor Power (kW) Rotation Speed (r/min) Phase Voltage (V) Frequency (Hz) Operating Motor Power (kW) Rotation Speed (r/min) Running Speed Phases Voltage (V) Frequency (Hz) H-beam Rail (mm)
EQ7.5-03 7.5 4 2.3 3.6 1440 3 380 50 0.75 1440 11/21 3 380 50 100–178

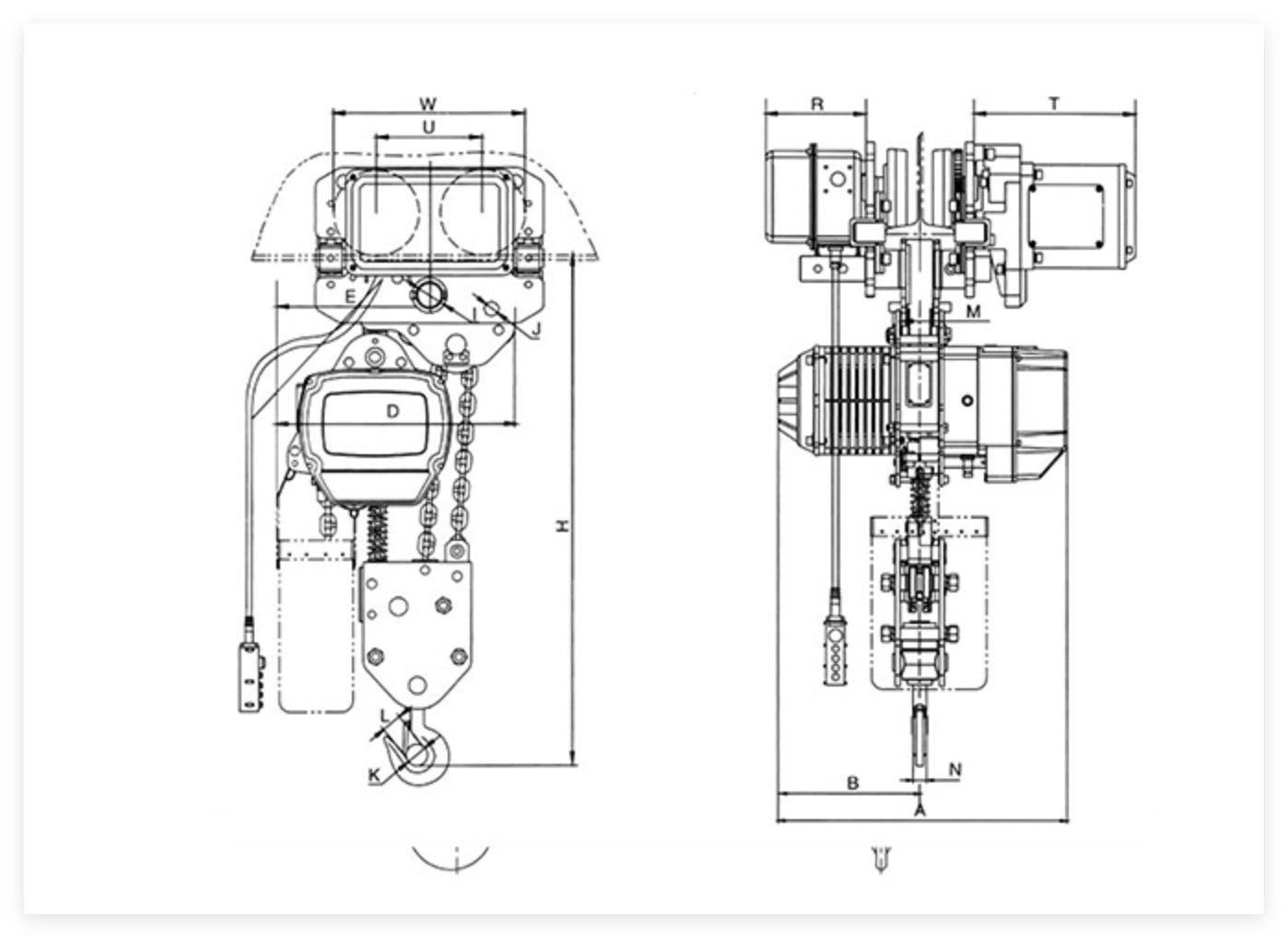

Size Specification Table
Type Capacity (Ton) H A D E I J K L M N W U R T Chain The Min Gyration Radius (mm)
EQ7.5-03 7.5 1165 680 505 320 Φ54 Φ31 Φ85 80 85 55 295 156 142 231 Φ11.2 3000
