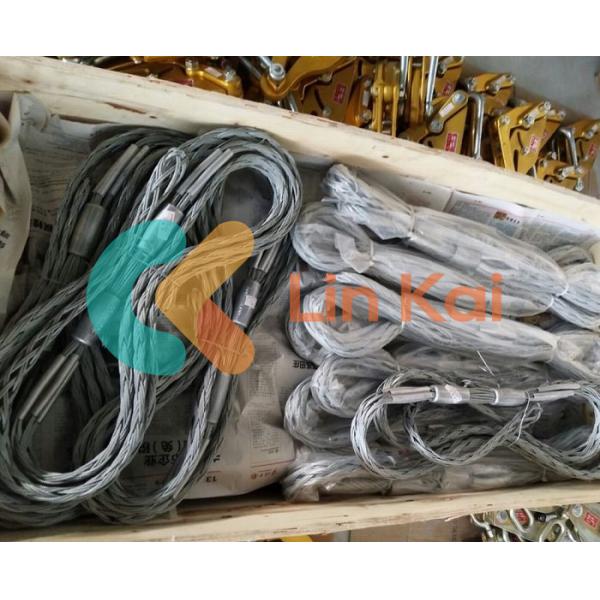

Optic Fiber Cable Socket Grips For OPGW Diameter 7-22mm
Optic Fiber Cable Socket Grips For OPGW Diameter 7-22mm
Optic Fiber Cable Socket Grips For OPGW Diameter 7-22mm
Optic Fiber Cable Socket Grips For OPGW Diameter 7-22mm
Specifications
Brand Name :
NBLK
Model Number :
SLE(S) ,SLE
Place of Origin :
NINGBO CHINA
Certification :
ISO CE
MOQ :
10
Price :
Get the latest
Packaging Details :
Wooden case packed
Delivery Time :
3-7days
Payment Terms :
T/T
Supply Ability :
4000 sets/month
Broken load (KN) :
Max 75KN
Name :
OPGW Socket Pulling Grips
OPGW Diameter :
7-22mm, Or Customized
Packing type :
Wooden Case
Model :
SLE,SLE(S)
Appication :
OPGW Stringing Operations
Rated loac :
10-25KN
Description

Product Description:

Mesh socket joints are utilized to pull overhead conductors, OPGW cables, earth wires, as well as underground power or telecommunication optic fiber cables. These joints are crafted from durable galvanized steel wire and are tailored to various cable specifications.

The head-type and double head-type temporary mesh sock joints are custom-built for the temporary linkage of aluminum, steel, or copper conductors to the pulling rope.

MESH SOCKET JOINTS FOR OPGW AND EARTH WIRE

Single head Item No. Double head Item No. Model Cable Diameter (mm) Load (KN)
With protector w/ protector Rated Break
17141 17141S SLE(S)-1 Φ 7-11 10 30
17142 17142S SLE(S)-1.5 Φ 11-15 15 45
17143 17143S SLE(S)-2 Φ 15-18 20 60
17144 17144S SLE(S)-2.5 Φ 18-22 25 75

Features:

The product is made of high-quality steel that has undergone heat treatment and galvanization for a smooth surface finish.

It consists of two ends - one end is a galvanized steel wire rope, while the other end connects to the conductor.

Optic Fiber Cable Socket Grips For OPGW Diameter 7-22mm

Technical Parameters:

The mesh sock joints are specially crafted for the pulling or installation of OPGW cable or GSW cable during transmission line stringing operations. Fabricated from high-strength galvanized steel wire, these joints are designed with variable pitch steel wires that ensure an effective distribution of gripping force on the OPGW or earth wire.

The Temporary Mesh Sock Joints have a length of 1.2m and are utilized for securing OPGW or Earth Wire. These pulling grips are intricately braided from strands of high-strength galvanized steel wire, enabling them to firmly hold the OPGW cable while safeguarding its surface.

Applications:

Application: OPGW Socket Joints are designed for gripping Optical Ground Wire (OPGW) or Galvanized Steel Wire (GSW) during line stringing operations. The product is constructed from high-strength galvanized steel wire, allowing it to smoothly pass through stringing blocks and tension wheels.

The Mesh Socket Joints are crafted from high-strength galvanized steel wire that is intricately braided in a soft manner. They are further protected by aluminum and copper sleeves. These sleeves serve the dual purpose of safeguarding the conductor and preventing damage to the Mesh Socket Joints from the OPGW head.

Customization:

Product Customization Services for the OPGW Installation Tools:

Brand Name: NBLK

Model Number: SLE(S), SLE

Place of Origin: NINGBO CHINA

Certification: ISO CE

Minimum Order Quantity: 10

Price: Get the latest

Packaging Details: Wooden case packed

Delivery Time: 3-7 days

Payment Terms: T/T

Supply Ability: 4000 sets/month

OPGW Diameter: 7-22mm, Or Customized

Packing Type: Wooden Case

Model: SLE, SLE(S)

Broken load (KN): Max 75KN

Name: OPGW Socket Pulling Grips
