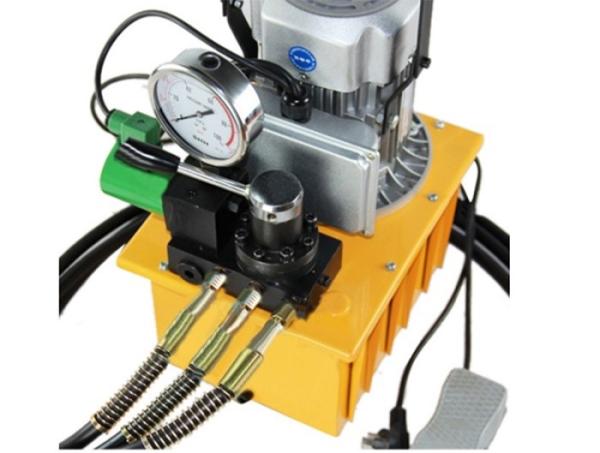

Single Action Type High Pressure Electric Pump 220W / 380W 700 Bar 50HZ
Single Action Type High Pressure Electric Pump 220W / 380W 700 Bar 50HZ
Single Action Type High Pressure Electric Pump 220W / 380W 700 Bar 50HZ
Single Action Type High Pressure Electric Pump 220W / 380W 700 Bar 50HZ
Single Action Type High Pressure Electric Pump 220W / 380W 700 Bar 50HZ
Single Action Type High Pressure Electric Pump 220W / 380W 700 Bar 50HZ
Specifications
Brand Name :
Linkai
Model Number :
ZCB6-5-A3
Certification :
ISO CE
Place of Origin :
NINGBO CHINA
MOQ :
1set
Price :
get the latest
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
200set/day
Delivery Time :
3-5 work days
Packaging Details :
wooden case
model :
ZCB6-5-A3
Type :
single action
Driven :
hydraulic motor
item no :
16153-2
packing :
wooden case
Name :
Electric Hydraulic pump
Description

700bar 50HZ 220W/380W High Pressure Electric Pump Electrical Hydrulic Pump

Hydraulic electrical pump, high pressure electrical pump, protable hydraulic pump

Item number

 16153-1 16153-2

Model

 ZCB6-5-AB ZCB6-5-A3

Type

 double-acting single-acting

Rated Output

 750W 750W

Voltage

220W/380W

 220W/380W

Rated Pressure

 70Mpa 70Mpa

Flow Rate

 low pressure 2.5L/Min low pressure 2.5L/Min
high pressure0.52L/min high pressure0.52L/min

Oil Capacity

 8L 8L

Frequency

 50-60HZ 50-60HZ

(KG)

Weight

approx.N.W26KG

G.W30KG

approx.N.W26.65KG

G.W29KG

Package

 wooden case wooden case

700bar 50HZ 220W/380W High Pressure Electric Pump Electrical Hydrulic Pump

1. Single-acting type high pressure electric pump

2. 750W rated output, and 8L oil capacity

3. 50-60HZ

4. working with hydraulic compressor, 60T, 100T

70 Mpa Portable Single Action Hydraulic Motor Driven Pump Hydraulic Electric Pump

High and low speed two stage design is for quick oil output. Turbine oiil absorption could ensure reaching max effective oil volume.

Over pressure safety valve unit could avoid over pressure damage.At 700kg/cm2,automatically release.
