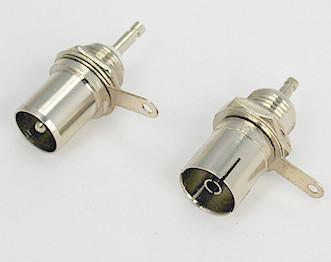

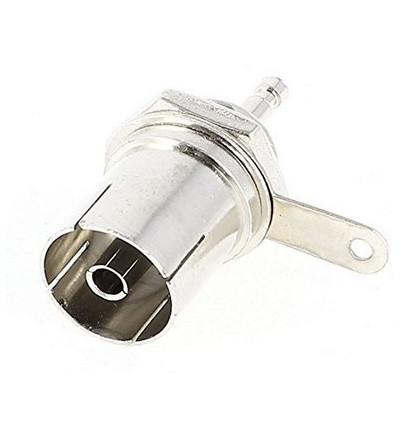

Terminal RCA Male Female Cable Connector Bulkhead Receptacle Solder Pot
Terminal RCA Male Female Cable Connector Bulkhead Receptacle Solder Pot
Terminal RCA Male Female Cable Connector Bulkhead Receptacle Solder Pot
Terminal RCA Male Female Cable Connector Bulkhead Receptacle Solder Pot
Terminal RCA Male Female Cable Connector Bulkhead Receptacle Solder Pot
Terminal RCA Male Female Cable Connector Bulkhead Receptacle Solder Pot
Specifications
Brand Name :
SINOWELL
Model Number :
VK20139
Certification :
RoHs; CE
Place of Origin :
Jiangsu,China(Mainland)
MOQ :
5000pcs
Price :
$0.09/pc--$2.99/pc
Payment Terms :
D/P; T/T; Western Union
Supply Ability :
50000pcs per day
Delivery Time :
Depend on your quantity
Packaging Details :
polybag,According customer’s request
Type: :
F
gender: :
female
Connector Material: :
Zinc alloy
Contact Plating: :
Nickel Male Crimp pal connector
Description

Terminal RCA Male Female Cable Connector Bulkhead Receptacle Solder Pot​

Specifications:

Pal female bulkhead

material: copper or mixer copper,zinc

Description:

Electric Data

Characteristic Impedance

75ohm

Frequency Range

0-1GHz

Working Voltage

500 VRMS(max at sea level)

Dielectric Withstanding Voltage

1500 VRMS(min at sea level)

Contact Resistance

Inner: 10 milliohms(max)

Outer: 5 milliohms(max)

Insulation Resistance

1000 megohms(min)

Mechanical Data

Durability Mating

1000 Cycles min.

Material Data

Connector Parts

Materials

Plating Finish

Body

Brass

Gold or Nickel

Female Pin

Beryllium Bronze or Phosphor Bronze

Gold or Nickel

Insulators

PTFE

N/A

Environmental Data

Temperature Range

-30~+80℃

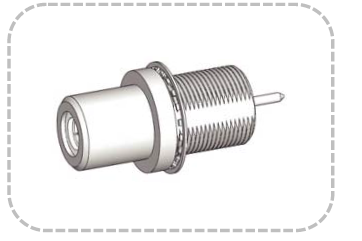

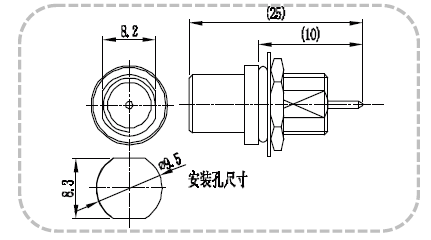

Terminal RCA Male Female Cable Connector Bulkhead Receptacle Solder PotTerminal RCA Male Female Cable Connector Bulkhead Receptacle Solder Pot

Competitive Advantage:

  1. Best quality and service for any orders.
  2. .Every step of your order will be informed to you in time.
  3. Please feel free to tell us what's the problem you met anytime you need.

Applications:

RF

Shipping Details:

1. By air

Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.

2. By sea

Shipments will be operated under FOB conditions.
