Specifications
Brand Name :
Huiyunhai
Model Number :
HYH-HC
Certification :
UL, RoHS, REACH, SGS, ISO
Place of Origin :
Shenzhen of China
MOQ :
Negotiable
Payment Terms :
T/T, Western Union
Packaging Details :
standard export carton
Supply Ability :
3 million meters per month
Product name :
Expandable Braided sleeving
Diameter :
custom
Feature :
Heavy duty and flexible
Color :
optional, custom
Function :
Reduce harness weight
Certificates :
UL, CSA, ROHS, REACH
Price :
Negotiable
Description

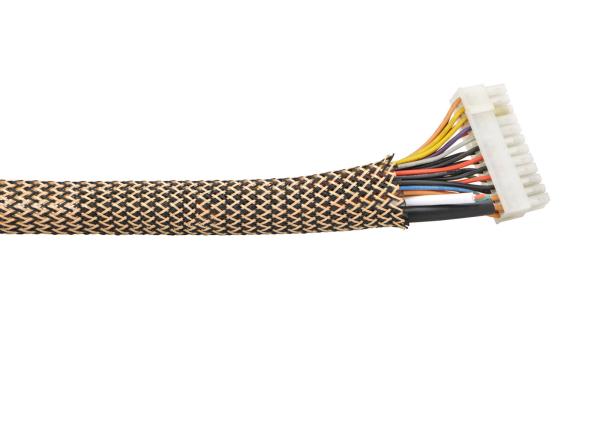

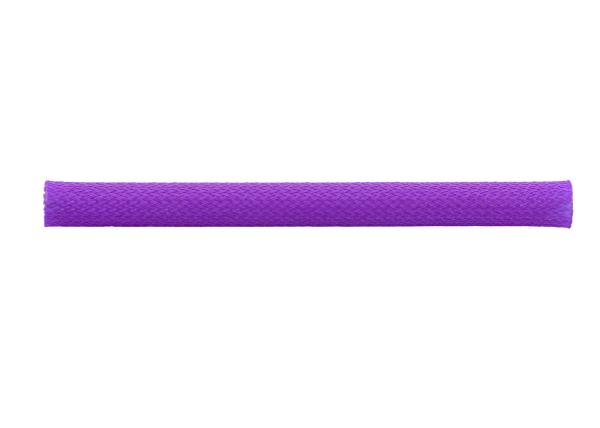

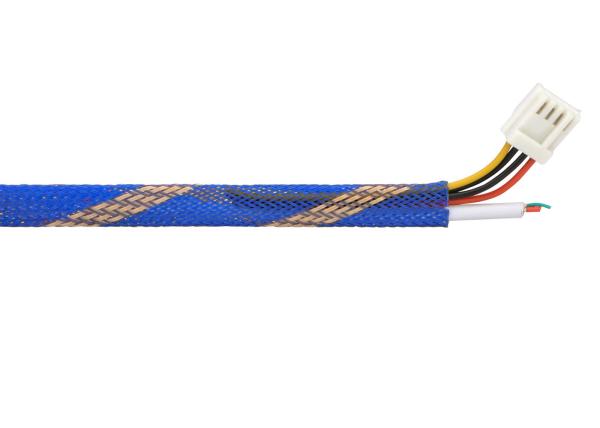

Hot Cut Flexible Expandable Braided sleeving for Cable Wire Protection

PET Expandable Braided Sleeving is designed from durable environment friendly PET monofilament yarns and the unique braided construction enables quick and easy installation over large connectors. These sleevings are used in wire harnessing in industries, hose and cable protection for the automotive, heavy equipment and marine industries. And generally commercial applications such as personal computers, automotive, motorcycling, bicycling, flyfishing and scuba diving.

Product description of braided sleeves

Flame Resistant Thermal Wire Insulation PET Braided Sleeve is braided with environment-friendly polyester monofil. (PET, PA6, PA66, PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.

Features of braided sleeves

> Flame-retardant
> Easy, Cost & Labor Effective Installation
> More Flexible Than Split Convoluted or Spiral Wrap
> Cuts easily with hot knife or scissor
> Cut & abrasion resistant
> 25% Edge Overlap
> Chemical inert
> ROHS compliant
> UV resistant
> Cost effective wrap around solution
> Retains shape & rigidity throughout operating temperature range (-40°C to 125°C)
> Melt Temp 230°C

Technical Data:

Mono filament Thickness 0.25mm or 0.20mm
Recommended Cutting Hot Knife
Tensile Strength 100,000psi
Elongation 20%
Max Temperature 155C
Melt Temperature 250C
Copper rust

No Effect
