Wire Protection Metal Braided Cable Sleeve , Braided Wiring Harness Covering
Wire Protection Metal Braided Cable Sleeve , Braided Wiring Harness Covering
Wire Protection Metal Braided Cable Sleeve , Braided Wiring Harness Covering
Wire Protection Metal Braided Cable Sleeve , Braided Wiring Harness Covering
Specifications
Brand Name :
Huiyunhai
Model Number :
HYH-TS
Certification :
UL, RoHS, REACH, SGS, ISO
Place of Origin :
Shenzhen of China
MOQ :
Negotiable
Packaging Details :
standard export carton,special packing
Function :
Cable Shielding and Conducting
Width :
optional
Material :
tinned copper
Appliacation :
protecting of electrical cables
Certificates :
UL, CSA, RoHS
Tensile Strength :
more times
Price :
Negotiable
Description

Abrasion Resistance Tinned Copper Braided Sleeving For Wire Protection

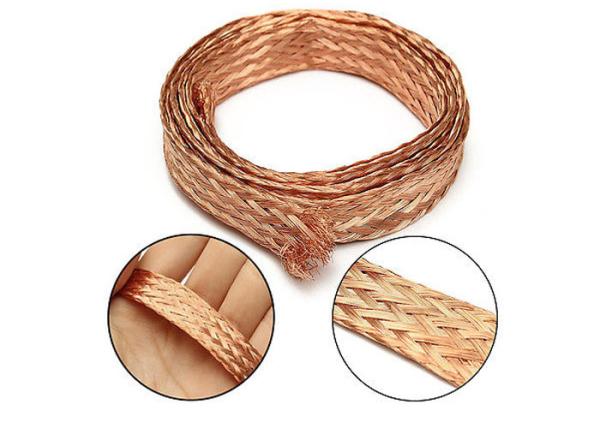

Product Description of tinned copper sleeve:

Strong metal fibers made from tinned copper create our Metal Braided Sleeving that can be used in automotive applications to dress-up engines, hose support or wire protection.

The properties of Tinned Copper Metal Braided Sleeving not only protects against cuts and abrasion, but also EMI, RFI and ESD.


Usage

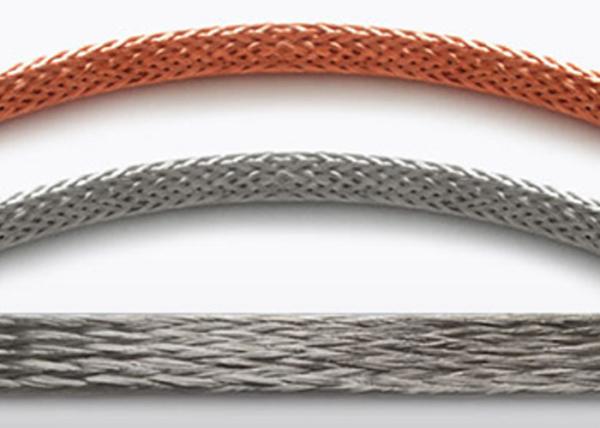

Flat braid is typically used as a flexible and durable ground strap. High currents (Amps) are easily carried in low voltages. Tubular braid is made with individual ends that conform to ASTM B33 specification. The braid is manufactured to provide shield coverage of 90% minimum

Braided from 36 AWG (0.005") tinned copper wire. Values shown are for bare cable in free air at 30 deg. C (86 deg. F) and are for reference use only. Actual values depend upon permissible temperature rise, voltage drop, and other conditions of service.

Tinned copper braided wire is used as flexible jointing wire of electric appliance, switch appliance electric stove and storage battery etc. such as Cable, CRT Assembly Wire, Television, Computer Monitor.ETC signal pickup instruments. Braided copper wire can be provided rolled flat or in tubular form. Flat braids are generally used for flexible connections, electrical leads and grounding straps.

Functions of Tinned Copper Braided Sleeving:

NAME 3/4" Tinned Copper Metal PET Expandable Braided Sleeving For Cable Harness
Introduction

6MM Stainless steel 304 metal braided sleeving is a high temperature, heat and flame resistant thermal insulating sleeve that will stand 900°C continuous exposure. The base high temperature braided fiberglass sleeve is fabricated from high quality type E fiberglass that will not burn. The sleeve is then coated with a vermiculite dispersant adds abrasion resistance and anti-fray properties
TYPE EMI, RFI, ESD Protection
Material Tinned Copper
Application

EMI, RFI, ESD protection

Grounding straps

Engine dress-up

Military applications

Extreme blowout protection

Expands for easy installation
Specification By customers design

Wire Protection Metal Braided Cable Sleeve , Braided Wiring Harness Covering

Wire Protection Metal Braided Cable Sleeve , Braided Wiring Harness Covering
