Ultra-Compact Italian Wafer Design Adopts Italian thin wafer flange structure, ultra-short valve body length, greatly saves pipeline installation space, ideal for compact equipment and dense piping layout scenarios. ]

Premium Stainless Steel Body Forged SS304/SS316L valve body, high tensile strength, PN16 pressure resistance, excellent corrosion resistance for water, steam, oil, weak acid and alkali media.

Full Port Flow Design Full bore floating ball structure, small fluid resistance, no medium retention, stable conveying performance, effectively avoiding pipeline blockage.

Bubble-Tight PTFE Sealing Food-grade PTFE seat sealing achieves zero leakage shut-off, wide working temperature range from -20℃ to 180℃, wear-resistant, aging-resistant and long service life.

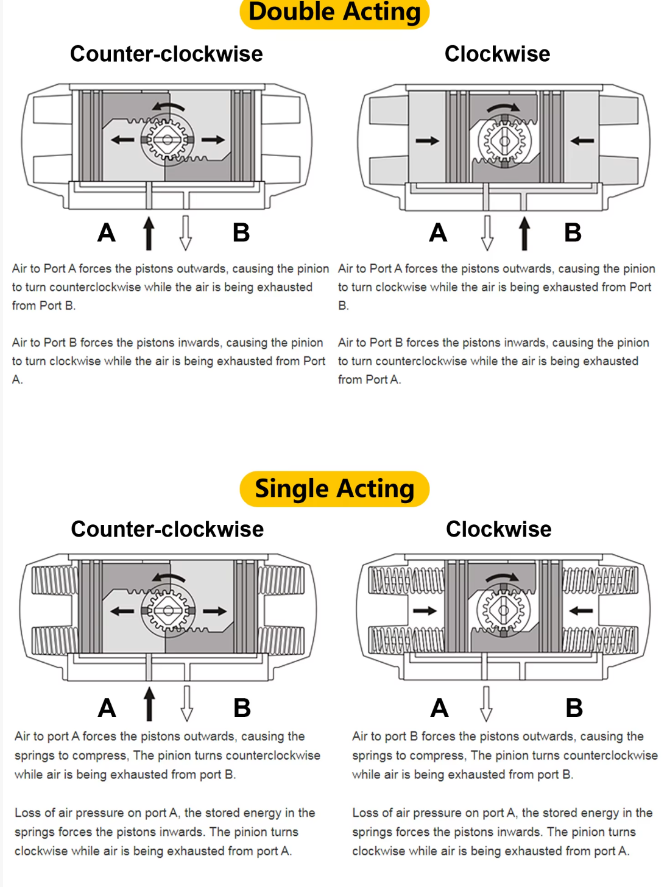

Reliable AT Pneumatic Actuator Aluminum alloy rack & pinion actuator, optional double acting / spring return single acting (fail-safe design), fast 90° on-off within 1 second, with position indicator and stroke fine-tuning bolts.

ISO5211 High Mounting Platform Standard ISO5211 top flange, convenient direct installation of solenoid valve, limit switch and positioner, easy to realize remote automatic PLC control.

IP65 Waterproof & Dustproof Actuator with IP65 protection grade, stable operation in humid, dusty indoor and outdoor workshops, ATEX explosion-proof configuration is available for flammable environments.

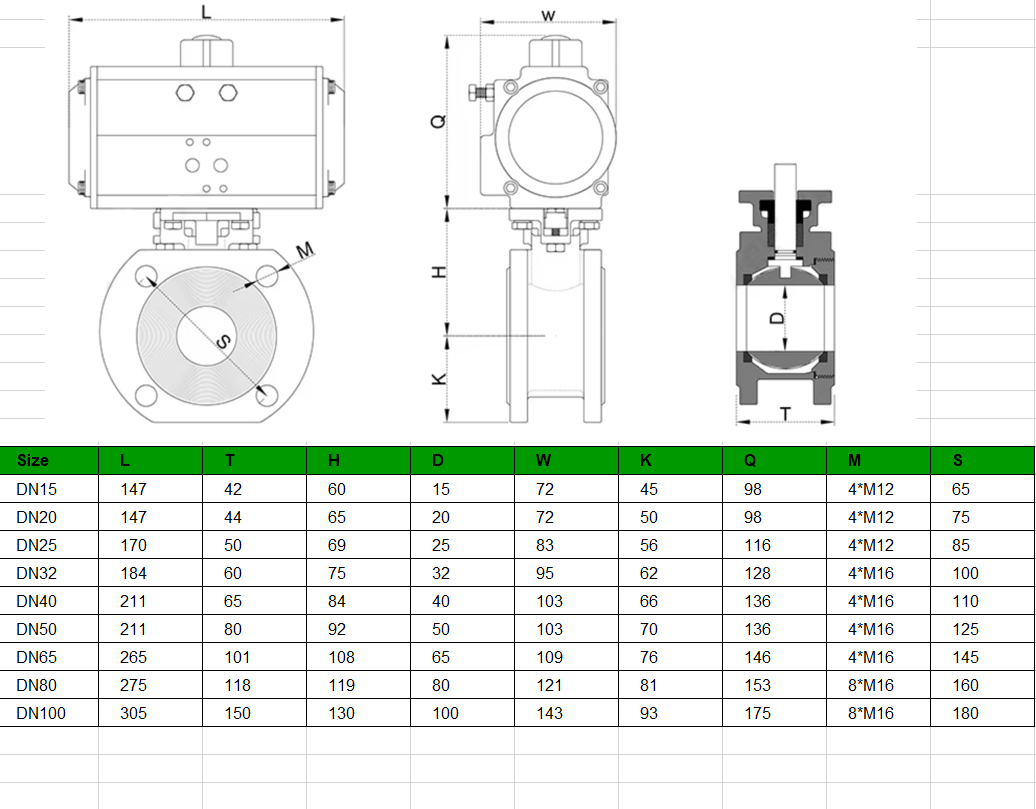

Wide Size Range & Custom Service Complete specifications from DN15 to DN100, support OEM/ODM customization for actuator type, accessories, material and pressure grade, provide one-stop valve automation solution.

Qingdao Yida Tongtu Machinery Technology Co., Ltd., in the beautiful coastal city of Qingdao. Specializing in high-growth ventures such as valves and power equipment, the company is dedicated to providing comprehensive solutions for industries including petroleum, chemicals, and water utilities, empowering clients to grow and achieve success.
We are a cutting-edge trading enterprise specializing in one-stop industrial valve matching, deeply cultivating gate valves, globe valves, ball valves, check valves, butterfly valves, etc. Our main products include American standard API, German standard DIN, and Japanese standard JIS, suitable for various industries such as chemical, petroleum, gas, power, metallurgy, etc.
We selects qualified factories from the source, strictly controls product quality, adheres to the direct supply mode, and relies on the advantages of a streamlined and efficient team to achieve rapid implementation of customer demands. At the same time, we can provide customers with standard spot goods, non-standard customization, OEM, project batch matching, and a complete set of export documentation services, becoming a long-term stable valve procurement partner for customers with professionalism, reliability, and high cost-effectiveness.
