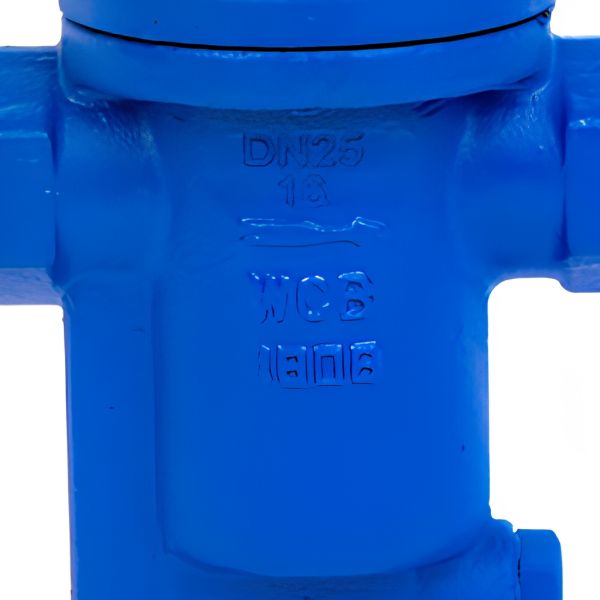

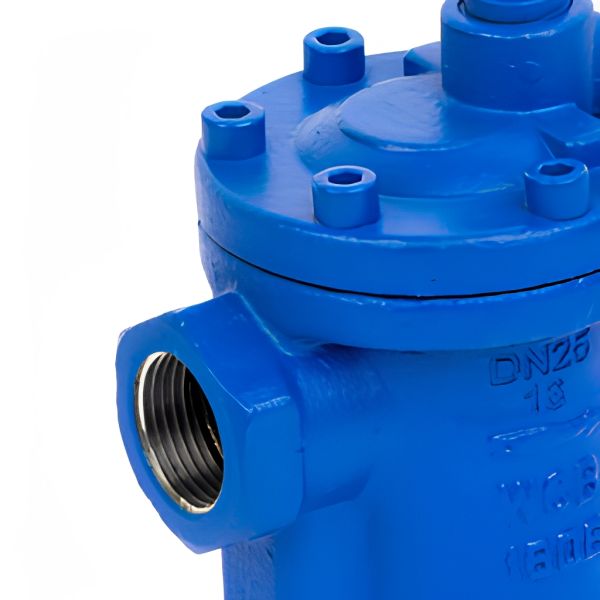

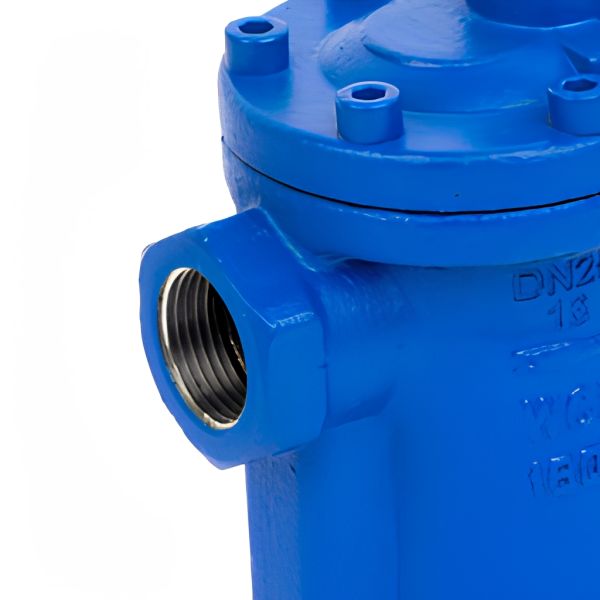

Designed with an inverted bucket mechanism that utilizes the density difference between steam and condensate water, this steam trap achieves precise on-off control, ensuring zero steam leakage while efficiently discharging condensate and air. This unique design significantly reduces steam waste, improving the thermal efficiency of the entire steam system and helping industrial plants achieve substantial energy savings and lower operational costs over time.

Unlike ball float steam traps that are prone to damage from water hammer, this inverted bucket steam trap features a special structural design that offers excellent water hammer resistance. The internal bucket and lever mechanism are protected from sudden pressure shocks, ensuring continuous and reliable operation even in steam systems with unstable pressure conditions, such as steam mains and batch process equipment.

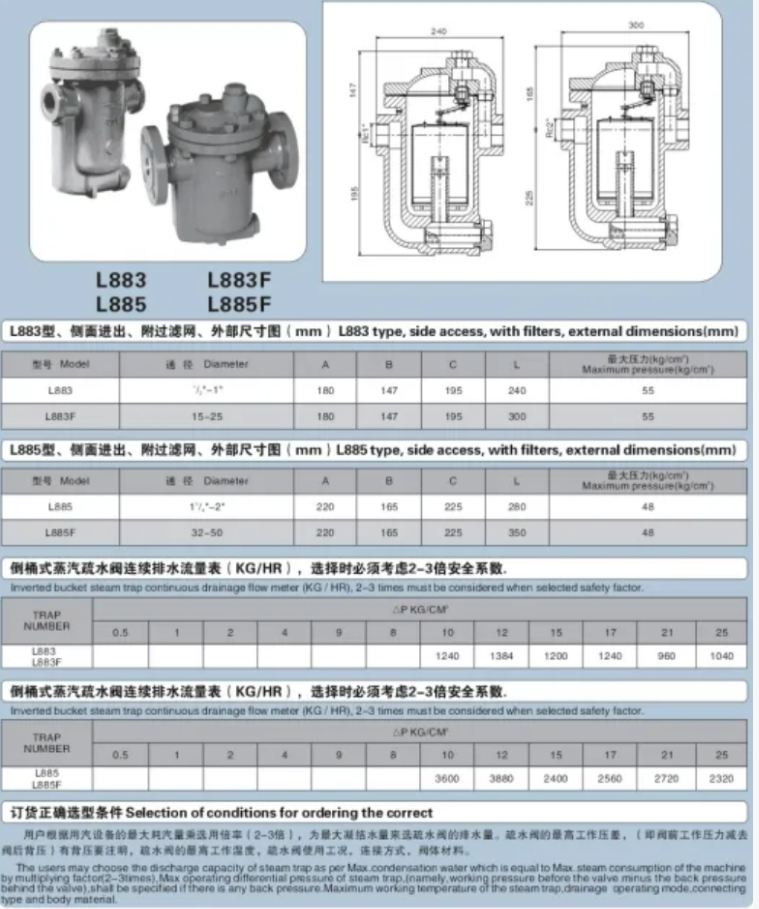

Available in L883 and L885 series with different specifications, this inverted bucket steam trap offers a wide continuous drainage capacity ranging from 1040kg/H to 3880kg/H, and supports a maximum working pressure of up to 55kg/cm². It can adapt to various pressure differentials (from 0.5kg/cm² to 25kg/cm²), making it suitable for different industrial steam applications from small process equipment to large boiler systems.

Featuring a top-removable bonnet design, this inverted bucket steam trap allows for easy disassembly and maintenance without removing the entire valve from the pipeline, reducing downtime and maintenance costs. The internal mechanism is modular and replaceable, and optional built-in strainers can effectively filter out impurities in the steam pipeline, preventing valve clogging and ensuring smooth operation over long periods.

Qingdao Yida Tongtu Machinery Technology Co., Ltd., in the beautiful coastal city of Qingdao. Specializing in high-growth ventures such as valves and power equipment, the company is dedicated to providing comprehensive solutions for industries including petroleum, chemicals, and water utilities, empowering clients to grow and achieve success.
We are a cutting-edge trading enterprise specializing in one-stop industrial valve matching, deeply cultivating gate valves, globe valves, ball valves, check valves, butterfly valves, etc. Our main products include American standard API, German standard DIN, and Japanese standard JIS, suitable for various industries such as chemical, petroleum, gas, power, metallurgy, etc.
We selects qualified factories from the source, strictly controls product quality, adheres to the direct supply mode, and relies on the advantages of a streamlined and efficient team to achieve rapid implementation of customer demands. At the same time, we can provide customers with standard spot goods, non-standard customization, OEM, project batch matching, and a complete set of export documentation services, becoming a long-term stable valve procurement partner for customers with professionalism, reliability, and high cost-effectiveness.
