Specifications
Brand Name :
WKDQ
Model Number :
WHA
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
Zhejiang , China
MOQ :
1PC
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Model No. :
WHA
Housing material :
STEEL+PLASTIC
Place of origin :
Zhejiang , China
Description

Heavy Duty Connector 1.0-2.5mm² Horizontal Butt

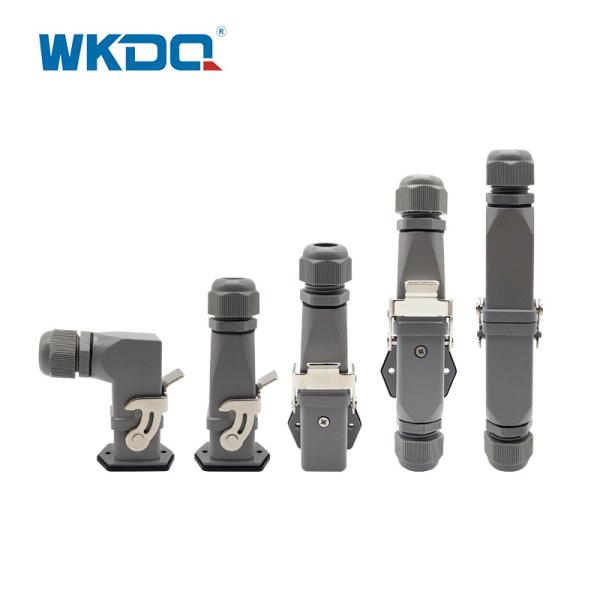

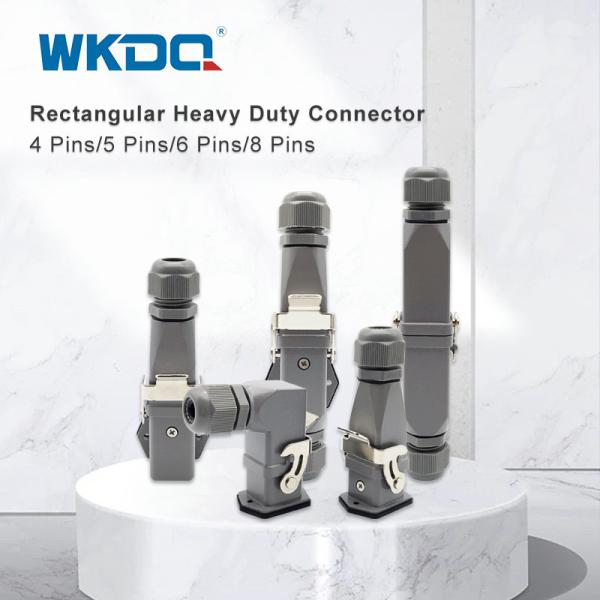

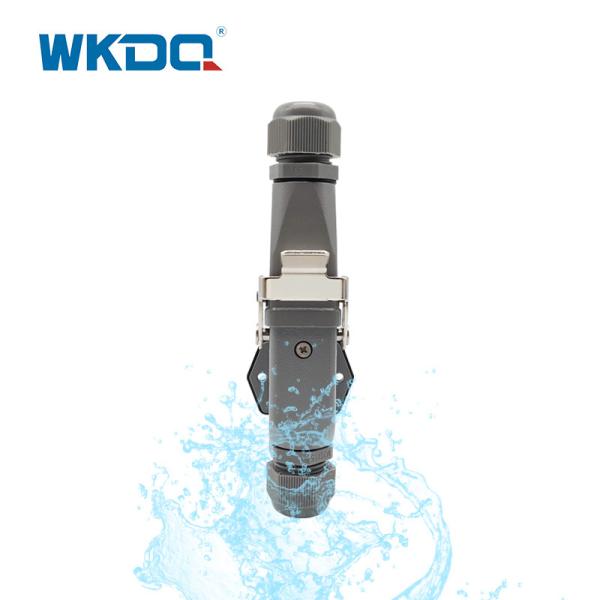

WHA Series Heavy Duty Connector 4 Pin, 5 Pin, 6 Pin, 10 Pin , It's special designed for harsh environment, Protecting the Famel and male connector inside from wind, sand, dust or water.


Voltage/Current: 500V/16A
Surface: Sliver-plated
Contact resistance: ≤1m Ω
Cross section: 1.0-2.5mm² (AWG 18-14) For 4/5 contacts
0.14-4.0mm² (AWG 26-12) For 6/8 contacts

No. PART NO. Order No. Entry Side Number of contact Description Water-proof connector
1 WHA04D 100506005 Top entry 4 3+1ground PG11
2 WHA05D 100506006 Top entry 5 4+1ground PG11
3 WHA06D 100506007 Top entry 6 5+1ground PG11
4 WHA07D 100506008 Top entry 8 7+1ground PG11
5 WHA04C 100506001 Side entry 4 3+1ground PG11
6 WHA05C 100506002 Side entry 5 4+1ground PG11
7 WHA06C 100506003 Side entry 6 5+1ground PG11
8 WHA07C 100506004 Side entry 8 7+1ground PG11
9 WHA04W 100506009 Horizontal 4 3+1ground PG11
10 WHA05W 100506010 Horizontal 5 4+1ground PG11
11 WHA06W 100506011 Horizontal 6 5+1ground PG11
12 WHA07W 100506012 Horizontal 8 7+1ground PG11
13 WHA04WD 100506013 Horizontal Butt 4 3+1ground PG11
14 WHA05WD 100506014 Horizontal Butt 5 4+1ground PG11
15 WHA06WD 100506015 Horizontal Butt 6 5+1ground PG11
16 WHA07WD 100506016 Horizontal Butt 8 7+1ground PG11
17 WHA04DJ 100506013 Docking 4 3+1ground PG11
18 WHA05DJ 100506014 Docking 5 4+1ground PG11
19 WHA06DJ 100506015 Docking 6 5+1ground PG11
20 WHA07DJ 100506016 Docking 8 7+1ground PG11
