JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
JPT 16-PE Din Rail Push In Earth Terminal Block PA66 16mm2 Non Flammable
Specifications
Brand Name :
WKDQ
Model Number :
JPT1 6-PE
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Brand names :
WKDQ,,other brand is available
Color of housing :
Green-Yellow
Material of housing :
Non-flammable Nylon PA66,
Material of conductor :
Tin plated brass conductor
Cross section,solid cable :
0.5-25mm²
Cross section,soft cable :
0.5-16mm²
Packing unit :
20PCS/BOX
Weight :
25g/pc
Description

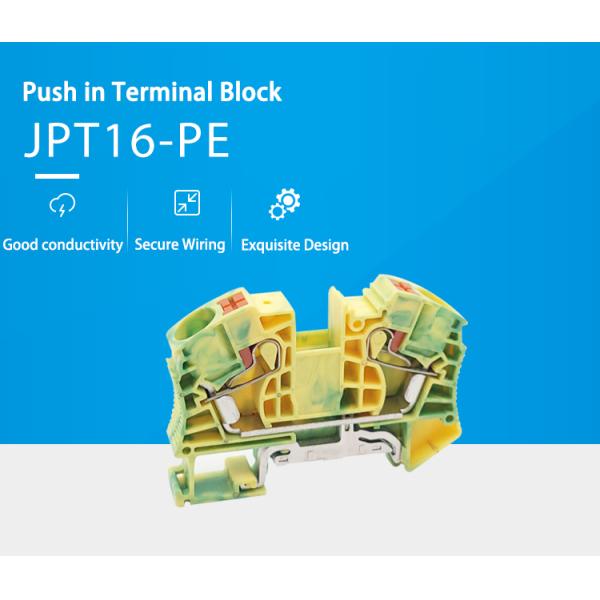

JPT16-PE Din Rail Push In Earth Terminal Block 16mm2

1. DESCRIPTION

The Push-in connection terminal blocks from the CLIPLINE complete system have been developed for direct conductor

connection and offer a wide range of application options. Easy handling and direct, tool-free connection with up to
50 percent lower insertion forces are the key advantages of this terminal technology. When rigid conductors from
0.25 mm2 or conductors with ferrules from 0.34 mm2 are inserted, the contact spring is automatically
opened. This provides the required pressure force against the current bar

.

Suitable for various applications.

Made from anti-flaming Nylon PA 66, Copper material

Connecting, build bridges and labeling large or small conductor cross sections easy for feed through terminal blocks.

Wiring can be handled in a limited space thanks to the compact design and front entry connection.

With universal foot which can be installed on 35mm Standard Din Rail.

Build electric potential distribution by using plug-in bridges in the terminal center.

Available in all accessories: End covers, End Stoppers,Marker strips, Marker carrier, Plug-in bridge, etc.

2.TECHNICAL PARAMETERS

Model Number JPT 16-PE
Color Green-Yellow

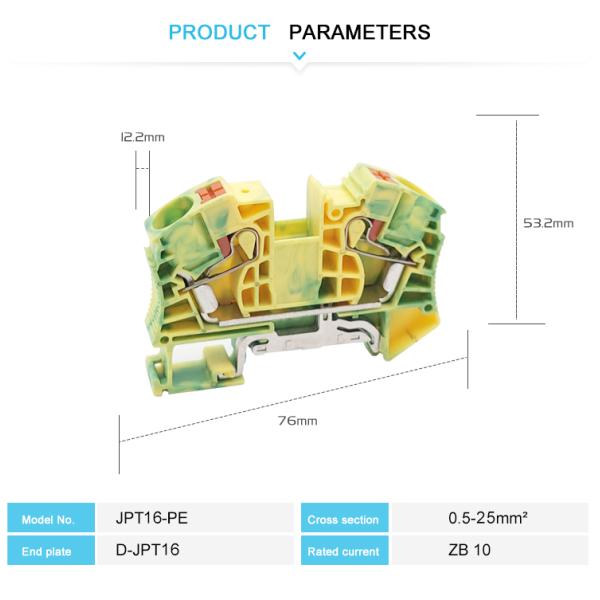

Length/Height/Wide (mm)
L75.4/H52.6/W12.2
Connection method Push in connecting
Material Nylon PA66
Rated Voltage/Current 1000V/57A
Cross section, solid/soft Cable 0.5-25mm² / 0.5-16mm²
Conductor Size 20-5 AWG
Mounting Type NS 35/7.5
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 25g/pc, 20PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
