Specifications
Brand Name :
WONKEDQ，WKDQ
Model Number :
JPTTB 2.5
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
box
Model No. :
JPTTB 2.5
Color :
Grey,Blue, other color can be customized
Connection method :
Push-in connection
Country of origin :
China
Standard :
IEC 60947-7-1
Material :
Flame resistant Nylon PA66 V0
Description

JPTTB 2.5 Double Level Terminal Block Din

High Quality JPTTB 2.5 Push-in Connection Feed Through DIN Rail Terminal Block

1. DESCRIPTION:

The PT connection terminal blocks are subjected to tests which go beyond the basic terminal block standard, enabling them to be used in all sectors of industry, such as energy supply, transportation technology, process engineering, in particular the chemical and petrochemical industry or shipbuilding. JPT push-in connection terminal blocks have been developed for direct conductor connection. Front connection design allows the screwdriver and wire to enter from the same direction, providing easy wiring in tight spaces,Metal surfaces are protected with a lead-free, galvanic nickel or tin plating. As a result, the electrical conductors’ temperature remains cool

The compact design of the push in modular terminal block and the direct push-in connection enable easy

Convenient insertion, thanks to 50% lower insertion force.

Safe wiring and operation, thanks to the color-coded push button.

The push button permits easy conductor release using any type of tool, without direct contact with live parts.

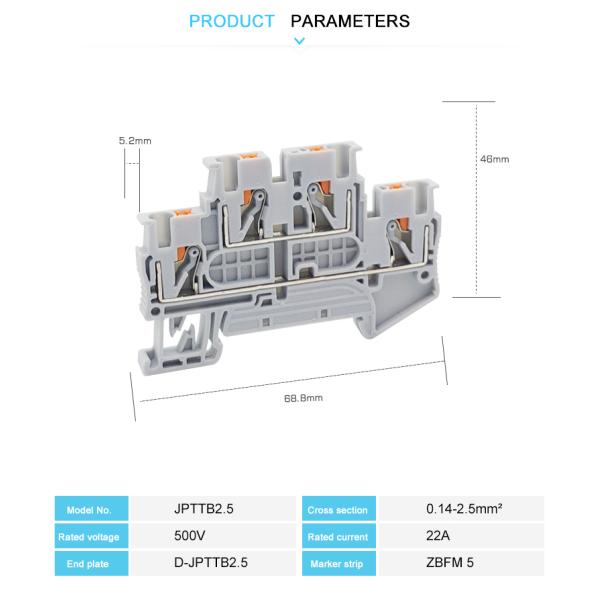

Technical Parameters

Model No. JPTTB 2.5
Color Grey,Blue, other color can be customized
Length/Height/Wide (mm) 68/47.5/5.2
Connection method Push-in connection
Material Flame resistant Nylon PA66 V0
Rated Voltage/Current 500V/22A
Cross section, solid/soft Cable 0.14-4mm²/0.14-2.5mm²
Conductor Size 26-12AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO WonkeDQ, LOGO can be customized
Packing Detail 10.23g/pc, 50PCS/BOX
Certification CE/RoHS/CQC/ISO 9001
