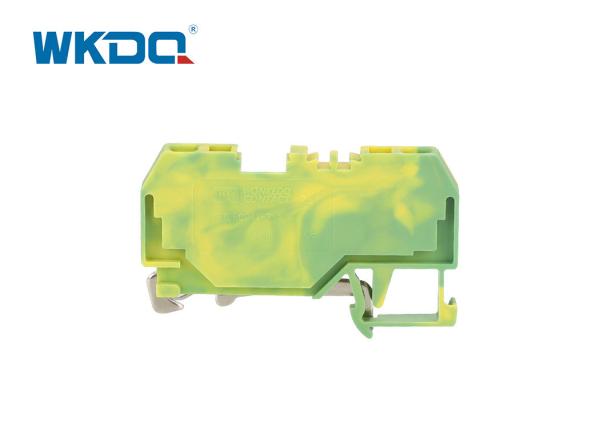

281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
Specifications
Brand Name :
WONKEDQ
Model Number :
281-907
Certification :
CE/RoHS/CQC/ISO 9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Paypal, Western Union, etc
Delivery Time :
2-7 days
Packaging Details :
Box
Voltage :
800V
Current :
32A
Length :
59.5
Height :
37.5
Wide :
6
Conductor Size :
28-12 AWG
Description

281-907 Earthing DIN Rail Terminal Blocks

281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel

1. DESCRIPTION

Equipped with the unique spring cage connection technology, the rail-mounted terminal blocks offer a wide variety of use in industrial and hazardous applications, as well as in building automation. Thanks to their small size, more room is left for wiring in the control cabinets and terminal boxes.

  • Made from flaming retarding Nylon PA 66 with Copper conductors.
  • Can be fast installed, the spring conductors are against vibration.
  • It is maintenance-free for long time using.

  • Long durable time.

  • convenient and safe operation.

  • Safe and reliable connection.

  • Automatic contact spring.
  • Shock resistance & Corrosion resistance.

  • All types of materials are guaranteed in quality.

  • Our terminal blocks are preferably used in electrical machine control systems

  • With combine foot which can be installed on 35mm Universal Din Rail.
  • Accessories available: End covers, End Stoppers,Marker strip, Bridges, etc.

2.TECHNICAL PARAMETERS

Model No. 281-907
Color Yellow/Green other color can be customized
Length/Height/Wide (mm) 59.5/37.5/6
Connection method Spring-cage connection
Material Nylon PA66
Rated Voltage/Current 800V/32A
Cross section 0.08-4 mm²
Conductor Size 28-12 AWG
Mounting Type DIN Rail NS 35
Standard IEC 60947-7-1
LOGO Customized logo are supported
Packing Detail 11.92g/pc, 50PCS/BOX,2000PCS/CTN
Certification CE/RoHS/CQC/ISO 9001
3.RELATED PRODUCTS

  • Installation Rail Mount Terminal Blocks

  • DIN Rail Spring Terminals

  • Triple Deck Terminal Block

  • Ground Terminal Connector

  • PE DIN Rail Terminal Blocks

  • Spring Type Terminal Blocks

281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color281-907 2 Conductors Grounding Spring Earth Terminal Blocks Screwless for Distribution Panel Nylon PA66 Green Color
