Armoured High Voltage Switchgear , Metal Enclosed High Tension Switch Cabinet
Armoured High Voltage Switchgear , Metal Enclosed High Tension Switch Cabinet
Specifications
Brand Name :
HENGFENGYOU
Model Number :
KYN61
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Price :
200-20000/piece
Payment Terms :
LC T/T
Delivery Time :
30 days
Packaging Details :
wooden case
Rated current :
630,1250,1600,20000000A
Rated peak withstand current :
50,63,80,100KA
Insulation :
95/185KV Power frequency/Lightning
Optional circuit breakers :
ZN85, VD4, HD4, LN2-40.5 etc.
Operational power supply :
DC:110,220; AC:110,220
Rated voltage :
40.5KW
Rated short-circuit current :
20,25,31.5,40KA
Short-time withstand current(4s) :
20,25,31.5,40KA
Protection class :
IP4X
Supply Ability :
5000 piece/year
Description

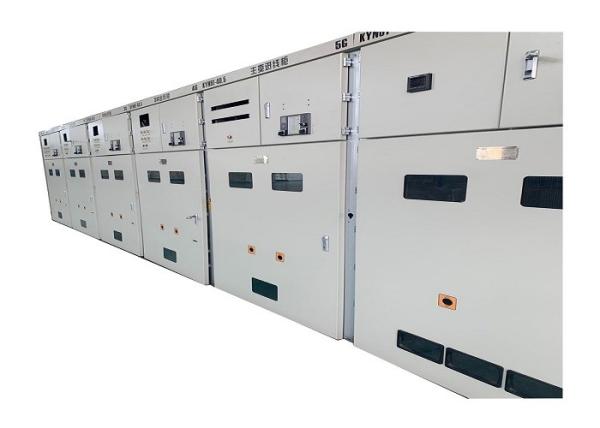

KYN 61-40.5 Armoured Middle Metal Enclosed High Voltage Switchgear

1. Applications:

KYN61 series ht switchgear panel 35KV 40.5KV for electricity power distribution applied to

power distribution system for 40.5kV with three-phase AC 50Hz single bus or single bus

sectional system.Mainly used in power plants, substation, industrial and mining enterprises

for power receiving and distribution, also for controlling, protecting and monitoring the circuit.

It can be used for frequent operated occasions as well.

2. Environmental Conditions

· Suitable Altitude: 1000m ~ 4000m

· Suitable Temperature: -40℃ ~ +45℃

· Relative Humidity: Daily mean ≤95%, monthly mean ≤90%

· Gradation of Earthquake Damage: ≤ Level 8

Armoured High Voltage Switchgear , Metal Enclosed High Tension Switch Cabinet

3. Technical Data

No. Item Unit Data
1 Rated voltage KV 40.5
2 Rated current A 6,301,250,160,020,000,000
3 Rated short-circuit current KA 20,25,31.5,40
4 Rated peak withstand current KA 50,63,80,100
5 Short-time withstand current(4s) KA 20,25,31.5,40
6 Insulation: Power frequency/Lightning KV 95/185
7 Protection class IP4X
8 Optional circuit breakers ZN85, VD4, HD4, LN2-40.5 etc.
9 Operating mechanism Spring mechanism; Permanent magnetic actuator
10 Operational power supply V DC:110,220; AC:110,220
11 Overall dimension(Width*Depth*Height) mm 1400(1200)x2800x2600
1680x2800(3100)x2800
12 Weight KG 1800
