Specifications
Brand Name :
HENGFENGYOU
Model Number :
YB
Certification :
ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
LC T/T
Supply Ability :
5000 pieces/year
Delivery Time :
30 days
Packaging Details :
wooden case
Rated Voltage :
11KV 15KV 22KV 35KV
Product Name :
Substation
Rated current :
630A
Material :
Copper/Aluminum
Color :
CUSTOMIZED COLOR
Rated Capacity :
315KVA 400KVA 500KVA 630KVA
Protection degree: :
IP23,IP30
Capacity: :
30-2000KVA
Transformer type: :
dry type or oil immersed type transformer
High Voltage: :
below 35KV
Price :
500-30000
Description

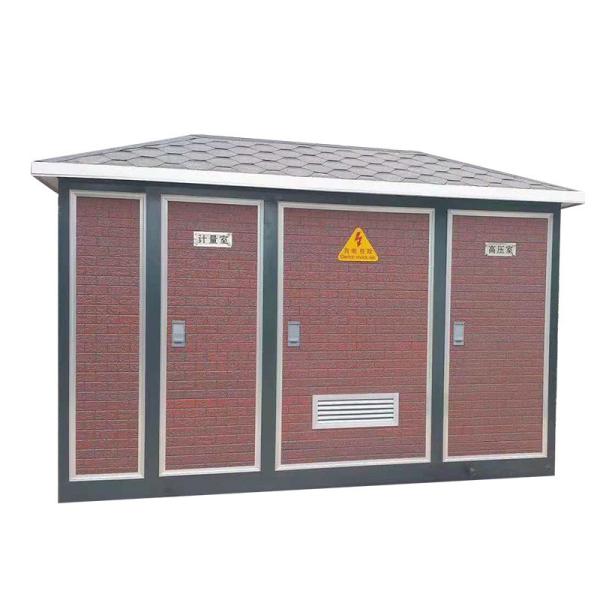

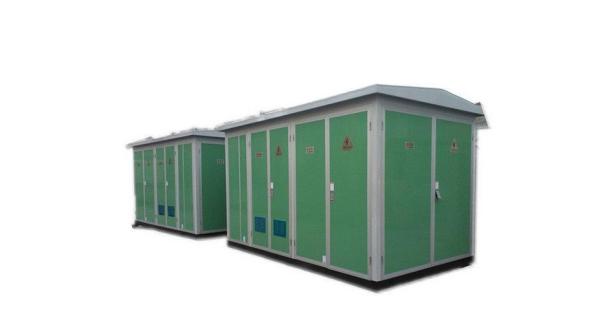

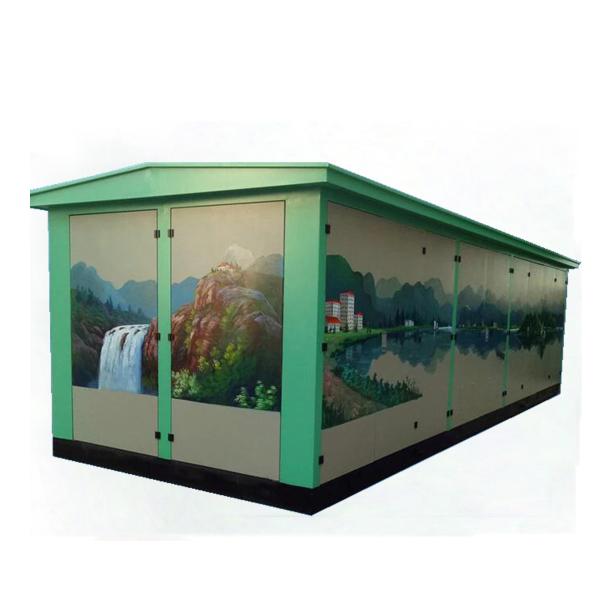

Customized 10KV power distibution prefabricated substation

10kv power distribution prefabricated subsation is a prefabricated complete set of power distribution device, which is composed of high-voltage power distribution device, transformer and low-voltage power distribution device according to a certain wiring scheme.

Hot sale electric power distribution transformer substation 800kva Outdoor Prefabricated Transformer Substation price

Parameters

No. Item Unit High Voltage Equipment Transformer Low Voltage Equipment
1 Rated Voltage Ue KV 7.2/12 6/0.4 10/0.4 0.4
2 Rated Capacity Se KVA

200~2500

50~800

 Max:2*1250
3

Rated Current

Le

 A 200~630 144/3600 100~3000
4

Rated Breaking Current

A

KA

Load switch 400~630

Depends on Fuse

15-63
5

Rated Short Time Current(s)

 KA

20*(2)

12.5*(4)

15*1

30*1
6 Rated Peak Current KA 31.5 50

30

63
7

Rated Making Current

 KA 31.5 50
8

Power Frequency Withstand Voltage (1min)

 KV

30/42

Isolating distance 34/48

Oil-immersed:35/5min

Dry-type:28/5min

<300v hour 2KV

300 600 hour 2.5kv
9

Lightning Impulse

 KV

60/75

Isolating distance 75/85

75

75
10

Equipment Voice Level

 dB

Oil-immersed:<55

Dry-type:<65
11

Protection Level

 IP23D
12

Size

 Decided by electrical equipment and transformer

Hot sale electric power distribution transformer substation 800kva Outdoor Prefabricated Transformer Substation price

Our Services

1. Warranty period: 3 years. Maintenance for lifetime. 1 year free replacement for quality problems.

2. Payment terms: 30% T/T advance, the balance be paid before shipment.

3. FOB Ningbo/Shanghai port.

Hot sale electric power distribution transformer substation 800kva Outdoor Prefabricated Transformer Substation price

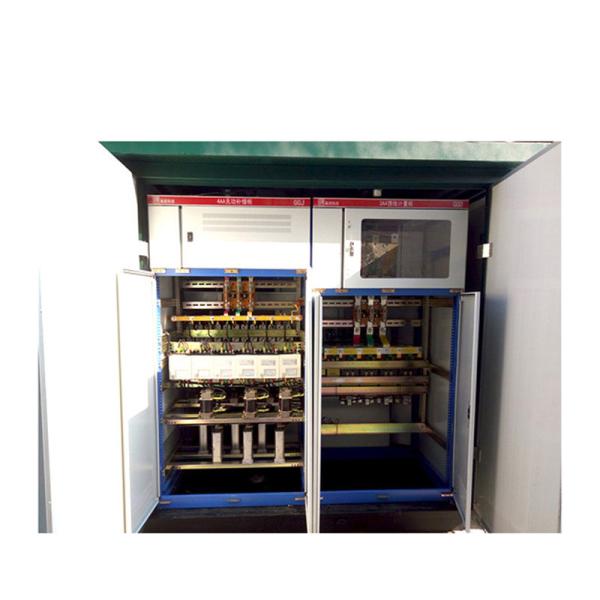

ZBW series is a compact set of power distribution device combined in a cubicle, consisting of high-voltage switchgear, distribution transformer, low –voltage equipment, energy metering devices and reactive power compensation devices. It is applicable to rated voltage 3.6-12KV/0.4KV 50HZ three-phase AC system, as the acceptance and distribution of electrical energy. This series products are new developed and designed follow the standard of GB/T17467. It is widely used in industrial and mining enterprises, street lighting control, residential quarters, hospital, shopping mall, airports and other distribution systems.

Product classification
1, As per way of Installation:
A, On ground(Product No. ZBW) 1, European type 2, American type
B, Buried (Product No. YBD) 1,Fully-buried 2,Half-buried
2, As per Material of substation enclosure: A,Metal material B, Non -metal material
Which is optional by customers.

Operating conditions

1 Ambient temperature: -25℃~+40℃
2 Altitude: less than1000m
3 Seismic intensity:less than magnitude 8
4 Outside wind speed less than 35m/s
5 Apply to the places have no fire,no explosion danger and no chemical corrosion)
