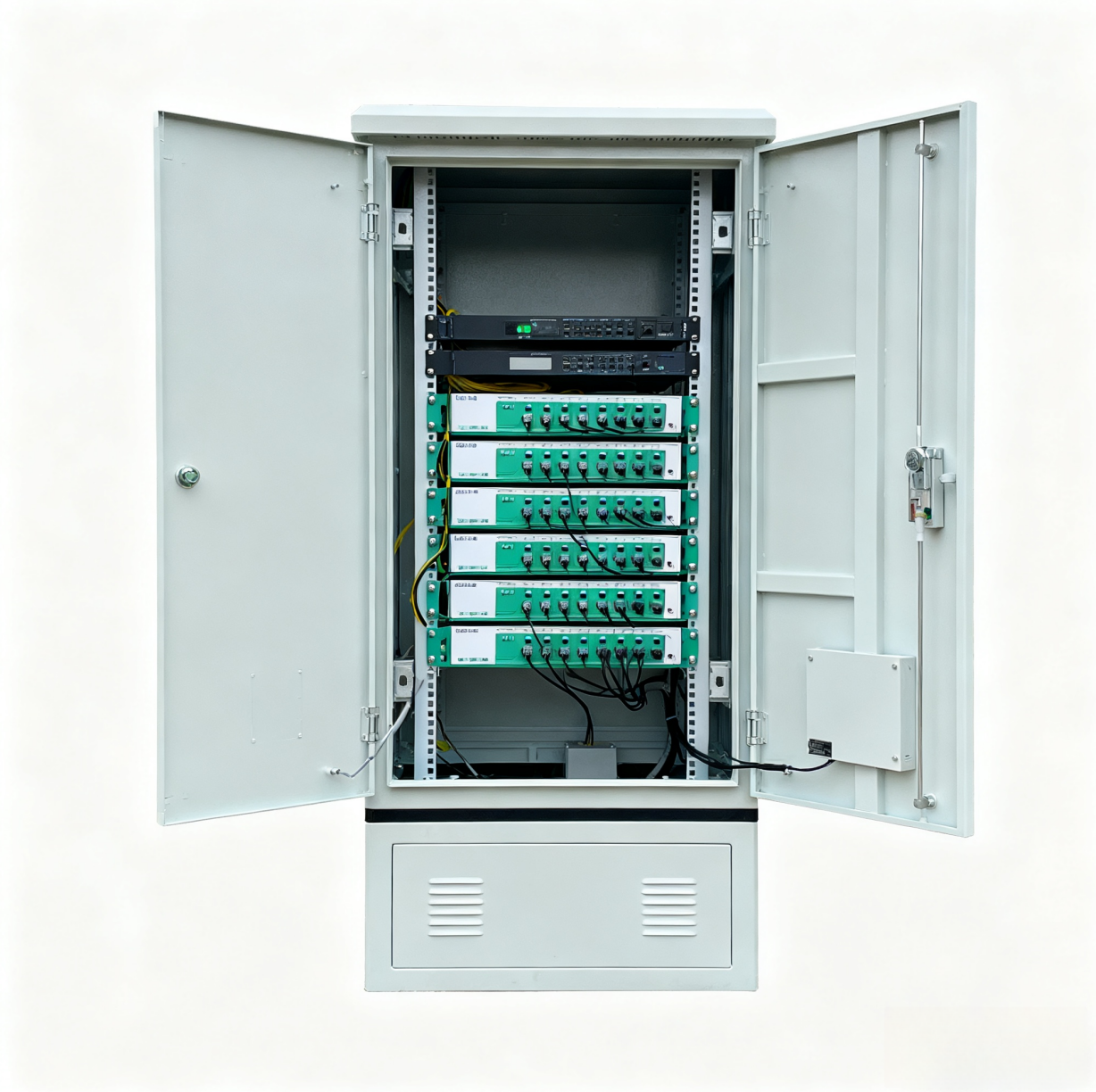

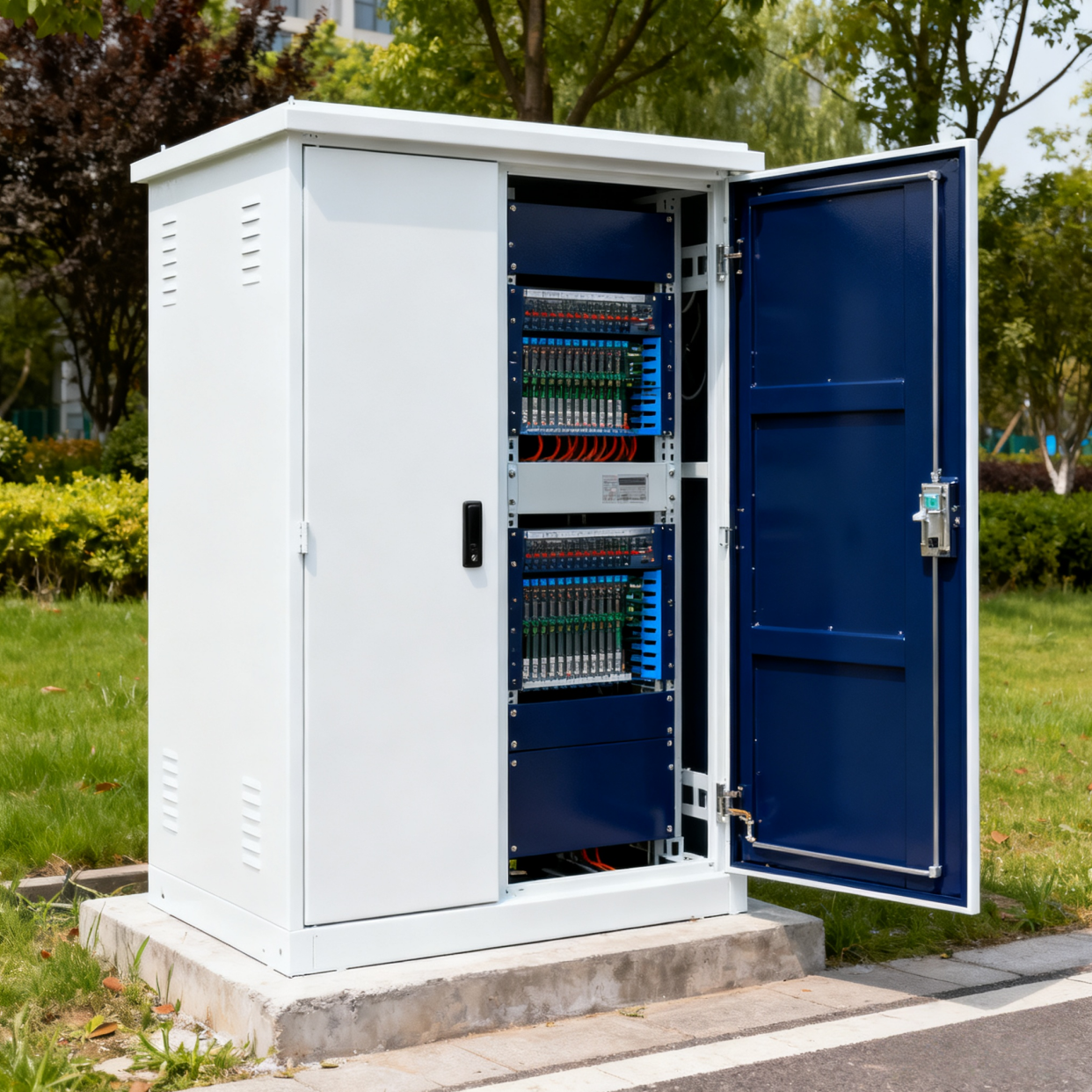

IP55 Outdoor Power Enclosure with 60KA Surge Protection and Energy-Saving Natural Cooling Solution
IP55 Outdoor Power Enclosure with 60KA Surge Protection and Energy-Saving Natural Cooling Solution
IP55 Outdoor Power Enclosure with 60KA Surge Protection and Energy-Saving Natural Cooling Solution
IP55 Outdoor Power Enclosure with 60KA Surge Protection and Energy-Saving Natural Cooling Solution
IP55 Outdoor Power Enclosure with 60KA Surge Protection and Energy-Saving Natural Cooling Solution
IP55 Outdoor Power Enclosure with 60KA Surge Protection and Energy-Saving Natural Cooling Solution
Specifications
Price :
599-59999 USD per set
Supply Ability :
5999 units per year
Operatingtemperaturerange :
-40°C to +60°C
Illumination :
DC48V LED Lamp
Enclosure Finish Options :
Powder Coated, Galvanized, Painted
Cabinet Layout :
Two Compartment
Certifications :
UL Listed, CE Certified
Cooling :
Air conditioner and fans
Corrosionresistance :
Salt spray resistance up to 480 hours
Description
IP55 Outdoor Power Enclosure: 60KA Surge Protection & Energy-Saving Natural Cooling Solution
The D Series Outdoor Power Distribution Cabinets are fully enclosed outdoor electrical cabinets engineered for extreme environmental conditions with advanced heat exchange technology.
Product Overview
Our classic fully enclosed heat exchanger outdoor cabinet solution is engineered to withstand extreme conditions including high temperatures, severe cold, desert climates, and offshore locations. These cabinets are ideal for rapid outdoor deployment of high-capacity copper cables and OLT equipment, with proven reliability recognized by operators worldwide and currently deployed in over 100 countries.
High Reliability
  • Excellent EMC performance with IP55 protection rating
  • Suitable for extreme conditions including high temperatures, severe cold, wind, rain, and thunderstorms
  • Dual cooling units and dual fans for enhanced operational safety
  • Sealed design effectively isolates harmful dust and corrosive gases
  • Maximum 60KA lightning protection module with MDF side line security unit
Green & Environmentally Friendly
Heat exchanger fan with automatic speed adjustment for low noise and power consumption. Meets installation requirements in residential areas with quiet operation.
High Security
  • Built-in hinges for anti-pry and anti-theft protection
  • Built-in cabinet mounting holes for enhanced theft resistance
  • HW-2801 door lock for equipment compartment and HW-2801B for wiring compartment
  • Supports external door locks, electronic locks, audible/visual alarms, and reinforced battery bars
  • Separate compartments for equipment and MDF enabling decentralized maintenance
One-Stop Delivery
Integrated cabinet solution includes main equipment, power supply, MDF/ODF, and monitoring systems. Complete delivery eliminates need for secondary on-site integration with quick installation and deployment capabilities.
Convenient Maintenance
  • Equipment bay supports front-maintenance access
  • MDF in wiring bay supports front-wiring operations
  • Optional portable interior lighting for night maintenance
  • AC power maintenance socket option for on-site maintenance tools
Comprehensive Monitoring System
Real-time monitoring and remote alarming capabilities for all critical cabinet parameters including environmental conditions (temperature, humidity, access control), power supply equipment, batteries, patch panels, lightning protection modules, and cabinet fans.
Product Specifications
Parameter Specification
Cabinet Dimensions 1750mm x 800mm x 1850mm (W x D x H)
Battery Capacity Two sets of 150Ah batteries
Maximum Weight (without battery) 550kg
Maximum Weight (with battery) 950kg
Operating Environment -45℃ to +45℃
Noise Standards ETS300753 CLASS 4.1E City Level
Heat Dissipation Heat Exchanger
Maximum Cooling Capacity 3000W
Service Configuration
Configuration User Capacity
2 DC MA5600T 1536 (POTS + ADSL2+)
1024 (POTS + VDSL2/ADSL2+)
1792 VDSL2/ADSL2+
2048 POTS
2 DC HABDs + 1 DC HABF 1312 (POTS + ADSL2+)
1856 POTS + 384 ADSL2+
2688 POTS
IP55 Outdoor Power Enclosure with 60KA Surge Protection and Energy-Saving Natural Cooling Solution
IP55 Outdoor Power Enclosure with 60KA Surge Protection and Energy-Saving Natural Cooling Solution
We offer a comprehensive range of outdoor cabinet products and can develop customized solutions to meet your specific requirements. Contact us via email or WhatsApp for detailed inquiries. We are committed to providing exceptional support and service.
