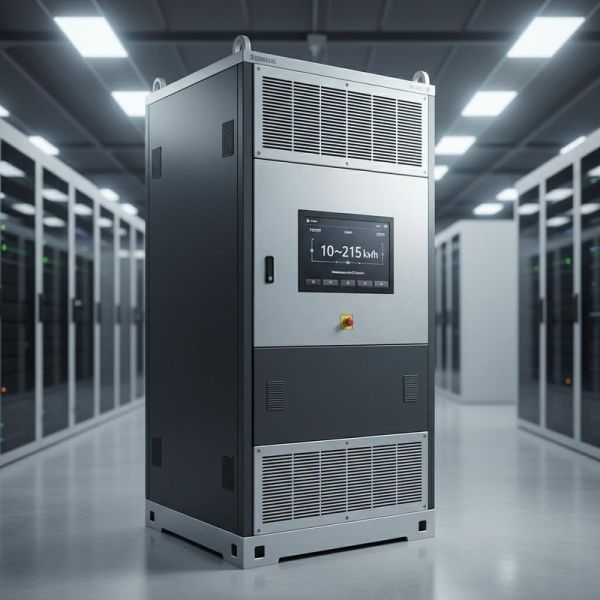

Wide Range 10~215kWh Battery Storage Cabinet with Intelligent Air Conditioner System
Wide Range 10~215kWh Battery Storage Cabinet with Intelligent Air Conditioner System
Specifications
Brand Name :
HUAHUI
Certification :
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1
Price :
700-7000 USD per set
Payment Terms :
D/P T/T
Supply Ability :
5000 units per year
Delivery Time :
Expected shipment within 30 days after successful payment
Packaging Details :
Standard Packaging
type :
Energy Storage Cabinet
product name :
electrical energy storage
application :
Industrial and commercial
feature :
waterproof
advantage :
high Efficiency, energy saving
design :
Modular design
Description
Wide Range 10~215kWh Battery Storage Cabinet with Intelligent Air Conditioner System
We offer comprehensive 10-215kWh energy storage cabinet products with integrated air conditioning systems. Our team provides tailored solutions to meet your specific requirements. Contact us via email or WhatsApp for inquiries.
Product Applications
Industrial & Commercial Energy Storage System
Fully integrated pre-configured solution suitable for:
  • Photovoltaic energy systems
  • Industrial and commercial applications
  • Power grids and power plants
  • Charging stations
  • Public service facilities
Off-Grid Microgrid Systems
Ideal for areas with unstable electricity supply:
  • Villas and residential properties
  • Farms and agricultural operations
  • Islands and remote locations
  • Oil extraction sites
  • Areas without reliable grid access
Primary Functions
  • Self-consumption optimization
  • Emergency backup power
  • Generator management
  • Wind turbine integration
System Components
01 Cooling Air Duct | 06 Fire Protection System | 02 Air Conditioning System | 07 EMS Display Screen | 03 Battery PACK | 08 EMS Host | 04 High Voltage BMS | 09 PCS | 05 High Voltage Box | 10 Distribution System
Air-Cooled Energy Storage Cabinet Specifications
Product Model Battery Capacity External Dimensions H×W×D Internal Dimensions H×W×D PCS Power
HH-906868 10-15kWh 900×680×680 750×600×600 3-5kW
HH-136868 20-25kWh 1300×680×680 1100×600×600 8-10kW
HH-167676 30-35kWh 1600×760×760 1400×700×700 8-10kW
HH-209595 45kWh 2050×950×950 1800×800×800 10-20kW
HH-259595 55kWh 2500×950×950 2300×800×800 20-30kW
HH-211111 100kWh 2100×1050×1050 1950×940×940 50kW
HH-251919 100kWh 2500×1850×1150 2300×1700×1000 50kW
HH-211711 200kWh 2100×1650×1050 1950×1540×940 100kW
Battery Configuration: Interior cabinet space accommodates racks or non-standard arrangements with single 5-46.3kWh battery PACKs, supporting series or parallel connection of multiple PACKs.
Standard Features
  • Cabinet Material: Steel plate/stainless steel/galvanized sheet
  • Opening Mode: Front opening door/front and rear opening door
  • Cooling Method: Air-cooled air conditioner/air-cooled fan (optional)
  • Fire Protection: Hot melt adhesive/heptafluoropropane/perfluorohexane (optional)
  • Power Distribution: AC input/output power distribution, DC input/output power distribution, electric meter, emergency stop switch indicator light (optional)
  • Ambient Temperature: -40°C to 75°C
  • Protection Grade: IP20/IP55/IP66
  • System Certification: ISO9001, ISO14001, ISO45001
  • Brand: HUAHUI
Liquid-Cooled Energy Storage Cabinet Specifications
Product Model Battery Capacity External Dimensions H×W×D Internal Dimensions H×W×D PCS Power
HH-221313-A 325kWh 2265×1330×1330 2100×1240×1240 100kW
HH-221313-B 232kWh 2265×1330×1330 2100×1240×1240 100kW
HH-229613 232kWh 2265×960×1330 2100×890×1240 100kW
Battery Configuration: Interior cabinet space accommodates 5-7 46.3kWh liquid-cooled battery packs.
Detailed Product Specifications
325kWh Liquid-Cooled Energy Storage Cabinet
Product Model HH-231313-01
Product Size H×W×D 2300×1350×1350
Product Capacity 325kWh
Battery Configuration 7 × 46.4kWh liquid-cooled PACKs
Cabinet Material Steel plate/stainless steel
Protection Grade IP55/IP66
Cooling Method Liquid-cooled air conditioner
232kWh Liquid-Cooled Energy Storage Cabinet
Product Model HH-221212-01
Product Size H×W×D 2200×1220×1220
Product Capacity 232kWh
Battery Configuration 5 × 46.4kWh liquid-cooled PACKs
Cabinet Material Steel plate/stainless steel
Protection Grade IP55/IP66
400-430kWh Air-Cooled Energy Storage Cabinet
Product Model HH-223112-01
Product Size 400kWh: 2200×3100×1200
430kWh: 2350×3200×1000
Product Capacity 400-430kWh
Battery Configuration 28-30 pieces of 48V280AH
200-215kWh Air-Cooled Energy Storage Cabinet
Product Model HH-221511-01
Product Size 200kWh: 2200×1500×1100
215kWh: 2360×1660×1100
Product Capacity 200-215kWh
Battery Configuration 14-15 pieces of 48V280AH
Key Product Features
Security
  • Multi-level protection: software + hardware + electrical systems
  • Independent cabinets provide electrical and fire safety isolation
  • DC to AC conversion prevents DC arcing hazards
Efficiency
  • Cluster management eliminates parallel losses and improves energy storage revenue
  • PCS three-level topology with maximum efficiency of 99%
High Integration
  • Fully integrated system: battery + BMS + PCS + EMS + fire protection + temperature control
Ease of Use
  • Rapid deployment capabilities
  • Decentralized deployment with centralized scheduling
  • Distributed architecture supports easy expansion
  • Fully modular design for simplified maintenance
  • Cloud monitoring and mobile app support
