Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
Specifications
product name :
Energy Storage Battery Pack
Standard Capacity :
100Ah/200Ah/280Ah
Certification :
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Standard Voltage :
51.2V
Type :
lithium Storage battery
communication :
RS485/RS232/CAN
Place of Origin :
Shenzhen, Guangdong, China
Brand Name :
HUAHUI
MOQ :
1
Packaging Details :
Standard Packaging
Delivery Time :
Expected shipment within 30 days after successful payment
Payment Terms :
D/P T/T
Price :
399-39999 USD per set
Supply Ability :
5000 units per year
Description
Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
Source manufacturer supports customized Energy Storage Battery Pack, lithium iron phosphate 280Ah large capacity energy storage lithium battery pack. We offer a wide range of battery pack products and can tailor solutions to meet your specific requirements.
Product Attributes
Product Name Energy storage battery / lithium iron phosphate battery / rack mounted battery
Origin Guangdong, China
Type Steel shell lithium battery
Model/Item Number HH-100 / HH-200 / HH-280
Brand HUAHUI
Standard Voltage 51.2V
Charging Current 50A / 100A / 140A
External Dimensions 483×473×177mm / 483×585×236mm / 483×680×236mm

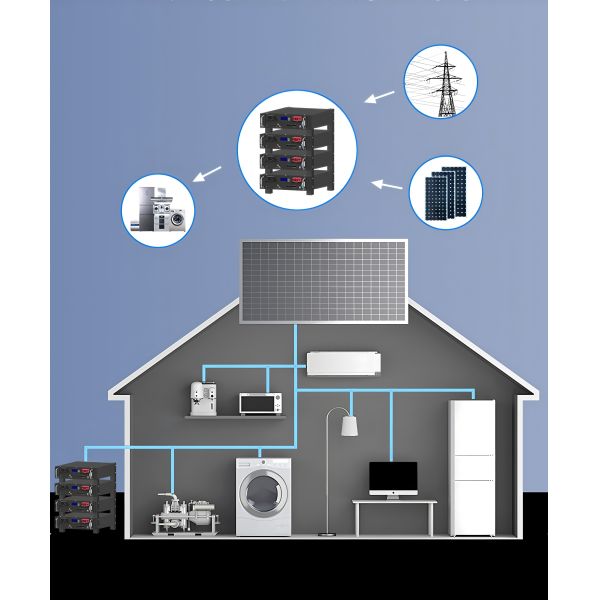

Applicable Types Communication base station / photovoltaic energy storage / backup power supply
Product Certification UN38.3 / CE
Rechargeable Yes
Standard Capacity 100Ah / 200Ah / 280Ah
Material Cold rolled steel plate
Net Weight 48kg / 87kg / 112kg
Charging Voltage 51.2V
Operating Temperature 15-25°C / 5%-95% humidity
Lithium Iron Phosphate Energy Storage Battery Features
  • Large capacity design using A-grade battery cells
  • 6000 cycles with lifespan up to 10 years
  • RS485/RS232/CAN communication interfaces
  • Suitable for communication base stations, photovoltaic energy storage, and backup power supply applications
Product Specifications
Model HH-48100-01 HH-48200-01 HH-48280-01
Rated Voltage 51.2V 51.2V 51.2V
Working Voltage Range 40V-58.4V 40V-58.4V 40V-58.4V
Rated Capacity 100Ah 200Ah 280Ah
Rated Energy 5.12kWh 10.24kWh 14.336kWh
Rated Charging Current 50A 50A 50A
Maximum Charging Current 60A 60A 60A
Rated Discharge Current 50A 50A 50A
Maximum Discharge Current 100A 200A 280A
Product Weight 48kg 87kg 112kg
Technical Specifications
Optimal Operating Temperature & Humidity 15-25°C / 5%-95%
Cooling Method Natural cooling
Protection Grade IP20
Operating Altitude ≤2000m
Cycle Life ≥4000 times @ 80% DOD, 0.5C/0.5C, 25°C
Communication Method CAN2.0 / RS485 / RS232
Protection Functions Overtemperature, overcurrent, short circuit, overcharge, overdischarge, etc.
Design Service Life ≥10 years
Maximum Parallel Units Up to 15 units (recommended ≤5 units)
Product Introduction
Our standard cabinet battery packs are equipped with A-grade lithium iron phosphate cells, featuring 4000 cycles of charging and discharging. Individual battery packs offer large capacity energy storage ranging from 8.96kWh to 61.44kWh. Suitable for industrial, commercial, office, power grid, and estate applications.
Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries Customized Energy Storage Lithium Battery 280Ah Lithium Storage Batteries
Key Features
  • Utilizes well-known brand battery cells with 4000 charge/discharge cycles and customizable capacity assembly
  • Excellent electrical performance with laser welding technology, ensuring superior battery cell consistency and outstanding charging/discharging performance
  • High-quality LiFePO4 battery chemistry with over 6500 cycles and designed service life up to 10 years
  • Cabinet-style modular design with simple structure for easy installation and flexible capacity expansion
Additional Specifications
Type 4.8KWh-B101
Maximum Available Battery Capacity 4.8KWh
Rated Capacity 100Ah
Factory Voltage 48.0V
Discharge Cut-off Voltage 37.5V
Charging Cutoff Voltage 54.75V
Maximum Continuous Charge Current 100A
Maximum Continuous Discharge Current 100A
Appearance Size 480×480×134mm
Weight 46kg
Charge Temperature 0-55°C
Discharge Temperature -20 to 65°C
Storage Temperature -10 to 45°C
BMS Support 15 units parallel connection
We welcome your inquiries via email or WhatsApp. Our team is committed to providing comprehensive assistance and customized solutions tailored to your specific energy storage requirements.
