Specifications
Certification :
UN38.3、UL、CE、KC、FCC、PSE、FDA and MSDS
Frequency (HZ) :
50-60
type :
electrical bus duct system
Protection grade :
IP54, IP66
Key Features :
Safety,Easy maintenance
Place of Origin :
Shenzhen, Guangdong, China
Brand Name :
HUAHUI
MOQ :
1
Packaging Details :
Standard Packaging
Delivery Time :
Expected shipment within 30 days after successful payment
Payment Terms :
D/P T/T
Application :
substations, captive power plants
product name :
electric bus duct
Price :
701-70001 USD per set
Supply Ability :
5000 units per year
Description

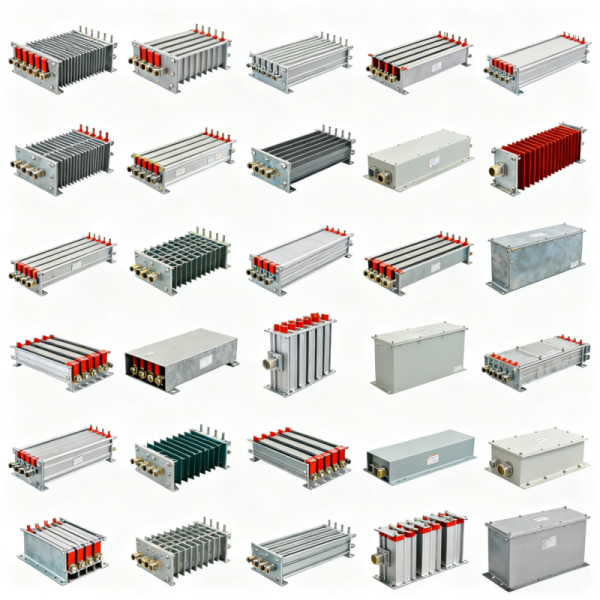

250A~6300A High Voltage Bus Duct Common Enclosure Type Busway
We offer a wide range of busbar trunking products and can tailor solutions and products to meet your specific needs. You are welcome to inquire via email or WhatsApp, and we will be happy to assist you.
Contact Us: We welcome inquiries via email or WhatsApp for customized solutions.
Selection Parameters - Dense Bus Duct
Current Level XLC /4P XLC /5P
W(mm) | H(mm) W(mm) | H(mm)
400128 | 98128 | 98
500128 | 108128 | 108
630128 | 123128 | 123
800128 | 138128 | 138
1000128 | 158128 | 158
1250128 | 183128 | 183
1600128 | 218128 | 218
2000128 | 268128 | 268
2500128 | 280128 | 280
3200128 | 400128 | 400
4000128 | 490128 | 490

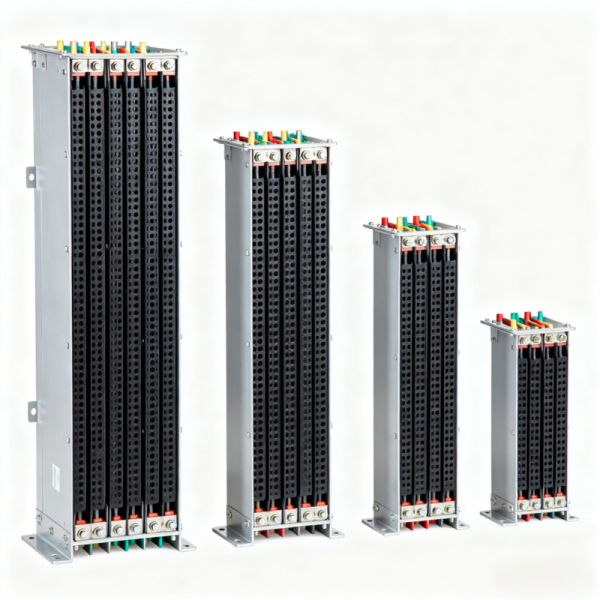

250A~6300A High Voltage Bus Duct Busway with IP54 IP66 Protection and Safety Features

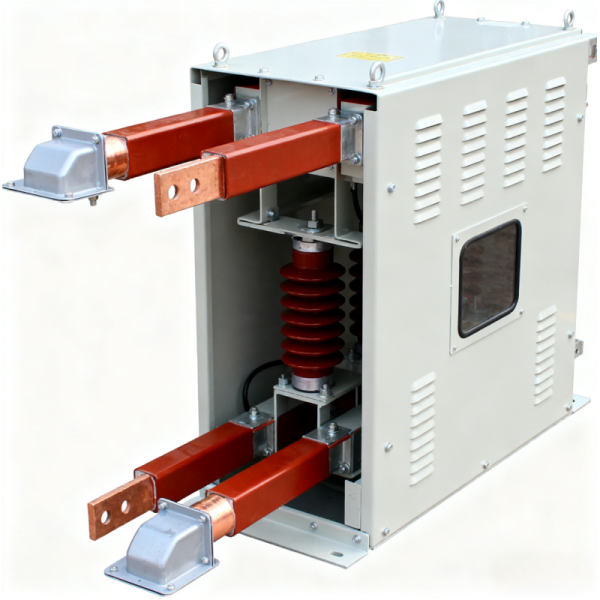

Technical Parameters - XLC Type Bus Duct
Execution StandardsIEC60439.1-2000, IEC60439.2-2000, GB/T 7251.6-2015
Ambient Temperature-5°C to +40°C (24-hour average not exceeding 35°C)
AltitudeNot exceeding 2000M
Protection GradeIP54, IP66
Unit Length1.6, 2.5, 3.2, 6M (0.5-6M options)
Rated Operational Voltage690V (with tap unit)/1000V (without tap unit)
Rated Insulation Voltage (Ui)800V (with tap unit)/1000V (without tap unit)
Frequency50-60 HZ
Temperature Rise≤70K
Insulation Resistance≥20 MΩ
Electrical Clearance≥10.0mm (with tapping unit)/≥14.0mm (without tapping unit)
Creepage≥12.5mm (with tap cell)/≥16.0mm (without tap cell)
Protection Circuit Effectiveness<0.02 Ω
Dielectric Properties50Hz, 3750V/min, no breakdown, flashover
Installation MethodVertical or horizontal
Number of Plug-in InterfacesMinimum 0.5/m pieces (double-sided plug available)
Electrical Performance Data
Rated Current (A) Resistance (uΩ/m) Reactance (uΩ/m) Total Reactance (uΩ/m) Voltage Drop (mV/m)
40088.966.5289.777.5
63071.162.2289.781
80056.439.1184.277.3
100040.337.9176.377.5
125033.246.6221.676.4
160024.530.1150.774.9
200019.57.4130.773.3
250014.525.9129.671.4
315011.325.3120.969.7
40008.914.376.263
50006.7136961.4
Rated Current (A) Rated Short-time Withstand Current (KA) Rated Peak Withstand Current (KA) Maximum Fixed Spacing (m) Balanced Load (kg/m) Concentrated Load (kg)
400-630306342090
800-10005010532590
1250-50008017633090
Key Features
  • Safety, aesthetics, and reliability advantages
  • Strong overload capacity
  • Low temperature rise
  • Excellent load capacity and dynamic/thermal stability
  • Eliminates uneven current distribution in spliced high-voltage cables
  • Double-grounded shell for high safety performance
  • Good short-circuit resistance and low energy consumption
  • Convenient and quick maintenance, disassembly, and assembly
Application Fields: Power supply systems of large factories, mining enterprises, large substations, captive power plants, generator to step-up transformers, transformers to high-voltage distribution rooms.
Casted Busway
  • Large capacity: 100A to 4000A series coverage
  • High protection level: IP68 (100% waterproof and dustproof)
  • Epoxy resin casting structure prevents metal oxidation and corrosion
  • Low line voltage drop with high instantaneous current withstand value
  • High structural strength, good mechanical properties, maintenance-free
  • Compact structure, small size, excellent dynamic and thermal stability
  • Suitable for harsh indoor/outdoor environments, altitude-unlimited
  • Capable of continuous operation under overload conditions
Application Fields: Power plants, substations, shipbuilding, paper making, ports, basements, petrochemical industries, steel smelting, coal mines, and other harsh environments.
Fire-Resistant Busway
  • 180-minute fire-resistant duration
  • Compact and dense structure, small size
  • Fire-resistant coated shell with joint fire-resistant baffles
  • Low impedance with excellent dynamic and thermal stability
  • Easy and quick maintenance, disassembly and assembly
  • Fireproof materials withstand temperatures up to 1000°C
  • Excellent electrical conductivity
  • Suitable for various fire risk area power distribution requirements
Application Fields: Teaching buildings, high-rise hospitals, high-rise hotels, financial buildings, office buildings, urban rail transit, government offices, large libraries, cotton spinning and mining enterprises.
Advanced Structural Features
  • Fully meets load demands
  • Ultra-thin, compact, and aesthetically pleasing design
  • 360-degree comprehensive protection against dust, corrosion, moisture, water, rust, and impact
  • "Sandwich" structure with compact integration of shell, insulating material, and conductor
  • Unique "亞" shape structure with excellent load-bearing capacity
  • Sawtooth shape design with oversized heat dissipation surface reduces energy consumption
  • Critical structural design integrating consumables, strength, and heat dissipation
  • Dual neutral system for safer electricity usage
  • Non-magnetic shell design eliminates magnetic eddy current interference
Application Fields: Shopping malls, schools, industrial plants, rail transit, commercial complexes, real estate developments, data centers, hospitals, hotels - covering all industrial and commercial applications.
