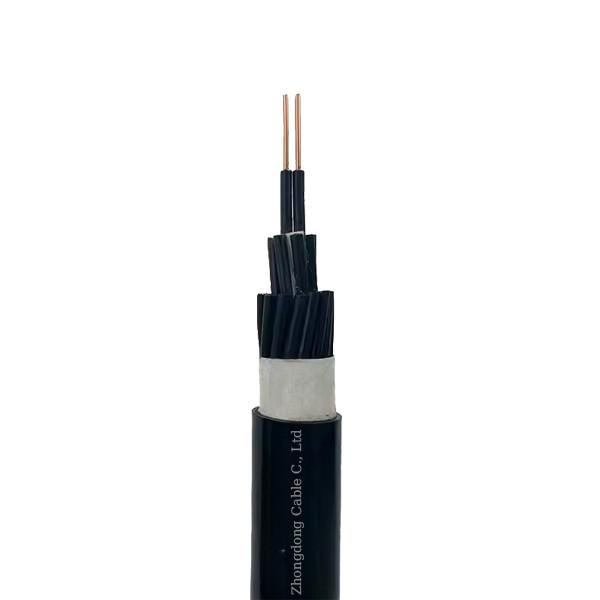

KVV KVVP Multicore Control Cable 450V 750V 1.5mm 2.5mm PVC Sheathed
KVV KVVP Multicore Control Cable 450V 750V 1.5mm 2.5mm PVC Sheathed
Specifications
Brand Name :
Zhongdong
Model Number :
Control cable
Certification :
IEC,ISO,CE,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10Days
Packaging Details :
Steel wooden drum
Conductor Material :
Copper
nsulation Material :
PVC
Voltage Rating :
300/500 V
Insulation Material :
PVC
Cores No. :
2 To 61
Description

KVV KVVP Multi Cores Control Cable 450/750V 1.5mm 2.5mm Retardant PVC Sheathed

Application

Industrial Automation,Machinery and Equipment,Building Automation,Transportation,Energy and Utilities,Telecommunications,Medical Equipment

Specification

KVV:450/750V,Copper core PVC insulated PVC sheathed electric control cable

KVV22:450/750V,Copper core PVC insulated PVC sheathed armoured electric control cable

KVVR:450/750V,Copper core PVC insulated PVC sheathed flexible electric control cable

KVV Control Cable
Nominal Section
(m㎡)
Insulation Nominal
Thickness (mm)
Sheath Nominal Thickness (mm)
Maximum DC Resistance Value at 20 ℃ (Ω/KM)
Approximate Outer Diameter (mm)
Cable Approx Weight
(KG/KM)
2*0.75
0.6
1.2
24.5
7.3
63.4
3*0.75
0.6
1.2
24.5
7.7
72.7
5*0.75
0.6
1.2
24.5
8.9
104.7
7*0.75
0.6
1.2
24.5
9.5
129.5
2*1.0
0.6
1.2
18.1
7.7
71.0
3*1.0
0.6
1.2
18.1
8.0
83.3
5*1.0
0.6
1.2
18.1
9.3
121.6
7*1.0
0.6
1.2
18.1
10.0
152.3
2*1.5
0.7
1.2
12.1
8.6
89.3
10*1.5
0.7
1.5
12.1
14.7
303.9
16*1.5
0.7
1.5
12.1
16.7
444.8
24*1.5
0.7
1.7
12.1
20.7
653.8
37*1.5
0.7
1.7
12.1
23.5
946.6
4*2.5
0.8
1.2
7.41
11.2
200.0
30*2.5
0.8
1.7
7.41
25.7
1175.3
5*4
0.8
1.5
4.61
14.0
343.0
12*4
0.8
1.7
4.61
20.0
719.5
8*6
0.8
1.5
3.08
18.0
663.7
14*6
0.8
1.7
3.08
23.1
1131.9
5*10
1.0
1.5
1.83
19.9
722.9
10*10
1.0
1.7
1.83
28.2
1378.1
