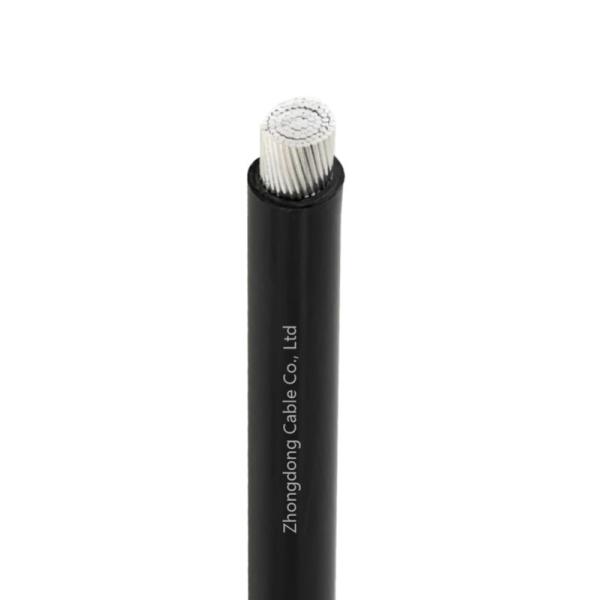

Photovoltaic Aluminum Alloy Conductor Power Cable Customized Length
Photovoltaic Aluminum Alloy Conductor Power Cable Customized Length
Specifications
Brand Name :
Zhongdong
Certification :
ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Place of Origin :
Hebei，China
MOQ :
To be negotiated
Price :
To be negotiated
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Insulation :
XLPE HPDE
Voltage :
600/1000V
Length :
Customized
Conductor Material :
Copper
Packing :
Neutral Carton Packing or Customized
Application :
Overhead
Description

Photovoltaic Aluminium Conductor Cable Aluminum Alloy 8000 Series Conductor



Application



Application Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in raceways, duct, and open air, aerially or directly buried as permitted by NEC



Construction


  1. Phase conductor: Aluminum alloy conductor 8000 series
  2. Insulation :XLPE
  3. Neutral conductor :Aluminum alloy conductor 8000 series
  4. Binder tape :Non-hygroscopic tape
  5. Sheathed:PVC (XLPE/PE) sheath




Specification





mm2

Conductor structure

Insulation
Material

Insulation
Thickness
(mm)

Approx overall diameter
(mm)

Approx weight
(kg/km)

Phase (compacted Al)

Neutral
(alloy)

No./mm

No./mm

1*16+1*16

7/1.72

7/1.72

XLPE


(HDPE)

1.2

12.5

110.1

1*25+1*25

7/2.15

7/2.15

1.2

14.9

163.9

1*35+1*35

7/2.54

7/2.54

1.4

17.5

229.0

1*50+1*50

7/2.92

7/2.92

1.4

20.1

300.0

1*70+1*70

19/2.15

19/2.15

1.4

23.6

423.2

1*95+1*95

19/2.54

19/2.54

1.6

27.6

585.4

2*16+1*16

7/1.72

7/1.72

1.2

14.2

175.8

2*25+1*25

7/2.15

7/2.15

1.2

16.7

258.4

2*35+1*35

7/2.54

7/2.54

1.4

19.7

361.2

2*50+1*50

7/2.92

7/2.92

1.4

22.5

472.1

2*70+1*70

19/2.15

19/2.15

1.4

26.1

658.3

2*95+1*95

19/2.54

19/2.54

1.6

30.5

908.2

3*16+1*16

7/1.72

7/1.72

1.2

16.3

241.5

3*25+1*25

7/2.15

7/2.15

1.2

19.1

353.6

3*35+1*35

7/2.54

7/2.54

1.4

22.5

493.5

3*50+1*50

7/2.92

7/2.92

1.4

25.7

644.1

3*70+1*70

19/2.15

19/2.15

1.4

29.7

895.2

3*95+1*95

19/2.54

19/2.54

1.6

34.6

1233.5


Application Scenarios


Photovoltaic Aluminum Alloy Conductor Power Cable Customized LengthPhotovoltaic Aluminum Alloy Conductor Power Cable Customized LengthPhotovoltaic Aluminum Alloy Conductor Power Cable Customized Length
