400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA
400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA
Specifications
Brand Name :
Zhongdong
Certification :
ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Place of Origin :
Hebei，China
MOQ :
To be negotiated
Price :
To be negotiated
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Insulation :
XLPE HPDE
Voltage :
26/35kV
Length :
Customized
Conductor Material :
Aluminium Alloy
Packing :
Neutral Carton Packing or Customized
Application :
Overhead
Description

400sq mm Single Core Aluminium Conductor Cable Armoured STA 35kV Cu/XLPE/PVC/STA

Application

‌Renewable Energy Systems‌: Widely used in solar farms and wind power projects due to lightweight design and corrosion resistance

‌Industrial and Urban Infrastructure‌: Ideal for underground burial, tunnels, and industrial plants requiring durable, corrosion-resistant power distribution

‌Transportation Networks‌: Deployed in subways, railways, and airports where flexibility and reduced cable weight are critical

‌Commercial and Residential Buildings‌: Replaces traditional copper cables in electrical grids, offering cost savings without compromising safety

400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA

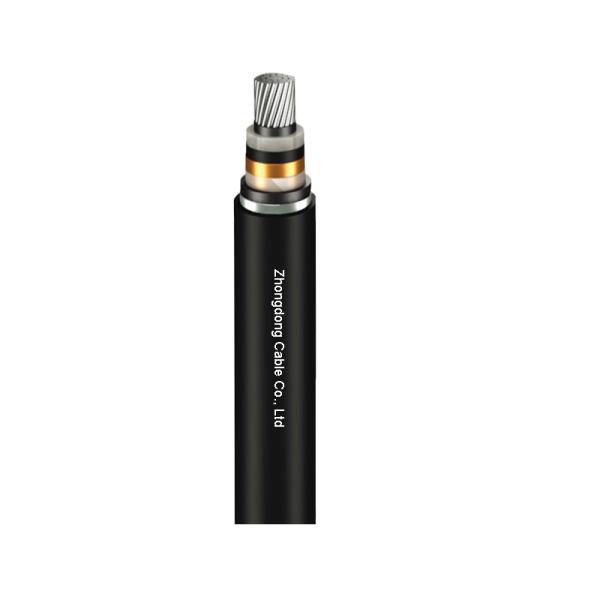

Construction

400sqmm Single Core Aluminium Power Cable Armoured STA 35kV Cu XLPE PVC STA

  1. Conductor
  2. Conductor Shiel
  3. Insulation
  4. Metal Shield Layer
  5. Filler
  6. Binder Tape
  7. Armouring
  8. Outer sheath

Laying Method

Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.

Specification

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×50

7.6±0.2

31.2

41.2

2192

1×70

9.2±0.2

32.8

43.0

2376

1×95

10.9±0.2

34.5

44.7

2554

1×120

12.2±0.2

35.8

46.1

2738

1×150

13.6±0.2

37.2

47.7

2939

1×185

15.2±0.2

38.8

49.5

3182

1×240

17.4±0.2

41.0

51.7

3493

1×300

19.5±0.2

43.1

54.1

3855

1×400

22.0±0.2

45.6

56.8

4349

1×500/35

24.8±0.2

49.2

63.1

5275

1×630/35

28.2±0.2

52.6

66.9

5949

1×800/35

34.0±0.2

58.4

72.8

6872
