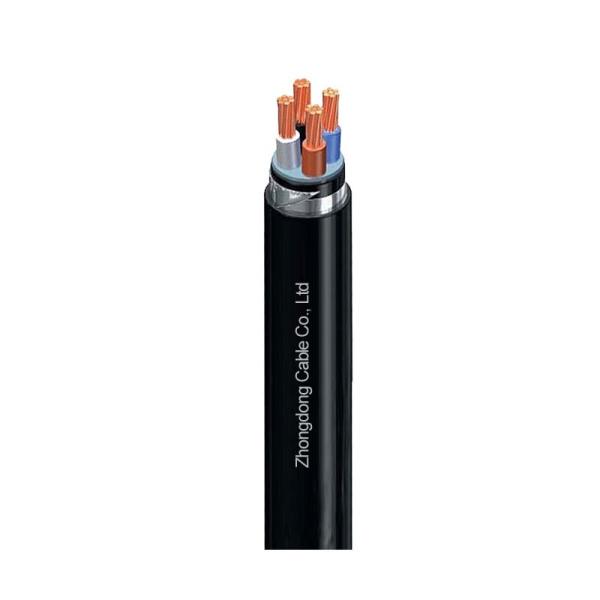

Armoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVC
Armoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVC
Specifications
Brand Name :
Zhongdong
Model Number :
KYJV22 N2XBY
Certification :
ISO,VDE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Work days
Packaging Details :
Wooden Steel Drums
Conductor Material :
Copper
Insulation Material :
XLPE
Application :
Industrial
Jacket :
PVC
Color :
Optional
cores :
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Description

Armoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVC


APPLICATION

This product is suitable for use in control, monitoring circuits, and protection circuits in circuits with a rated voltage of 450/750V and below


CONSTRUCTION

Conductor:Circular solid copper conductor(A) or circular stranded copper conductor(B)

Insulation: Polyvinyl chloride (PVC)

Filler:Polypropylene(PP) mesh filling rope

Armouring: Galvanized steel tape

Outer sheath: Polyvinyl chloride (PVC)


Armoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVC




CHARACTERISTIC

Voltage Rating Uo/U: 450/750V

Temperature Rating

Maximum operating temperature of conductor:+70℃

Operating ambient temperature: -15℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)


Specification

No of core: 2-61 core

Nominal cross-section of conductor: 0.5-10mm2


TYPE

Specs
mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

8×0.5(B)

0.90

0.6

1.5

13.9

274.6

8×0.75

1.02

0.6

1.5

14.3

302.5

8×0.75(B)

1.10

0.6

1.5

14.5

311.4

8×1

1.16

0.6

1.5

14.8

333.5

8×1(B)

1.29

0.6

1.5

15.2

347.3

8×1.5

1.41

0.7

1.5

163

418.3

8×1.5(B)

1.56

0.7

1.5

16.9

435.3

8×2.5

1.76

0.8

1.5

18.4

557.6

8×2.5(B)

2.04

0.8

1.5

19.2

584.7

8×4

2.22

0.8

1.7

20.5

733.4

8×4(B)

2.55

0.8

1.7

21.4

766.4

8×6

2.74

0.8

1.7

22.2

931.7

8×6(B)

3.10

0.8

1.7

233

971.1

8×10

4.00

1.0

1.7

28.3

1454.2

10×0.5

0.85

0.6

1.5

14.8

310.5

10×0.5(B)

0.90

0.6

1.5

15.0

317.8

10×0.75

1.02

0.6

1.5

15.5

351.9

10×0.75(B)

1.10

0.6

1.5

15.8

362.8

10×1

1.16

0.6

1.5

16.1

390.1

10×1(B)

1.29

0.6

1.5

16.6

406.8

10×1.5

1.41

0.7

1.5

17.9

494.1

10×1.5(B)

1.56

0.7

1.5

185

514.9

10×2.5

1.76

0.8

1.7

20.8

685.3

10×2.5(B)

2.04

0.8

1.7

21.7

719.4

10×4

2.22

0.8

1.7

22.7

881.5

10×4(B)

2.55

0.8

1.7

23.7

921.9

10×6

2.74

0.8

1.7

24.7

1127.4

10×6(B)

3.10

0.8

1.7

25.9

1175.7

10×10

4.00

1.0

2.0

32.3

1816.9

12×0.5

0.85

0.6

1.5

15.2

333.5

12×0.5(B)

0.90

0.6

1.5

15.4

341.6

2×0.75

1.02

0.6

1.5

15.9

380.6

12×0.75(B)

1.10

0.6

1.5

16.2

392.7

12×1

1.16

0.6

1.5

16.5

424.5

12×1(B)

1.29

0.6

1.5

17.0

442.7

12×1.5

1.41

0.7

1.5

18.4

542.5

12×1.5(B)

1.56

0.7

1.5

19.0

565.1


ABOUT US

Armoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVC

PACKAGE


Armoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVC


APPLICATION

Armoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVCArmoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVC

Armoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVCArmoured Control Electrical Cable N2XBY XLPE Insulated Control Cable CU/XLPE/STA/PVC


FAQ

‌Q1. What is a control cable?‌

A1. Control cable is a multi-core cable designed to transmit signals and low-voltage control commands in automation systems, machinery, and industrial applications.

Q‌2. What are the common types of control cables?‌

A‌2.KVV‌: Basic PVC-insulated, unarmored.

‌KVV22‌: Steel tape armored for mechanical protection.

‌KVVP‌: Shielded (copper braid) for EMI resistance.

‌KYJV‌: Higher temperature resistance (XLPE insulation).

Q3. When should I use armored control cables?‌

A4.Choose ‌KVV22 (steel tape armor)‌ for underground or high-impact environments. Use ‌KVV32 (steel wire armor)‌ for vertical installations or tension-heavy scenarios.

Q4.Are you a factory or trading company?

A1: We are a manufacturer with more than 20 years cable production expreience.

Q5.What is your payment term?
A5.Ourpaymenterm is usualy T/T30% in advanced,the balance before picking up the goods
Q6.Do you accept OEM service?
A6.Yes,we wil customize the products according to your specific requirements
