DC Solar Panel Cable PV Wire Photovoltaic Solar Cable 4mm2 6mm2
DC Solar Panel Cable PV Wire Photovoltaic Solar Cable 4mm2 6mm2
Specifications
Brand Name :
Zhongdong
Model Number :
H1Z2Z2-K
Certification :
CCC,IEC,VDE,TUV,ISO
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
500KM/Week
Delivery Time :
10work days
Packaging Details :
woodern drum
Insulation Material :
xlpe
Jacket :
XLPO
Conductor Material :
Class 5 Tinned copper
Application :
Construction
Core :
1 Core
Colour :
Black /Other colours available on request
Description

DC Solar Panel Cable PV Wire Photovoltaic Solar Cable 4mm2 6mm2

APPLICATION

DC Solar Cables

The interconnection between photovoltaic modules

Parallel connection between series and between modules and DC distribution boxes (combiner boxes)

Connection between DC distribution boxes and inverters.

AC Solar Cables

Connecting inverters to step-up transformers

The connection between the step-up transformer and the distribution equipment

The connection between power distribution equipment and the power grid or user

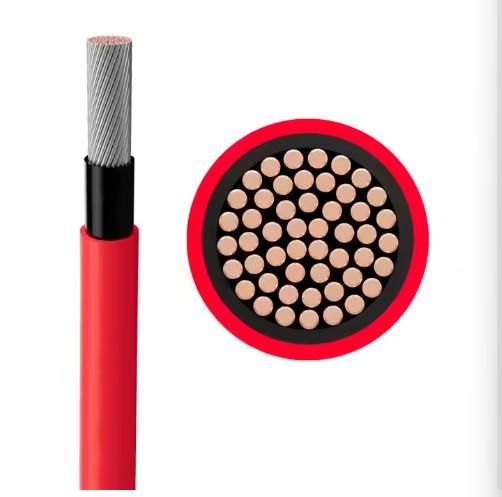

CONSTRUCTION

Conductor:Class 5 tinned copper conductors

Insulation:Halogen free flame-retardant insulation material for solar cables

Outer sheath:Halogen free flame retardant sheath material for solar cables


DC Solar Panel Cable PV Wire Photovoltaic Solar Cable 4mm2 6mm2

DC Solar Panel Cable PV Wire Photovoltaic Solar Cable 4mm2 6mm2


STANDARD

2Pfg 1169/08.2007


CHARACTERISTIC

AC Voltage Rating Uo/U:0.6/1.0kV

DC Voltage Rating Uo/U:1.8kV

Maximum operating temperature of conductor:+120℃

Operating ambient temperature: -40℃~+90℃

Cable laying temperature:Not less than -25℃

Minimum Bending Radius: Single core:6D (D is the actual outer diameter of the cable)


SPCIFICATION

Cross section(mm²)

Conductor Construction

(no/mm)

Conductor Stranded OD.max(mm)

Cable OD.(mm)

Approximate weight of cable
kg/km

Max Conductor Resistance

(Ω/km,20°C)

1×1.5

48/0.20

1.58

4.6

33

13.7

1×2.5

77/0.20

2.02

5.0

45

8.21

1×4

56/0.285

2.46

5.4

61

5.09

1×6

84/0.285

3.01

6.0

83

3.39

1×10

77/0.40

4.1

7.3

130

1.95

1×16

7×17/0.40

5.5

8.9

196

1.24

1×25

7×27/0.40

6.7

10.3

290

0.795

1×35

7×38/0.40

8.2

11.8

390

0.565


FACTORY

DC Solar Panel Cable PV Wire Photovoltaic Solar Cable 4mm2 6mm2


PROJECT

DC Solar Panel Cable PV Wire Photovoltaic Solar Cable 4mm2 6mm2


FAQ

Q1. What is the maximum operating temperature for PV-1 cables?‌
PV-1 cables are rated for continuous operation at up to 90°C (194°F) under normal conditions. Short-term overloads may allow temperatures up to 120°C (248°F).

Q2. Are PV-1 cables suitable for outdoor solar installations?‌
Yes, PV-1 cables are UV-resistant and designed for outdoor use in solar PV systems, provided they are properly installed with weatherproof connectors.

‌Q3. What voltage rating does PV-1 typically support?‌
Standard PV-1 cables are rated for 600V AC/DC, though some variants (e.g., PV-1 1000V) are available for higher-voltage systems.

Q4. How should PV-1 cables be routed to avoid performance issues?‌
Avoid sharp bends (minimum bend radius: 4× cable diameter) and excessive tension. Maintain spacing from heat sources and follow local electrical codes.

Q5. What safety certifications should PV-1 cables have?‌
Look for certifications like UL 4703, TÜV, or IEC 62930 to ensure compliance with international standards for solar applications.
