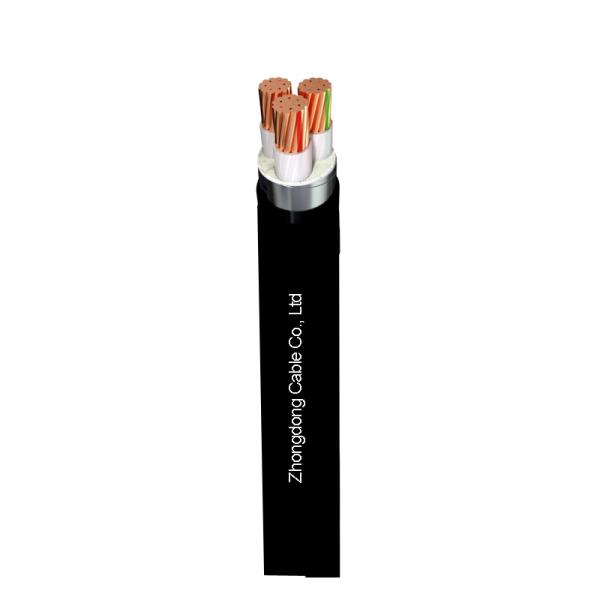

660/1100V Low Voltage Cable Vvg Vvgng Vvgng-Frls Copper Power Cable EAC Certified Cable
660/1100V Low Voltage Cable Vvg Vvgng Vvgng-Frls Copper Power Cable EAC Certified Cable
Specifications
Brand Name :
Zhongdong
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
0.6/1kV
Insulation :
PVC
Jacket :
PVC
No of Core :
3
Description

660/1100V Low Voltage Cable Vvg Vvgng Vvgng-Frls Copper Power Cable EAC Certified Cable


APPLICATION

Construction, Underground, Industrial, Power Station


CONSTRUCTION

  • Conductor: Class 2 stranded Copper conductor
  • Insulation: Cross-Linked Polyethylene(XLPE)
  • Outer sheath: Polyvinyl chloride (PVC)


660/1100V Low Voltage Cable Vvg Vvgng Vvgng-Frls Copper Power Cable EAC Certified Cable 660/1100V Low Voltage Cable Vvg Vvgng Vvgng-Frls Copper Power Cable EAC Certified Cable


CHARACTERICSTIC

  • Voltage Rating Uo/U: 0.6/1kV
  • Maximum system voltage: 12kV
  • Maximum operating temperature of conductor:+90℃
  • Operating ambient temperature: -20℃~+45℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: Single core:20D Multicire: 15D (D is the actual outer diameter of the cable)

SPECIFICATION

Specs

mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

5×1.5

1.38

0.7

1.8

12.0

197

5×2.5

1.78

0.7

1.8

13.1

261

5×4

2.25

0.7

1.8

14.4

351

5×6

2.76

0.7

1.8

15.7

463

5×10

4.0

0.7

1.8

19.0

680

5×16

5.0

0.7

1.8

21.7

992

5×25

6.1

0.9

1.8

26.0

1519

5×35

7.2

0.9

1.8

29.0

2014

5×50

8.4

1.0

2.0

33.2

2682

5×70

10.0

1.1

2.1

38.3

3777

5×95

12.0

1.1

2.3

44.1

5144

5×120

13.0

1.2

2.4

47.5

6376

5×150

14.9

1.4

2.6

54.2

7931

5×185

16.5

1.6

2.8

60.0

9834

5×240

18.4

1.7

3.0

66.1

12736

5×300

21.0

1.8

3.2

74.1

15890

5×400

23.4

2.0

3.6

82.5

20337
