EAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection Cable
EAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection Cable
Specifications
Brand Name :
Zhongdong
Certification :
ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Place of Origin :
Hebei，China
MOQ :
To be negotiated
Price :
To be negotiated
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Usage :
Access Control System
Insulation :
XLPE PE PVC
Voltage :
0.6/1kV
Length :
Customized
Conductor Material :
Copper
Packing :
Neutral Carton Packing or Customized
Description

EAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection Cable



APPLICATION & CHARACTERISTICS

  • Petrochemical processing units (reactor jackets, distillation columns)
  • Steel mill conveyor systems (blast furnace zones, rolling mills)
  • Aerospace engine compartment wiring

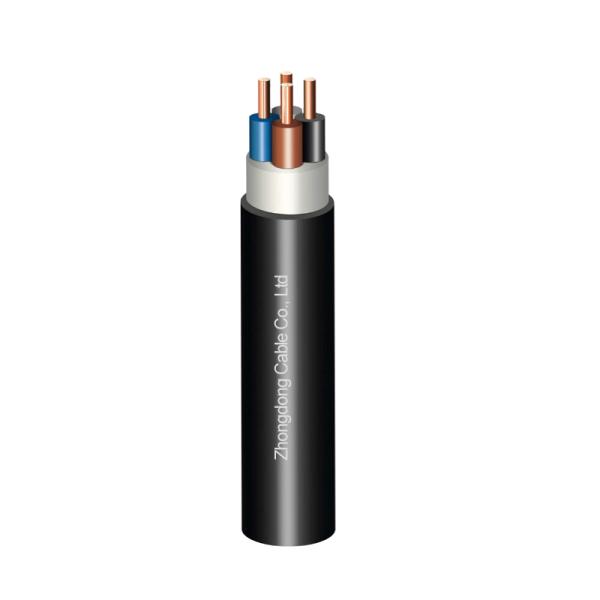

CONSTRUCTION

  • Conductor: Typically composed of high-purity copper or aluminum, annealed for flexibility and low resistance.

  • Insulation: Cross-linked polyethylene (XLPE) insulation provides excellent thermal resistance (up to 90°C) and dielectric strength.

  • Shielding: A concentric copper tape or braid shield minimizes electromagnetic interference (EMI).

  • Jacket: Thermoplastic or thermosetting material (e.g., PVC or LSZH) offers abrasion resistance and flame retardancy.


EAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection CableEAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection Cable






PARAMETERS





Dimensions-
Number of cores X
cross-section		 Design Construction of the
individual keep the
handlers safe		 The
outer
diameter		 thickness of
insulation		 shell
thickness		 Resistance to
keep the
handlers safe
at 20°C		 Weight Cu weight
of
cable


rated about rated rated max.
about
Nx mm²
nx mm mm mm mm Q/km kg/km kg/km
1×1,5 RE 1×1,38 54 138 15 1,210 15,403 43
1×4 RE 1×2,25 64 225 20 461 5,869 75
1×16 RM 7×1,70 91 500 36 115 1,464 202
1×25 RM 7×2,13 11 610 48 727 925 302
1×70 RM 19×2,17 15 1,010 84 268 341 745
1×95 RM 19×2,52 17 1,190 97 193 246 986
1×185 RM 37×2,52 23 1,620 172 991 126 1888
1×300 RM 61x2,50 28 2,060 234 601 77 2945

2×1,5 RE 1×1,38 9 138 38 1,210 15,403 120
2×2,5 RE 1×1,78 10 178 45 741 9,433 154
2×16 RM 7×1,70 16 500 106 115 1,464 563
2×25 RM 7×2,13 20 610 152 727 925 840
2×35 RM 7×2,52 22 720 179 524 667 1106
2×120 RM 37×2,03 36 1,300 423 153 195 3343
2x300 RM 61x2,50 55 2,060 939 601 77 8072

3×1,5 RE 1×1,38 9 138 44 1,210 15,403 135
3×2,5 RE 1×1,78 10 178 51 741 9,433 181
3×4 RE 1×2,25 11 225 60 461 5,869 242
3×10 RE 1×3,56 14 357 83 183 2,330 464
3×16 RM 7×1,70 17 500 122 115 1,464 697
N2XH


3×35 RM 7×2,52 23 720 208 524 667 1393
3×50 RM 19×1,83 26 830 256 387 493 1847
3×70 RM 19×2,17 31 1,010 343 268 341 2666
3×95 RM 19×2,52 36 1,190 417 193 246 3535
3×120 RM 37x2,03 38 1,300 474 153 195 4322
3×185 RM 37x2,52 48 1,620 740 991 126 6742
3×300 RM 61×2,50 59 2,060 1,079 601 77 10522



FACTORY


EAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection Cable


APPLICATION


EAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection CableEAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection CableEAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection Cable


PROJECT


EAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection Cable

PARTNERS

EAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection CableEAC Certified Fire Resistant Cable N2XH LSZH Environmental Protection Cable


FAQ


1. What is N2XH cable?

N2XH is a European standard (EN) halogen-free flame-retardant power cable, where "N" denotes non-spreading flame and "XH" indicates cross-linked polyethylene (XLPE) insulation. The J/O suffixes differentiate between rigid (Class 1) and flexible (Class 5) conductor versions.



2. Typical applications?

  • Public buildings (hospitals, hotels)

  • Industrial plants (chemical/oil facilities)

  • Transport systems (metro, railways)

3. Voltage rating & temperature range?

  • Rated voltage: 0.6/1kV

  • Operating temp: -40°C to +90°C (fixed installation)

  • Short-circuit withstand: +250°C (5 sec max)

4. Installation precautions?

  • Minimum bending radius: 12× cable diameter

  • Avoid parallel routing with high-voltage cables (keep ≥300mm spacing)

  • Use proper glanding tools for shield termination


5. Advantage over PVC cables?

  • 50% lower smoke density in fires (IEC 61034 test)

  • No corrosive halogen gases (IEC 60754-1 compliant)

6. Maintenance recommendations?

  • Annual insulation resistance test (>20MΩ·km)

  • Visual inspection for sheath damage in corrosive environments
