Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable
Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable
Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable
Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable
Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable
Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable
Specifications
Brand Name :
Zhongdong
Model Number :
KYJV22 N2XBY
Certification :
ISO,VDE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Work days
Packaging Details :
Wooden Steel Drums
Conductor Material :
Copper
Insulation Material :
XLPE
Application :
Industrial
Jacket :
PVC
Color :
Optional
cores :
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Description

Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable


APPLICATION

Multicore 450/750V armoured electrical cables with steel wire armor and PVC insulation are widely used in industrial and construction applications requiring robust mechanical protection and reliable electrical performance‌

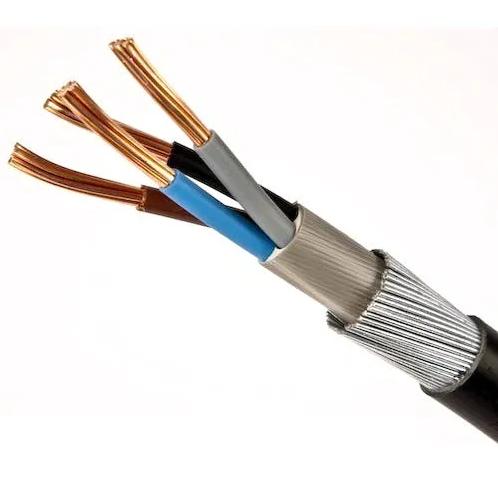

CONSTRUCTION

  • Conductor:Circular solid copper conductor(A) or circular stranded copper conductor(B)
  • Insulation: Polyvinyl chloride (PVC)
  • Filler:Polypropylene(PP) mesh filling rope
  • Armouring: Steel Wire
  • Outer sheath: Polyvinyl chloride (PVC)



Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable


CHARACTERISTIC

Voltage Rating Uo/U: 450/750V

Temperature Rating

Maximum operating temperature of conductor:+70℃

Operating ambient temperature: -15℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: 15D (D is the actual outer diameter of the cable)


Specification

No of core: 2-61 core

Nominal cross-section of conductor: 0.5-10mm2


TYPE

Specs
mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

8×0.5(B)

0.90

0.6

1.5

13.9

274.6

8×0.75

1.02

0.6

1.5

14.3

302.5

8×0.75(B)

1.10

0.6

1.5

14.5

311.4

8×1

1.16

0.6

1.5

14.8

333.5

8×1(B)

1.29

0.6

1.5

15.2

347.3

8×1.5

1.41

0.7

1.5

163

418.3

8×1.5(B)

1.56

0.7

1.5

16.9

435.3

8×2.5

1.76

0.8

1.5

18.4

557.6

8×2.5(B)

2.04

0.8

1.5

19.2

584.7

8×4

2.22

0.8

1.7

20.5

733.4

8×4(B)

2.55

0.8

1.7

21.4

766.4

8×6

2.74

0.8

1.7

22.2

931.7

8×6(B)

3.10

0.8

1.7

233

971.1

8×10

4.00

1.0

1.7

28.3

1454.2

10×0.5

0.85

0.6

1.5

14.8

310.5

10×0.5(B)

0.90

0.6

1.5

15.0

317.8

10×0.75

1.02

0.6

1.5

15.5

351.9

10×0.75(B)

1.10

0.6

1.5

15.8

362.8

10×1

1.16

0.6

1.5

16.1

390.1

10×1(B)

1.29

0.6

1.5

16.6

406.8

10×1.5

1.41

0.7

1.5

17.9

494.1

10×1.5(B)

1.56

0.7

1.5

185

514.9

10×2.5

1.76

0.8

1.7

20.8

685.3

10×2.5(B)

2.04

0.8

1.7

21.7

719.4

10×4

2.22

0.8

1.7

22.7

881.5

10×4(B)

2.55

0.8

1.7

23.7

921.9

10×6

2.74

0.8

1.7

24.7

1127.4

10×6(B)

3.10

0.8

1.7

25.9

1175.7

10×10

4.00

1.0

2.0

32.3

1816.9

12×0.5

0.85

0.6

1.5

15.2

333.5

12×0.5(B)

0.90

0.6

1.5

15.4

341.6

2×0.75

1.02

0.6

1.5

15.9

380.6

12×0.75(B)

1.10

0.6

1.5

16.2

392.7

12×1

1.16

0.6

1.5

16.5

424.5

12×1(B)

1.29

0.6

1.5

17.0

442.7

12×1.5

1.41

0.7

1.5

18.4

542.5

12×1.5(B)

1.56

0.7

1.5

19.0

565.1


ABOUT US

Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable

PACKAGE


Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable


APPLICATION

Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control CableMulticore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable

Multicore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control CableMulticore 450/750V Armoured Electrical Cable Steel Wire Armored PVC Insulated Copper Control Cable


FAQ

Q: What is the primary application of this cable?‌
A: Designed for industrial control circuits and power distribution in harsh environments, such as mining, construction, and renewable energy projects.Q:
‌Q: Why is steel wire armor used?‌
A: Provides mechanical protection against crushing, impact, and rodent damage, making it suitable for direct burial or exposed installations.
Q‌: What conductor material is used?‌
A: High-purity copper ensures low resistance and reliable conductivity for stable signal/power transmission.
Q: ‌Is the PVC insulation flame-retardant?‌
A: Yes, it meets flame retardancy standards (e.g., IEC 60332) and resists chemicals, oils, and moisture.
Q: ‌How many cores are available?‌
A: Multicore variants (e.g., 4-37 cores) allow complex wiring configurations for automation systems.
Q: ‌Is it suitable for underground installation?‌
A: Yes, the steel armor and PVC sheath protect against soil corrosion and external mechanical stress.
‌Q: What distinguishes it from non-armored cables?‌
A: Enhanced durability and safety in demanding environments, though slightly heavier than unarmored alternatives.
