ACAR Bare Conductor Aluminum Conductor Aluminum Alloy Reinforced Bare Overhead Conductors
ACAR Bare Conductor Aluminum Conductor Aluminum Alloy Reinforced Bare Overhead Conductors
Specifications
Brand Name :
Zhongdong
Model Number :
AAC
Certification :
CCC,IEC,VDE,TUV,ISO
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
500KM/Week
Delivery Time :
7-30 days based on different Qty
Packaging Details :
Wooden Drum
Range Of Application :
Overhead Transmission, Overhead Ground
Material :
ACSR
Drum Packing :
Steel Wooden Drum
Product Name :
ACSR Rabbit Conductor Dog Conductor
Type :
BARE conductor
Standard :
IEC, BS, ICEA, ASTM, DIN
Description

ACAR Bare Conductor Aluminum Conductor Aluminum Alloy Reinforced Bare Overhead Conductors


APPLICATION

ACAR (Aluminum Conductor Alloy Reinforced) bare conductors are widely used in:

  • ‌High-voltage transmission lines‌ (e.g., overhead power grids) due to their lightweight and cost-effectiveness compared to copper‌.
  • ‌Rural electrification projects‌ where aluminum’s lower material cost offsets installation challenges‌.
  • ‌Renewable energy systems‌ (e.g., wind/solar farms) for long-distance power distribution‌


CONSUTRUCTION

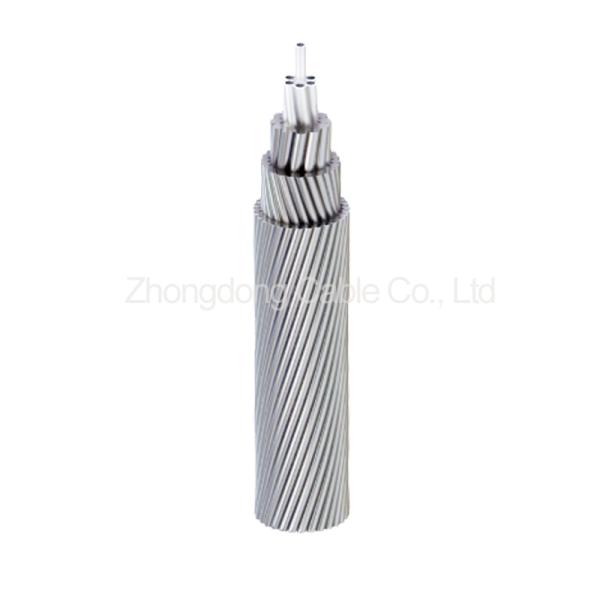

ACAR (Aluminum Conductor Alloy Reinforced) bare conductor is a composite stranded wire primarily composed of ‌high-purity aluminum alloy strands‌ and ‌reinforcing steel core wires‌. The structure features:

  • ‌Outer Layer‌: Multiple layers of aluminum alloy strands (typically 6101 or 6201 alloy) arranged in concentric layers, providing high conductivity and corrosion resistance.
  • ‌Core‌: A central steel core (usually galvanized steel) for mechanical strength, ensuring tensile resistance against wind and ice loads.
  • ‌Layering‌: The aluminum strands are helically wound around the steel core with a ‌specific lay length ratio‌ (e.g., 6:1 or 8:1) to balance flexibility and structural integrity.
ACAR Bare Conductor Aluminum Conductor Aluminum Alloy Reinforced Bare Overhead Conductors


CHARACTERISTIC

  • ‌Conductivity‌: Aluminum alloy strands achieve ‌53-61% IACS‌ (International Annealed Copper Standard), optimized for power transmission efficiency.
  • ‌Tensile Strength‌: The steel core contributes to a ‌minimum breaking load‌ of 20-40% higher than pure aluminum conductors of the same diameter.
  • ‌Diameter Ratio‌: The steel core diameter is typically ‌1/3 to 1/2‌ of the total conductor diameter, ensuring optimal weight-to-strength balance.


SPECIFICATION

Code
number		 Diameter Number of
wires		 Norminal cross sectional area Liner
mass		 Rated
strength		 Max Resistance at
20℃
mm² Wre(mm) Conductor(mm) Al Alloy Al(mm²) Alloy(mm²) Total(mm²) Kglkm kn Q/km
16 1.76 5.28 4 3 9.73 7.3 17 46.6 3.85 1.7896
25 2.2 6.6 4 3 15.2 11.4 26.6 72.8 5.93 1.1453
40 2.78 8.35 4 3 24.3 18.3 42.6 116.5 9.25 0.7158
63 3.49 10.5 4 3 38.3 28.7 67.1 183.5 14.38 0.4545
100 4.4 13.2 4 3 60.8 45.6 106 291.2 22.52 0.2863
125 2.97 14.9 12 7 83.3 48.6 132 362.7 27.79 0.2302
160 3.36 16.8 12 7 107 62.2 169 464.2 35.04 0.1798
200 3.76 18.8 12 7 133 77.8 211 580.3 43.13 0.1439
250 4.21 21 12 7 167 97.2 264 725.3 53.92 0.1151
250 3.04 21.3 18 19 131 138 269 742.2 60.39 0.1154
315 3.34 23.4 30 7 263 613 324 892.6 60.52 0.0916
315 3.42 23.9 18 19 165 174 339 935.1 76.09 0.0916
400 3.76 26.3 30 7 334 778 411 1133.5 75.19 0.0721
400 3.85 27 18 19 210 221 431 1187.5 95.58 0.0721
450 3.99 27.9 30 7 375 876 463 1275.2 84.59 0.0641
450 4.08 28.6 18 19 236 249 485 1335.9 107.52 0.0641
500 4.31 30.1 18 19 262 277 539 1484.3 119.47 0.0577
560 4.45 31.2 30 7 467 109 576 1586.9 105.26 0.0515
560 3.45 31 54 7 504 654 570 1571.9 101.54 0.0516
630 3.71 33.4 42 19 454 205 660 1820 130.25 0.0458
630 3.79 34.1 24 37 271 417 688 1897.5 160.19 0.0458
710 3.94 35.5 42 19 512 232 743 2051.2 146.78 0.0407
710 4.02 36.2 24 37 305 470 775 2138.4 180.53 0.0407
800 4.18 37.6 42 19 577 261 838 2311.2 165.39 0.0361
800 4.27 38.4 24 37 344 530 873 2409.5 203.41 0.0361
900 4.43 39.9 42 19 649 294 942 2600.1 186.06 0.0321
900 3.66 40.2 54 37 567 388 955 2638.4 198.54 0.0321
1000 3.8 41.8 72 19 816 215 1032 2849.1 190.94 0.0289
1000 3.85 42.4 54 37 630 432 1061 2931.6 221.71 0.0289
