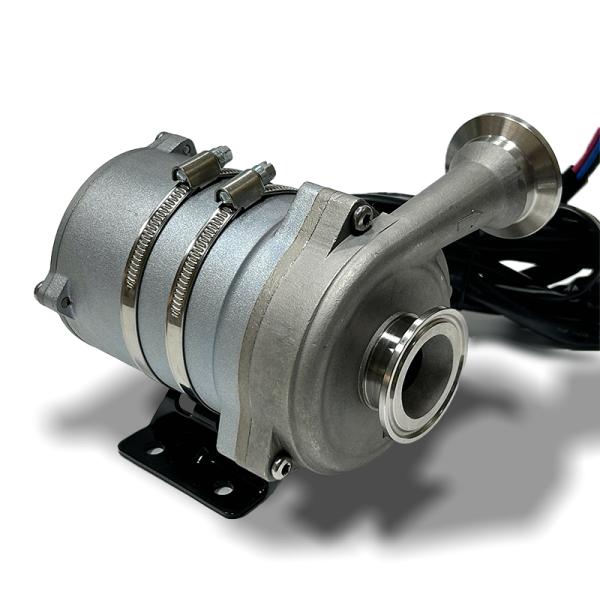

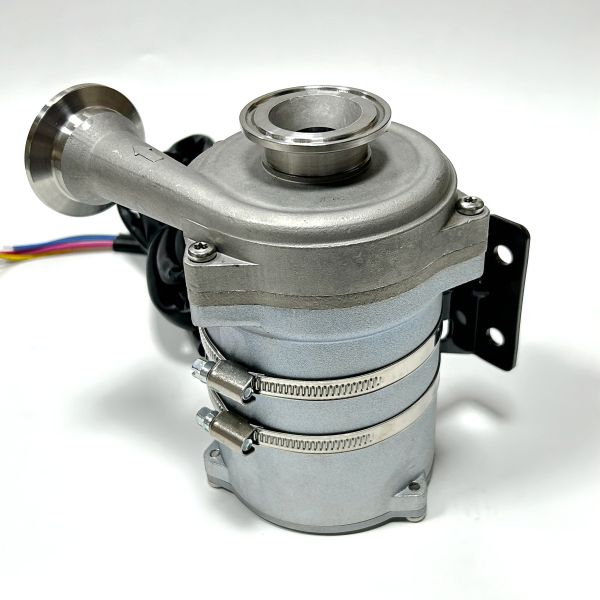

IP68 400W Brushless 24V Stainless Steel Water Pump For BMS In Energy Storage
IP68 400W Brushless 24V Stainless Steel Water Pump For BMS In Energy Storage
IP68 400W Brushless 24V Stainless Steel Water Pump For BMS In Energy Storage
IP68 400W Brushless 24V Stainless Steel Water Pump For BMS In Energy Storage
Specifications
Brand Name :
Bextreme Shell
Model Number :
OWP-BL400H-D2-21
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
D/P,T/T
Supply Ability :
1000pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Cartons + PE
Product Name :
Brushless SS304 Electric Coolant Pump
Pressurerating :
Rated 2 bar
Power :
400W
Motortype :
Brushless Motor
Protectionclass :
IP68
Voltage :
DC 18-32V(24V)
Operatingtemperaturerange :
-40°C to 85°C
Pumptype :
Coolant Pump
Sealtype :
Canned Pump
Material :
Stainless Steel 304
Application :
Cooling systems in machinery and equipment
Description
Stainless Steel Coolant Pump OWP - BL400H - D2 - 21: A Top Choice for Energy Storage and Beyond

The OWP - BL400H - D2 - 21 stainless steel coolant pump is a high - performance solution designed to meet the demanding cooling needs of various industries, with a particular focus on energy storage cabinets and lithium - ion energy storage solutions. Its wide application range also includes data center server liquid cooling, AI computing center liquid cooling equipment, small marine engine/battery cooling, copper - containing component liquid cooling, electric vehicle charging/swapping station liquid cooling, and off - grid area power generation energy storage thermal management.

In energy storage scenarios, this pump offers significant advantages. Its long working life of over 20,000 hours ensures stable operation for extended periods, reducing maintenance costs and downtime for energy storage systems. The IP68 protection rating makes it highly resistant to dust and water, adapting to the harsh operating environments often found in energy storage facilities. With multiple protection functions (reverse connection protection, no - load protection, locked - rotor protection, over - voltage and under - voltage protection), it effectively prevents pump damage caused by abnormal conditions, enhancing the safety and reliability of energy storage cooling systems. Additionally, the PWM speed regulation feature allows for precise control of cooling capacity, matching the actual heat generation of energy storage equipment and improving energy efficiency.

The following is the specification parameter table of the OWP - BL400H - D2 - 21 stainless steel coolant pump:

Parameter Specification
Voltage Range DC18V～32V; Rated Voltage: DC24V
No - load Maximum Speed 5600rpm±30rpm (with appropriate antifreeze, dry grinding prohibited)
Rated Power 400W±5%
Performance Head ≥20m at a flow rate of 3000L/h
Working Life ＞20000h
Protection Rating IP68
Operating Environment Temperature: -40℃～85℃; Relative Humidity: ≤90%
Working Medium Coolant; Medium Temperature: -40℃～85℃
Protection Functions Reverse connection protection, no - load protection, locked - rotor protection, over - voltage and under - voltage protection
Air Tightness Test Pressure: 0.35Mpa; Leakage Value: ＜0.8mL/min
Noise ≤60dB(A) at 1m from the pump (under load)
Material (Water - Contact Part) Stainless Steel
Speed Regulation PWM Speed Regulation
Inlet/Outlet Flange Quick - Connect Design
Error Feedback High - Low Level Signal

Flow VS Head pressure Curve

IP68 400W Brushless 24V Stainless Steel Water Pump For BMS In Energy Storage

PWM and Fault Feedback Chart

IP68 400W Brushless 24V Stainless Steel Water Pump For BMS In Energy Storage

IP68 400W Brushless 24V Stainless Steel Water Pump For BMS In Energy Storage

Dimensions

IP68 400W Brushless 24V Stainless Steel Water Pump For BMS In Energy Storage

IP68 400W Brushless 24V Stainless Steel Water Pump For BMS In Energy Storage
