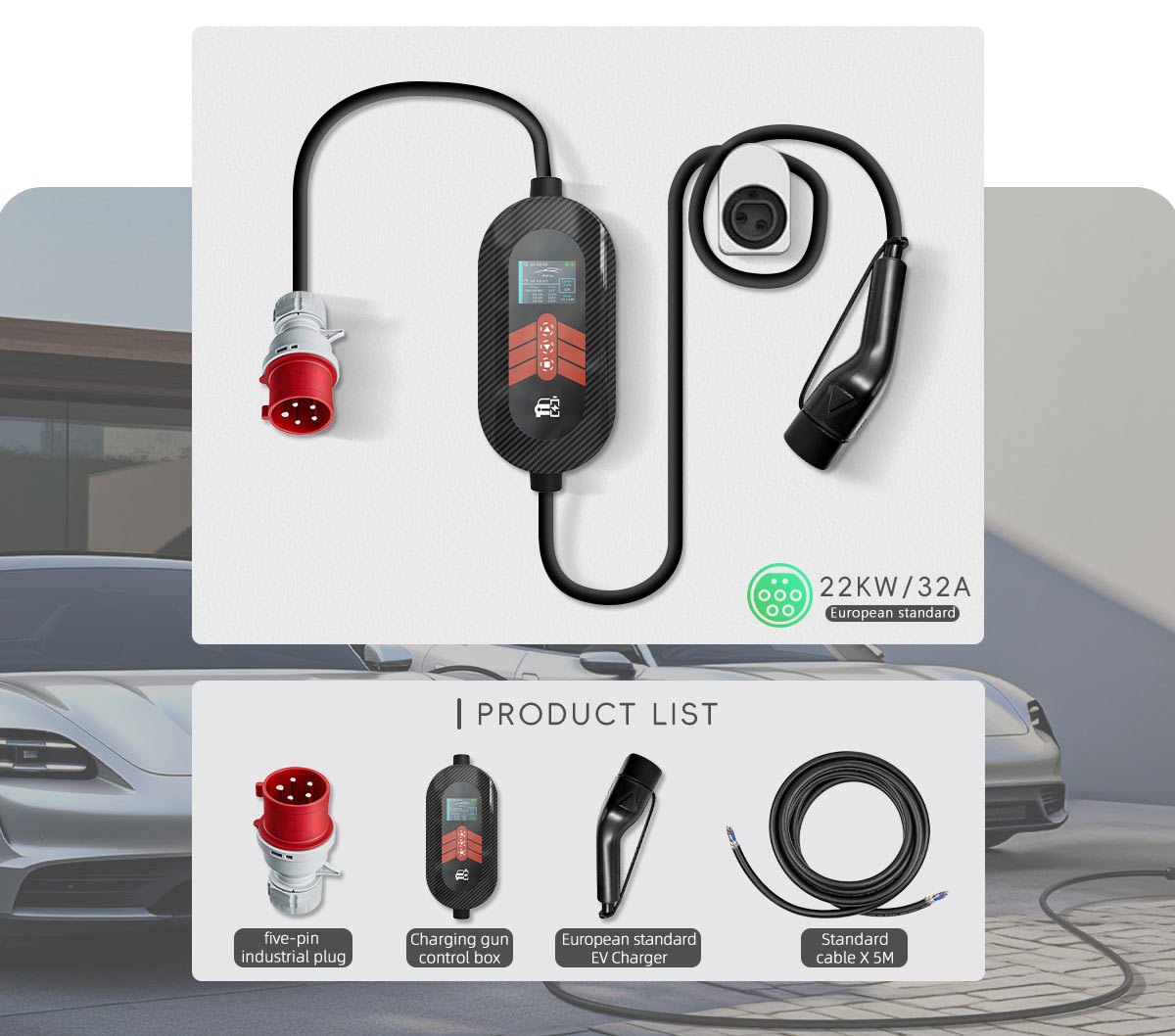

22kW Portable AC EV Charger

Powerful, Intelligent and Newly Designed Portable Charging Solution for Electric Vehicles

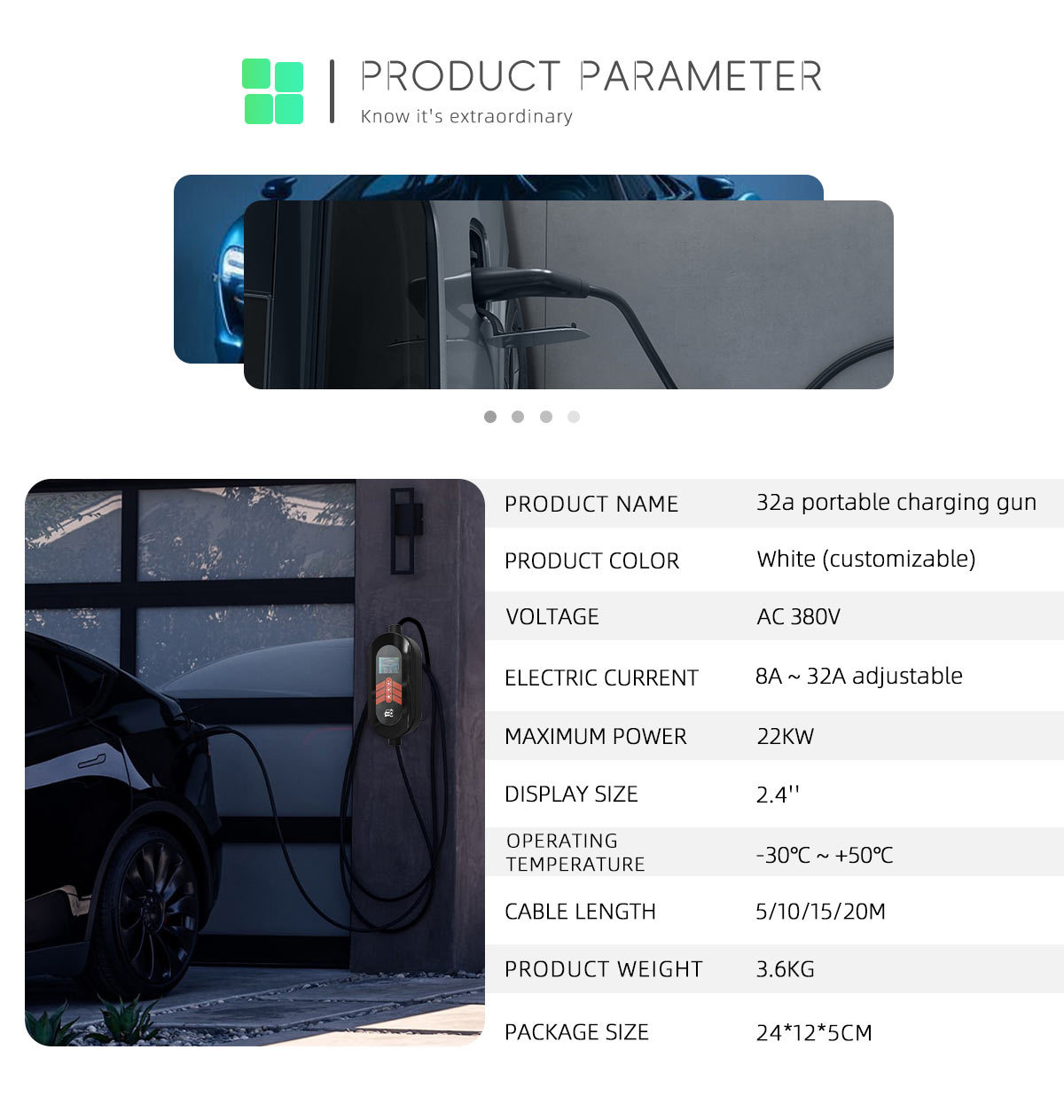

1. High-Power 22kW AC Charging

The 22kW Portable AC EV Charger supports three-phase charging at up to 32A, providing significantly faster charging than conventional 3.5kW and 7kW AC chargers. It is ideal for homes, commercial locations, fleets, workshops and temporary charging applications.

2. New Futuristic Portable Design

Featuring a newly developed compact body with a modern technological appearance, this charger combines the charging control unit, intelligent display and safety protection system into one portable solution. Its lightweight and space-saving design makes it easy to carry and store in the vehicle.

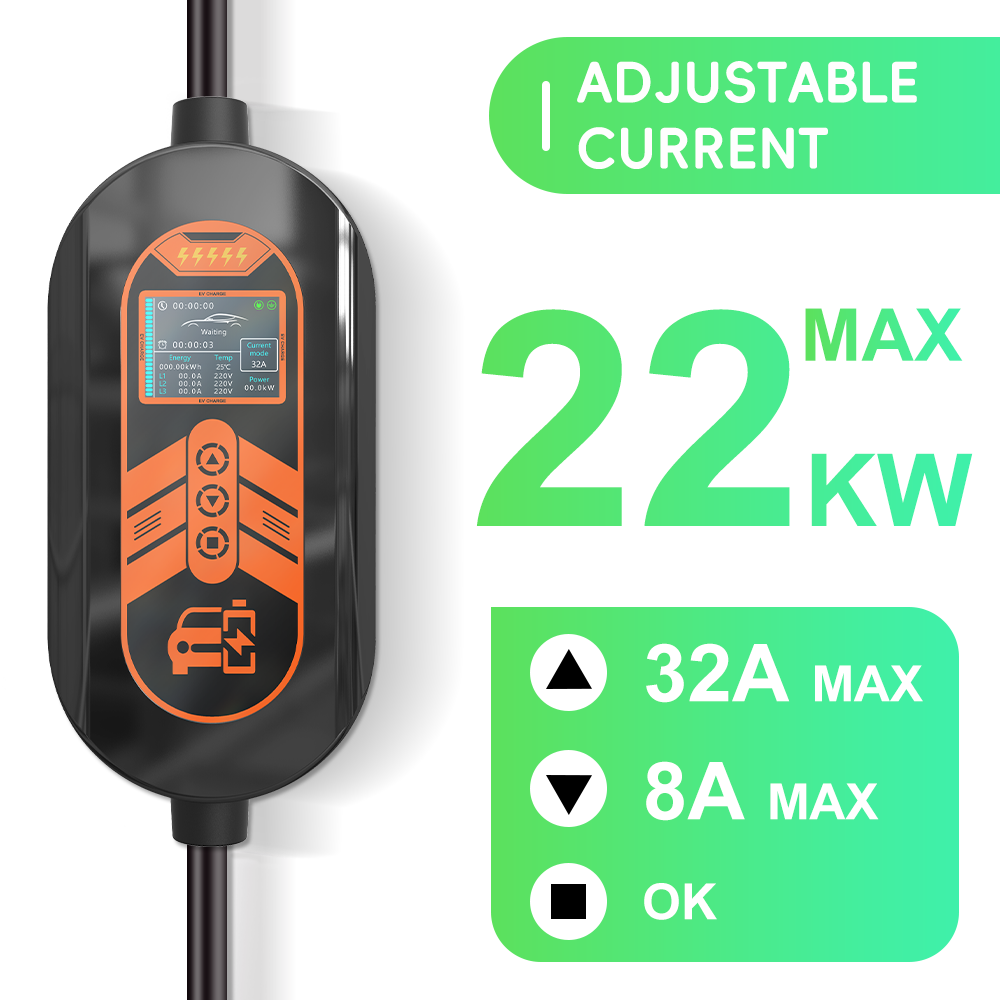

3. Adjustable Charging Current

The charging current can be adjusted according to the available electrical supply and vehicle requirements. Multiple current options help prevent circuit overload while giving users greater control over charging speed and energy consumption.

Available current levels include:

8A / 9A / 10A ...You can adjust the current in 1A increments.

4. Intelligent LCD Display

The high-definition LCD screen provides real-time charging information, including:

• Charging voltage
• Charging current
• Charging power
• Charging time
• Energy consumption
• Temperature
• Charging status
• Fault information

This allows users to monitor the entire charging process easily and safely.

5. Smart APP Control

Optional Wi-Fi or Bluetooth APP control allows users to monitor charging remotely, adjust the charging current, schedule charging sessions and review charging records. Scheduled charging can help users take advantage of off-peak electricity rates.

6. Wide Vehicle Compatibility

The charger is compatible with a wide range of electric and plug-in hybrid vehicles. Different vehicle-side connectors can be supplied according to market requirements, including:

• Type 2
• Type 1 / SAE J1772
• GB/T
• Tesla-compatible connector

Vehicle compatibility and maximum charging power should always be confirmed before ordering.

7. Multiple Safety Protection Functions

The intelligent protection system continuously monitors the charging process and can automatically stop charging if an abnormal condition is detected.

Protection functions may include:

• Overvoltage protection
• Undervoltage protection
• Overcurrent protection
• Leakage protection
• Overtemperature protection
• Grounding protection
• Short-circuit protection
• Lightning and surge protection
• CP communication protection

8. Suitable for Multiple Charging Scenarios

The portable design makes this charger suitable for:

• Residential charging
• Commercial parking areas
• EV dealerships
• Vehicle repair workshops
• Company fleets
• Hotels and apartments
• Temporary charging locations
• Emergency backup charging

Frequently Asked Questions

1. What is a 22kW Portable AC EV Charger?

A 22kW Portable AC EV Charger is a high-power three-phase charging device that supplies AC electricity to an electric vehicle through its onboard charger. It offers a convenient balance between fast charging performance and portability.

2. What electrical supply is required for 22kW charging?

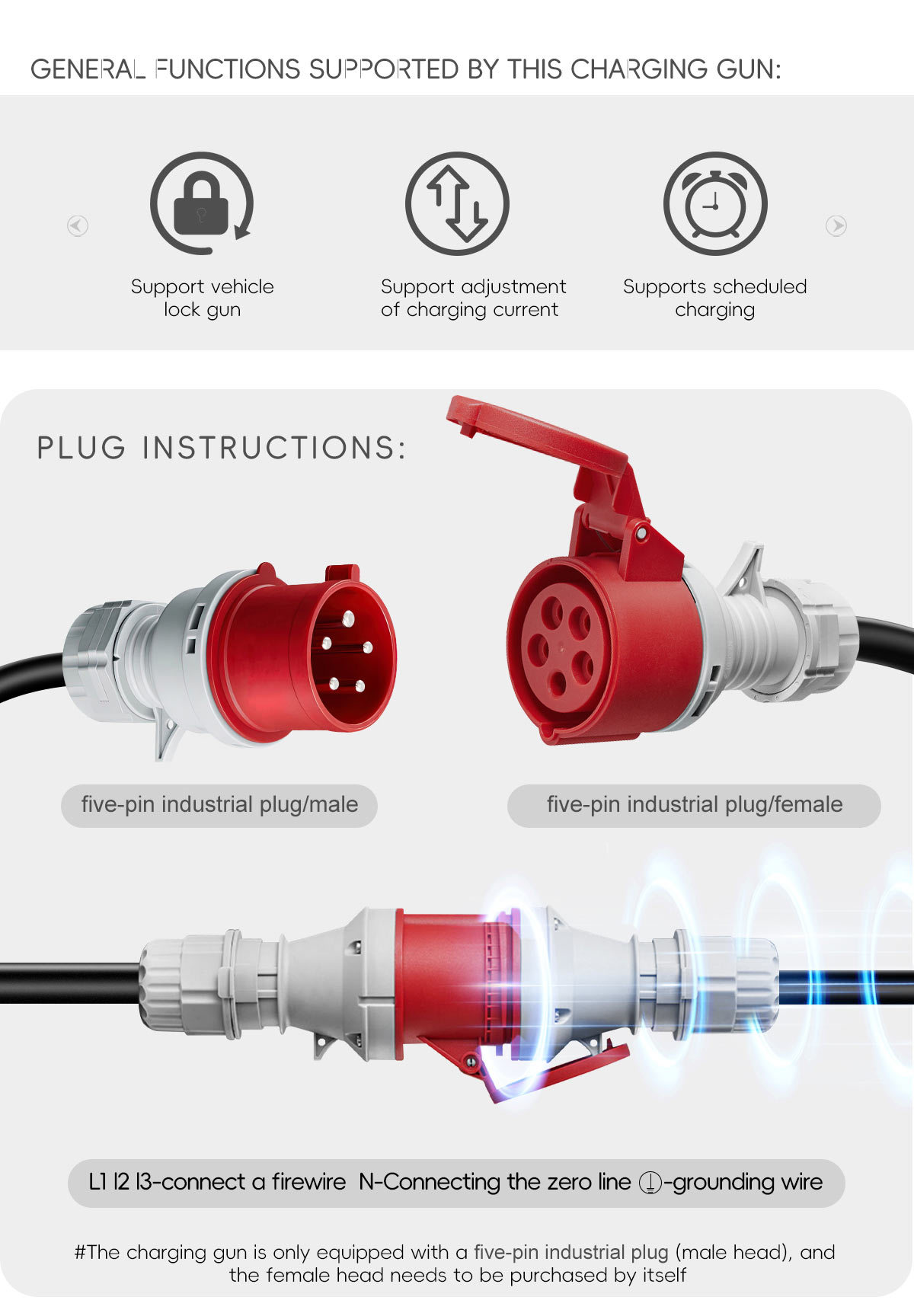

To achieve the full 22kW output, the charger normally requires a three-phase 380–415V electrical supply capable of providing 32A per phase. The circuit should be inspected and installed by a qualified electrician.

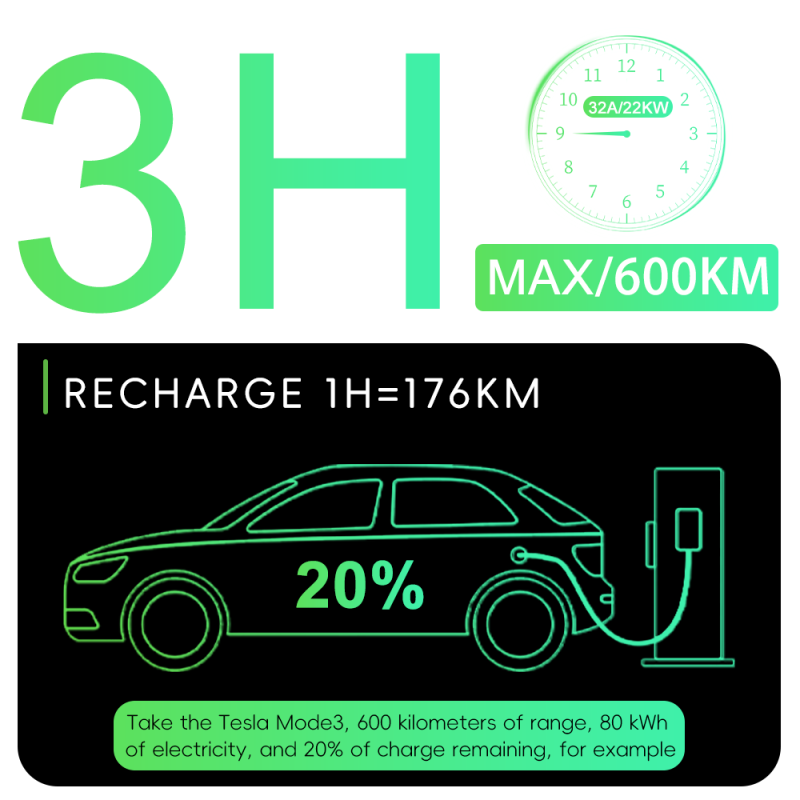

3. Is this charger faster than a 7kW charger?

Yes. For vehicles that support 22kW AC charging, it can be approximately three times faster than a 7kW single-phase charger. However, the actual charging speed depends on the vehicle, battery status and electrical supply.

4. Can plug-in hybrid vehicles use this charger?

Yes. Plug-in hybrid vehicles with a compatible charging connector can use it. However, many PHEVs have onboard chargers limited to 3.7kW or 7kW, so they may not use the full 22kW capacity.
